FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

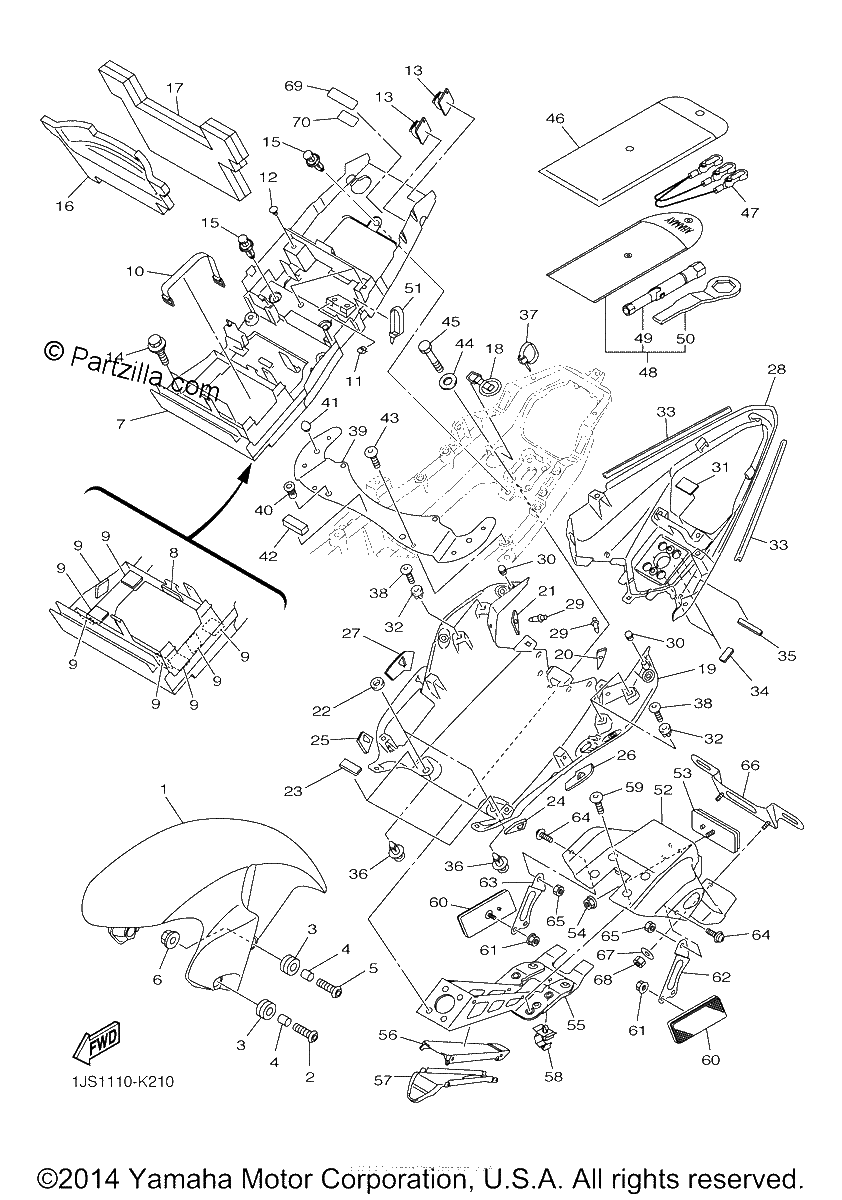

Diagrama de FENDER

Repuestos

#0
2C0-21511-00-P2
FENDER, FRONT | Use for Color Black Metallic X ( SMX / 0903 )
$208.72¢104 363
1
#0
13S-21611-00-P3
FENDER, REAR | Use for Color Black Metallic X ( SMX / 0903 )
$198.95¢99 475
1
#1
2C0-21511-00-P0
FENDER, FRONT
$145.68¢72 841
1
#2
90111-06043-00
BOLT, HEX. SOCKET BUTTON
$3.65¢1 823
1
#3
90480-14003-00
GROMMET
$6.83¢3 415
1
#4
90387-06057-00
COLLAR
$6.75¢3 375
1
#5
90111-06030-00
BOLT, HEX. SOCKET BUTTON
$3.66¢1 829
1
#6
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#7
13S-8212B-00-00
BOX, BATTERY 1
No Disponible
1
#8
51Y-21639-00-00
DAMPER 2
$5.93¢2 967
1
#9
13S-21649-00-00
DAMPER
$7.23¢3 617
1
#10
133-82131-00-00
BAND, BATTERY
$23.89¢11 943
1
#11
90183-04039-00
NUT, SPRING
$6.46¢3 231
1
#12
90338-07180-00
PLUG
$6.22¢3 111
1
#13
90464-13185-00
CLAMP
$4.22¢2 110
1
#14
90109-06171-00
BOLT
$7.10¢3 548
1
#15
90269-07010-00
RIVET
$4.09¢2 047
1
#16
13S-21652-00-00
PROTECTOR
$28.45¢14 225
1
#17
13S-24140-00-00
DAMPER PLATE ASSY
$23.87¢11 937
1
#18
13S-21376-00-00
BAND, TOOL
$5.37¢2 685
1
#19
13S-21611-00-P0
Fender, rear
$180.03¢90 016
1
#20
13S-2172P-00-00
SEAT
$12.59¢6 296
1
#21
13S-2173P-00-00
SEAT 2
$12.65¢6 325
1
#22
13S-21735-00-00
SEAL 2
$8.28¢4 140
1
#23
4D9-21717-00-00
DAMPER
$1.01¢506
1
#24
13S-21669-00-00
SEAL
$9.11¢4 554
1
#25
13S-216A2-00-00
SEAL, 2
$9.07¢4 537
1
#26
13S-216A3-00-00
SEAL, 3
$9.23¢4 617
1
#27
13S-216A4-00-00
SEAL, 4
$9.33¢4 663
1
#28
13S-2162R-00-P3
FENDER 2 | Use for Color Black Metallic X ( SMX / 0903 )
$206.36¢103 178
1
#29
90269-06001-00
RIVET
$5.93¢2 967
1
#30
90338-07180-00
PLUG
$6.22¢3 111
1
#31
5GM-27445-00-00
PLATE 1
$7.31¢3 657
1
#32
90480-08005-00
GROMMET
$6.88¢3 439
1
#33
13S-21732-00-00
SEAL 1
$17.82¢8 913
1
#34
13S-21575-00-00
SEAL 1
$7.70¢3 852
1
#35
13S-2173N-00-00
SEAL 4
$9.48¢4 738
1
#36
90269-07010-00
RIVET
$4.09¢2 047
1
#37
90464-15195-00
CLAMP
$3.04¢1 518
1
#38
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$6.76¢3 381
1
#39
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#39
13S-21131-00-00
BRACKET
$81.78¢40 888
1
#40
90179-06010-00
NUT
$4.84¢2 421
1
#41
4G0-21639-00-00
DAMPER 2
$6.36¢3 180
1
#42
5YT-24665-00-00
DAMPER
$6.99¢3 496
1
#43
92012-06016-00
BOLT, BUTTON HEAD
$6.82¢3 410
1
#44
13S-21615-00-00
WASHER, SPECIAL 1
$14.78¢7 389
1
#45
97017-06025-00
BOLT,HEXAGON (replaces 97007-06025-00)
$3.27¢1 633
1
#46
2C0-28100-00-00
TOOL KIT
$60.28¢30 141
1
#47
2C0-21370-00-00
HELMET HANGER ASSY
$34.78¢17 388
1
#48
2C0-28110-00-00
TOOL KIT, 2
$43.49¢21 746
1
#49
4XV-2814F-00-00
BOX, SPARK PLUG
$37.69¢18 843
1
#50
4FM-28135-00-00
SPANNER, SPECIAL
$16.64¢8 320
1
#51
90465-13M11-00
CLAMP
$6.27¢3 134
1
#52
2C0-21629-11-00
GUARD, MUD
$34.78¢17 388
1
#54
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#55
13S-21640-00-00
REAR STAY COMP.
$181.33¢90 666
1
#56
2C0-2163A-00-00
COVER, REAR FENDER 1
$11.74¢5 871
1
#57
2C0-2163E-00-00
COVER, REAR FENDER 2
$11.74¢5 871
1
#58
90464-14228-00
CLAMP
$4.86¢2 432
1
#59
90109-06182-00
BOLT
$12.62¢6 308
1
#60
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#61
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
#62
2C0-21688-00-00
BRACKET, REAR STAY
$11.81¢5 905
1
#63
2C0-21689-00-00
BRACKET, REAR STAY 2
$11.53¢5 767
1
#64
90159-06011-00
SCREW, WITH WASHER
$6.80¢3 398
1
#65
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#66
5MT-84751-00-00
BRACKET, LICENSE
$26.96¢13 478
1
#67
90201-06057-00
WASHER, PLATE
$4.13¢2 064
1
#68
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#69
3JJ-28446-A1-00
LABEL, CAUTION
$4.54¢2 271
1
#70
3TB-24877-A0-00
LABEL, CAUTION
$4.90¢2 449
1
