HANDLE SWITCH LEVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

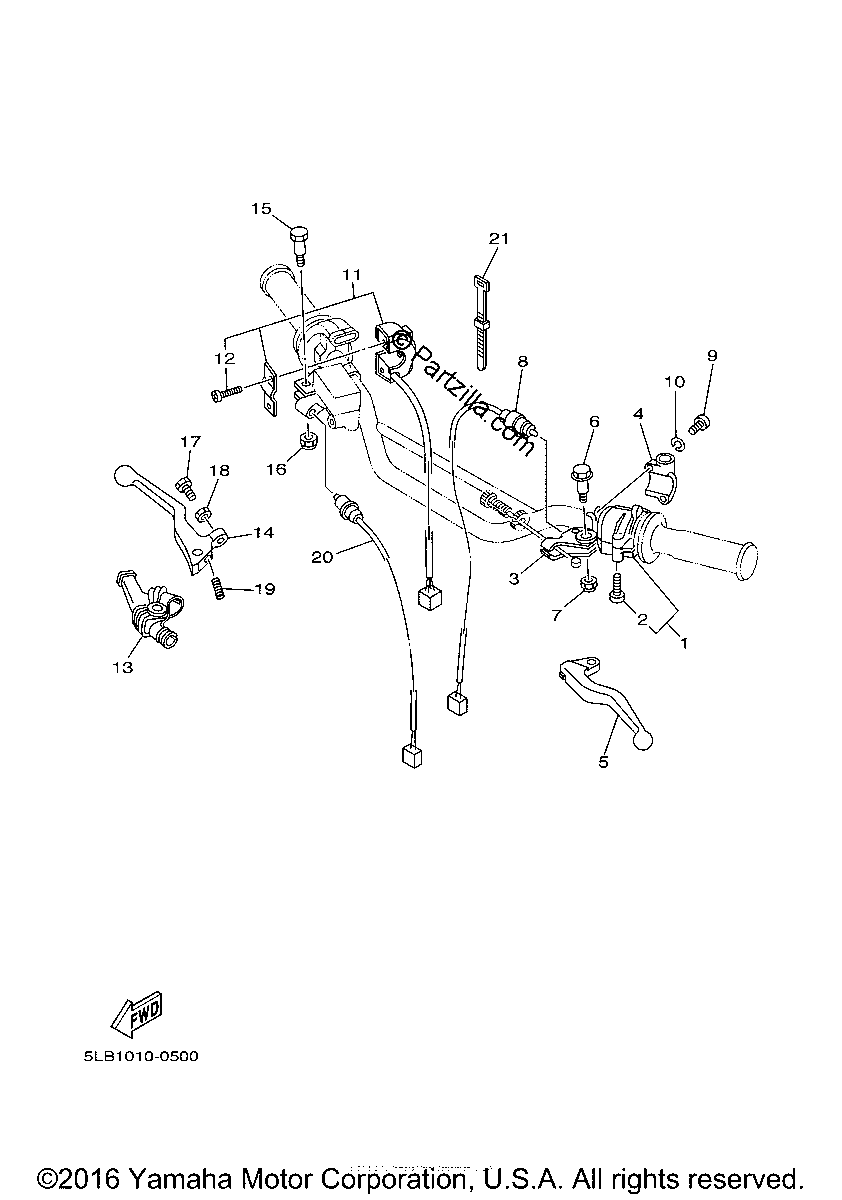

Diagrama de HANDLE SWITCH LEVER

Repuestos

#1
4CS-83973-00-00
SWITCH, HANDLE 3
$236.85¢118 425
1
#2
98517-05030-00
SCREW, PAN HEAD (replaces 98507-05030-00)
$9.45¢4 725
1
#3
1LN-82911-00-00
HOLDER, LEVER 1
$42.18¢21 088
1
#4
33G-82913-01-00
HOLDER,LEVER LWR 1
$19.80¢9 900
1
#5
4GY-83912-00-00
LEVER 1
$30.72¢15 362
1
#6
90109-06799-00
BOLT
$5.40¢2 700
1
#7
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#8
4GY-82917-01-00
SWITCH
$47.27¢23 638
1
#9
98517-05020-00
SCREW, PAN HEAD (replaces 98507-05020-00)
$1.61¢806
1
#10
92907-05100-00
WASHER, SPRING
$7.35¢3 675
1
#11
5LB-83975-01-00
SWITCH, HANDLE 2
$97.21¢48 606
1
#12
98507-05018-00
SCREW,PANHEAD(4MY
$2.95¢1 475
1
#13
1T5-26372-00-00
COVER,HANDLE LEVER
$21.26¢10 631
1
#14
55Y-83922-02-00
LEVER 2
$41.28¢20 638
1
#15
90109-06577-00
BOLT
$6.41¢3 206
1
#16
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#17
90149-06131-00
SCREW
$7.34¢3 669
1
#18
90170-06010-00
NUT
$7.34¢3 669
1
#19
90501-10312-00
SPRING,COMPRESSION
$7.34¢3 669
1
#20
2UJ-83980-00-00
FRONT STOP SWITCH ASSY
$47.09¢23 544
1
#21
437-83936-01-00
BAND,SWITCH CORD
$5.70¢2 850
1
