OPTIONAL KICK STARTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

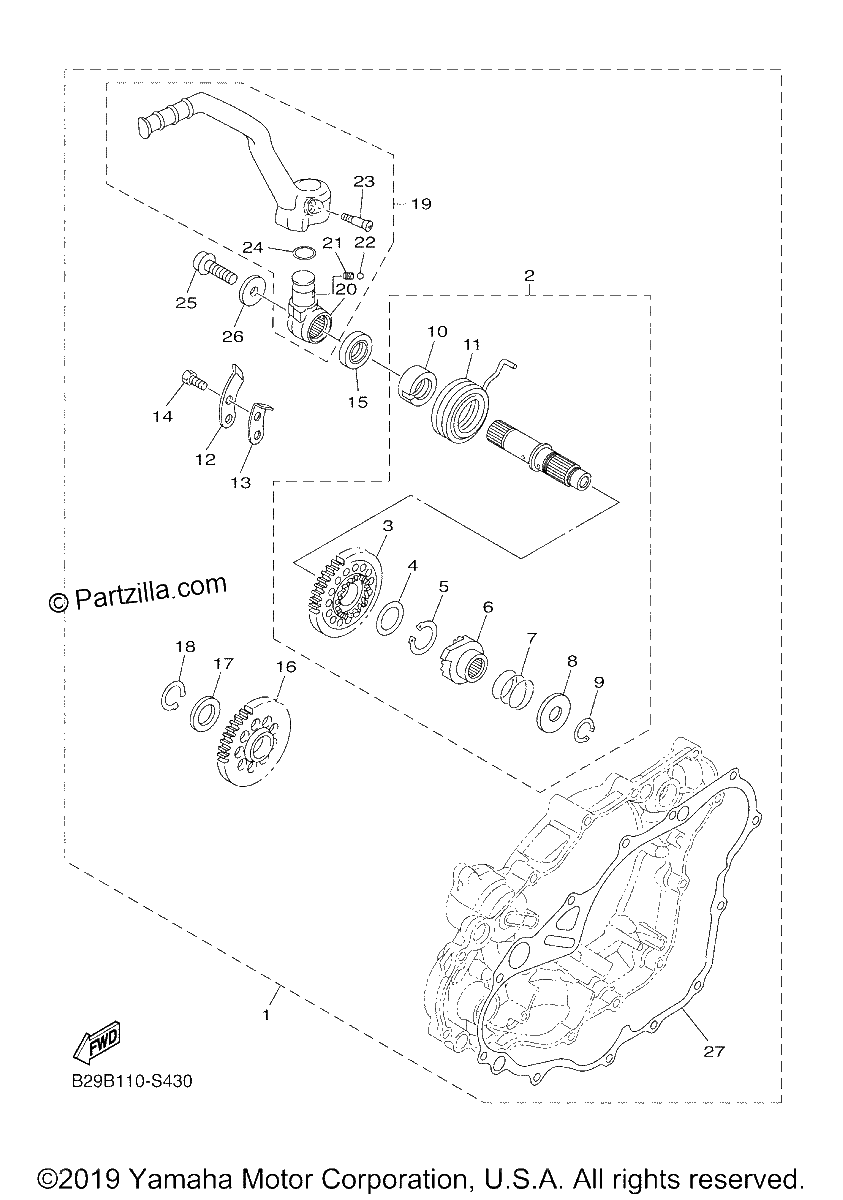

Diagrama de OPTIONAL KICK STARTER

Repuestos

#1
B29-15602-00-00
KICK STARTER KIT
$549.81¢274 906
1
#2
1SM-15601-00-00
KICK SHAFT ASSY
$251.63¢125 813
1
#3
1SM-15641-00-00
GEAR, KICK
$89.30¢44 650
1
#4
90201-20685-00
WASHER,PLATE
$7.01¢3 506
1
#5
93410-20038-00
CIRCLIP
$3.11¢1 556
1
#6
2S2-15671-00-00
WHEEL, RATCHET
$67.06¢33 531
1
#7
90501-160A2-00
Spring, Compression
$4.40¢2 200
1
#8
90201-167P7-00
WASHER, plate
$10.00¢5 000
1
#9
99009-16400-00
CIRCLIP,S-TYPE
$6.14¢3 069
1
#10
5NL-15664-00-00
Guide, Spring
$14.56¢7 281
1
#11
90508-30743-00
SPRING,TORSION
$19.85¢9 925
1
#12
2NX-15674-00-00
GUIDE,RATCHET WHL (replaces 214-15674-00-00)
$10.72¢5 363
1
#13
2NX-15668-00-00
Stopper
$24.94¢12 469
1
#14
97D95-06016-00
BOLT (GA1) (replaces 90101-06044-00)
$2.26¢1 131
1
#15
93102-18278-00
OIL SEAL,SD-TYPE
$12.42¢6 212
1
#16
1SM-15651-00-00
GEAR, KICK IDLE
$74.40¢37 200
1
#17
90201-177G4-00
WASHER,PLATE
$8.09¢4 044
1
#18
99009-17400-00
Circlip
$4.65¢2 325
1
#19
1SM-15620-00-00
Kick Crank Assy
$260.51¢130 256
1
#20
1SM-15621-00-00
BOSS, KICK CRANK
$78.71¢39 356
1
#21
90501-147A5-00
Spring, Compression
$7.34¢3 669
1
#22
93507-32031-00
BALL
$4.65¢2 325
1
#23
90151-06045-00
SCREW, COUNTERSUNK
$7.34¢3 669
1
#24
93210-17570-00
O-Ring
$6.99¢3 494
1
#25
90110-08052-00
BOLT, HEXAGON SOCKET HEAD (replaces 90110-08051-00)
$7.46¢3 731
1
#26
90201-08048-00
WASHER, PLATE
$6.85¢3 425
1
#27
1SM-15462-00-00
GASKET, CRANKCASE COVER 3
$26.29¢13 144
1
