FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

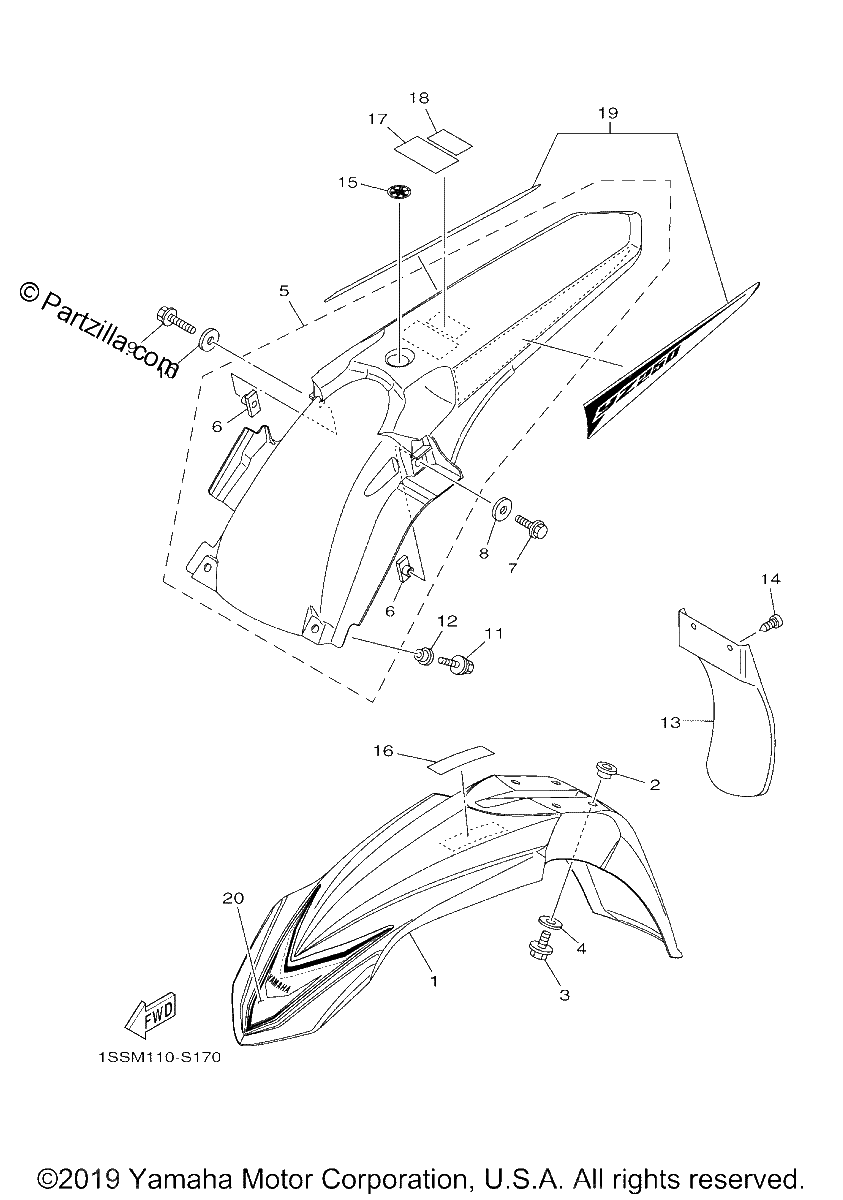

Diagrama de FENDER

Repuestos

#1
17D-21511-50-00
FENDER, FRONT
$33.09¢16 544
1
#2
90387-06259-00
Collar
$7.35¢3 675
1
#3
90105-06127-00
BOLT, FLANGE
$7.34¢3 669
1
#4
90201-06108-00
WASHER, plate
$4.40¢2 200
1
#5
1SS-21610-00-00
REAR FENDER COMP.
$40.65¢20 325
1
#6
5XE-21635-10-00
NUT, REAR FENDER
$15.11¢7 556
1
#7
90105-06100-00
BOLT, FLANGE (replaces 90105-06099-00)
$6.64¢3 319
1
#8
90201-06032-00
WASHER, plate
$7.35¢3 675
1
#9
90105-06102-00
BOLT, FLANGE
$3.89¢1 944
1
#10
90201-06033-00
WASHER, PLATE
$3.26¢1 631
1
#11
90119-06149-00
BOLT, WITH WASHER
$7.34¢3 669
1
#12
90387-06009-00
COLLAR
$9.41¢4 706
1
#13
5TA-21642-00-00
GUARD, FLAP
$41.60¢20 800
1
#14
97702-60016-00
SCREW, TAPPING
$1.46¢731
1
#15
5FK-2175C-31-00
TUNING FORK MARK (replaces 5FK-2175C-30-00)
$4.31¢2 156
1
#16
3XJ-2415E-A1-00
LABEL, CAUTION
$4.97¢2 488
1
#17
5PA-2118K-00-00
LABEL, CAUTION
$7.16¢3 581
1
#18
17D-2812P-00-00
PLATE, COMPETITION USA
$7.28¢3 638
1
#19
1SS-2165A-00-00
GRAPHIC SET,REAR FENDER
$42.24¢21 119
1
#20
B11-21569-00-00
GRAPHIC 1
$27.56¢13 781
1
