EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

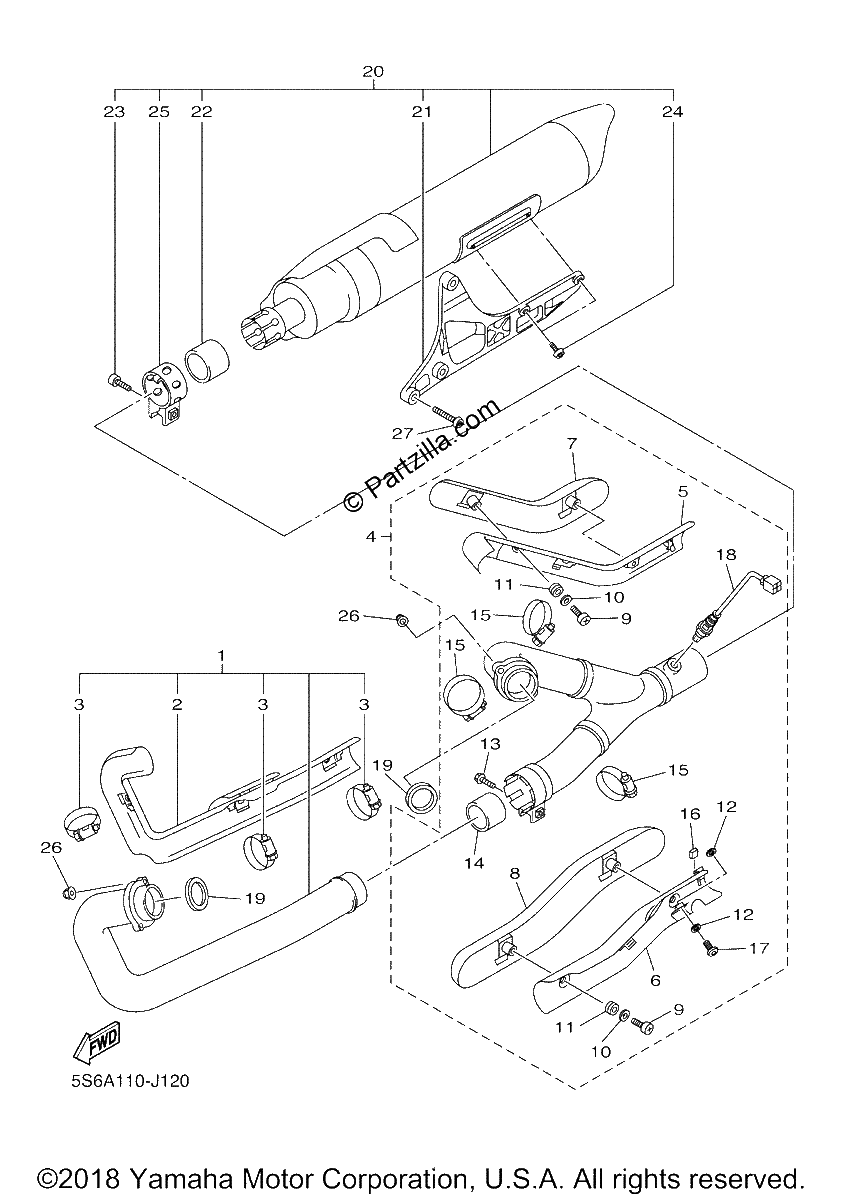

Diagrama de EXHAUST

Repuestos

#1
3D8-14610-20-00
EXHAUST PIPE ASSY 1
$510.09¢255 047
1
#2
3D8-14718-10-00
PROTECTOR, MUFFLER 1
$395.93¢197 967
1
#3
90450-44001-00
HOSE CLAMP ASSY
$17.39¢8 694
1
#4
3D8-14620-20-00
EXHAUST PIPE ASSY 2
$1098.24¢549 119
1
#5
3D8-14728-10-00
MUFFLER COMP. 2
$344.49¢172 247
1
#6
3D8-14738-10-00
PROTECTOR, MUFFLER 3
$349.98¢174 990
1
#7
3D8-14748-10-00
PROTECTOR, MUFFLER 4
$216.44¢108 221
1
#8
3D8-14628-10-00
PROTECTOR, EXHAUST PIPE
$244.10¢122 049
1
#9
98980-06012-00
SCREW, BIND
$6.75¢3 375
1
#10
90201-064K6-00
WASHER, PLATE
$6.88¢3 439
1
#11
90480-17005-00
GROMMET
$6.46¢3 231
1
#12
90201-05015-00
WASHER, PLATE
$6.88¢3 439
1
#13
91314-08035-00
BOLT, HEXAGON SOCKET HEAD
$2.70¢1 351
1
#14
5PX-14755-00-00
GASKET, SILENCER
$27.22¢13 610
1
#15
90450-44001-00
HOSE CLAMP ASSY
$17.39¢8 694
1
#16
3MA-24181-00-00
DAMPER, LOCATING 1
$7.15¢3 577
1
#17
98980-06016-00
SCREW, BIND
$7.45¢3 726
1
#18
5D1-8592A-00-00
SENSOR, OXYGEN
$304.96¢152 479
1
#19
3EG-14613-00-00
GASKET, EXHAUST PIPE
$22.10¢11 051
1
#20
3D8-14710-20-00
MUFFLER ASSY 1
$1996.39¢998 194
1
#21
3D8-14772-00-00
STAY, MUFFLER 2
$249.58¢124 792
1
#22
5VY-14714-00-00
GASKET, MUFFLER
$27.22¢13 610
1
#23
91314-08035-00
BOLT, HEXAGON SOCKET HEAD
$2.70¢1 351
1
#24
90111-10006-00
BOLT, HEX. SOCKET BUTTON
$5.06¢2 530
1
#25
3D8-14715-00-00
BAND, MUFFLER
$39.92¢19 958
1
#26
90176-08006-00
NUT, CROWN
$3.16¢1 581
1
#27
90111-10032-00
BOLT, HEX. SOCKET BUTTON
$5.78¢2 892
1
