FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

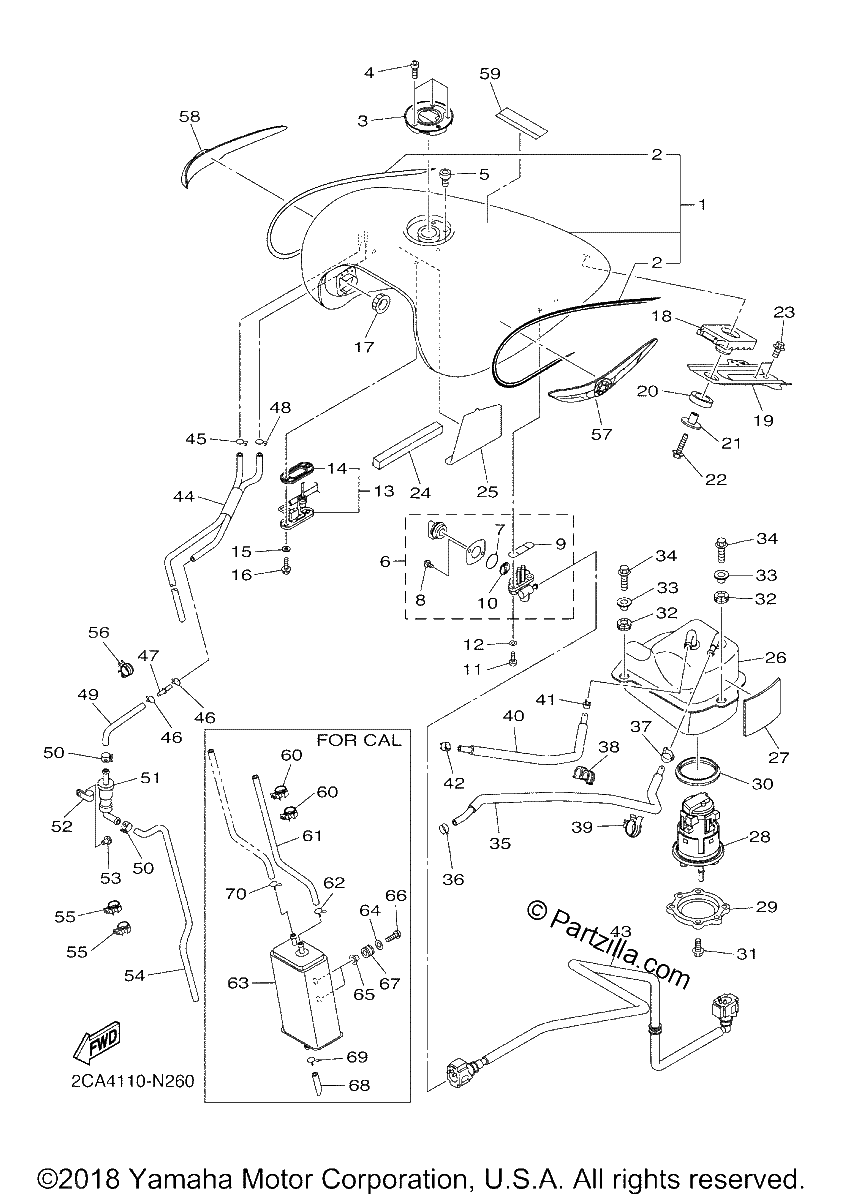

Diagrama de FUEL TANK

Repuestos

#1
3D8-Y2410-00-W9
FUEL TANK COMP.
$1354.69¢677 344
1
#2
5S6-24240-60-00
GRAPHIC SET
$191.54¢95 772
1
#3
3D8-24602-10-00
CAP ASSY
$216.40¢108 198
1
#4
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
1
#5
91312-05010-00
BOLT
$5.39¢2 697
1
#6
4JT-24500-20-00
FUEL COCK ASSY 1
$105.29¢52 647
1
#7
3AJ-24534-10-00
SEAL, COCK
$7.75¢3 875
1
#8
98517-03008-00
SCREW, PAN HEAD
$3.00¢1 501
1
#9
4X8-24512-10-00
GASKET
$12.02¢6 009
1
#10
3AC-24523-00-00
VALVE PACKING
$12.71¢6 354
1
#11
90149-06108-00
SCREW
$1.05¢523
1
#12
90202-05187-00
WASHER, PLATE
$1.45¢724
1
#13
3D8-85752-10-00
SENDER UNIT ASSY, FUEL METER
$93.69¢46 845
1
#14
3D8-85753-00-00
GASKET, SENDER UNIT
$29.52¢14 760
1
#15
90202-05187-00
WASHER, PLATE
$1.45¢724
1
#16
95817-06016-00
BOLT, FLANGE
$1.64¢822
1
#17
4H7-24181-00-00
DAMPER, LOCATING 1
$6.00¢3 001
1
#18
1D7-24182-00-00
DAMPER, LOCATING 2
$19.24¢9 620
1
#19
3D8-2413Y-00-00
BRACKET, TANK FITTING
$35.44¢17 722
1
#20
4TR-24183-00-00
DAMPER, LOCATING 3
$7.28¢3 640
1
#21
90387-06177-00
COLLAR
$9.51¢4 755
1
#22
95812-06030-00
BOLT, FLANGE
$1.82¢909
1
#23
95817-08012-00
BOLT, FLANGE
$4.35¢2 173
1
#24
3XV-28217-00-00
DAMPER 1
$9.17¢4 583
1
#25
3D8-2476V-00-00
PROTECTOR, 2
$32.57¢16 284
1
#26
3D8-244A0-00-00
PUMP CASE COMP.
$423.77¢211 888
1
#27
3D8-2414J-00-00
DAMPER, PLATE 2
$2.63¢1 317
1
#28
3D8-13907-02-00
FUEL PUMP COMP. (replaces 3D8-13907-01-00)
$595.63¢297 816
1
#29
3D8-24491-10-00
BRACKET, FUEL PUMP
$56.58¢28 290
1
#30
19B-24486-01-00
O-RING
$40.92¢20 458
1
#31
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#32
3D8-24185-00-00
DAMPER, LOCATING 5
$3.52¢1 759
1
#33
90387-062U9-00
COLLAR
$3.55¢1 777
1
#34
95817-06025-00
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
1
#35
3D8-24311-11-00
PIPE, FUEL 1
$133.27¢66 637
1
#36
90467-12004-00
CLIP
$7.28¢3 640
1
#37
90467-130A1-00
CLIP
$5.31¢2 657
1
#38
90464-19001-00
CLAMP
$1.81¢903
1
#39
90464-20191-00
Clamp
$8.06¢4 031
1
#40
3D8-24312-11-00
PIPE 2
$67.38¢33 689
1
#41
90467-160A2-00
CLIP
$4.77¢2 386
1
#42
5PX-2411M-00-00
CLIP
$9.69¢4 847
1
#43
3D8-13971-00-00
PIPE, FUEL 1
$142.39¢71 196
1
#44
3D8-2318J-01-00
HOSE ASSY
$98.80¢49 398
1
#45
90467-090A2-00
Clip
$2.74¢1 368
1
#46
90467-090A2-00
Clip
$2.74¢1 368
1
#47
4XY-14568-00-00
JOINT
$6.51¢3 254
1
#48
90467-090A2-00
Clip
$2.74¢1 368
1
#49
3D8-24324-00-00
PIPE 13
$18.63¢9 315
1
#50
90467-09001-00
CLIP
$1.99¢995
1
#51
5RB-24180-00-00
ROLL OVER VALVE ASSY
$113.10¢56 551
1
#52
90464-15014-00
Clamp
$2.16¢1 081
1
#53
90269-05005-00
RIVET
$3.29¢1 644
1
#54
90445-10040-00
HOSE
$8.07¢4 036
1
#55
90464-20191-00
Clamp
$8.06¢4 031
1
#56
90464-15192-00
CLAMP
$6.75¢3 375
1
#57
3D8-2416B-00-00
EMBLEM
$136.07¢68 034
1
#58
3D8-2417B-00-00
EMBLEM
$136.07¢68 034
1
#59
1TP-2118K-A1-00
LABEL, CAUTION
$6.59¢3 295
1
#60
90464-25217-00
CLAMP
$3.68¢1 840
1
#61
3D8-2486A-01-00
PIPE 1 | FOR CALIFORNIA
$39.30¢19 648
1
#62
90467-090A2-00
Clip
$2.74¢1 368
1
#63
5PX-24170-00-00
CANISTER ASSY | FOR CALIFORNIA
$325.59¢162 794
1
#64
90201-06057-00
WASHER, PLATE
$4.13¢2 064
1
#65
90387-062L2-00
COLLAR | FOR CALIFORNIA
$6.22¢3 111
1
#66
90111-06046-00
BOLT, HEX. SOCKET BUTTON | FOR CALIFORNIA
$5.96¢2 978
1
#67
90480-13163-00
GROMMET | FOR CALIFORNIA
$6.51¢3 254
1
#68
3D8-24325-00-00
PIPE 14 | FOR CALIFORNIA
$2.13¢1 064
1
#69
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#70
90467-090A2-00
Clip
$2.74¢1 368
1
