FRONT MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

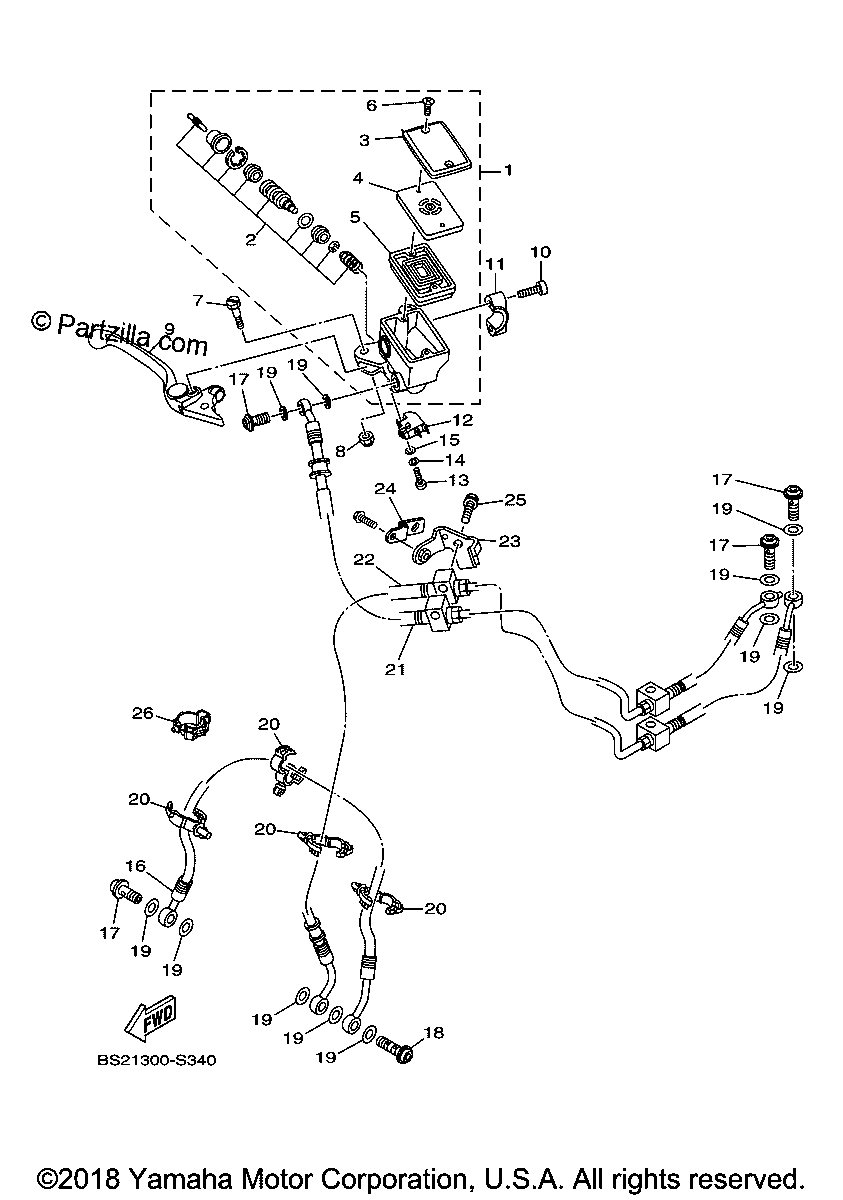

Diagrama de FRONT MASTER CYLINDER

Repuestos

#1
2DR-2580A-00-00
MASTER CYLINDER SUB ASSY 2
$282.67¢141 337
1
#2
1MC-25807-00-00
CYLINDER KIT, MASTER
$34.89¢17 444
1
#3
5VS-25852-00-00
CAP, RESERVOIR
$26.44¢13 219
1
#4
5VS-25855-00-00
BUSH, DIAPHRAGM
$17.01¢8 506
1
#5
20S-25854-00-00
DIAPHRAGM, RESERVOIR
$26.89¢13 444
1
#6
5VS-2589H-00-00
SCREW
$4.04¢2 019
1
#7
5VS-2589F-00-00
BOLT, LEVER
$14.65¢7 325
1
#8
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#9
5VS-83922-00-00
LEVER 2
$87.94¢43 969
1
#10
5VS-26332-00-00
BOLT
$4.68¢2 338
1
#11
5VS-25867-00-00
BRACKET, MASTER CYLINDER
$37.81¢18 906
1
#12
1HP-83980-01-00
FRONT STOP SWITCH ASSY
$36.71¢18 356
1
#13
98502-04012-00
SCREW, PAN HEAD
No Disponible
1
#14
92902-04100-00
WASHER, SPRING
$0.74¢369
1
#15
92990-04600-00
WASHER, PLATE
$1.20¢600
1
#16
2DR-25872-00-00
HOSE, BRAKE 1
$66.94¢33 469
1
#17
90401-10172-00
BOLT, UNION
$4.41¢2 206
1
#18
90401-10042-00
BOLT, UNION
$18.96¢9 481
1
#19
90430-10005-00
GASKET
$8.39¢4 194
1
#20
90464-18002-00
CLAMP
$8.25¢4 125
1
#21
2DR-2584A-00-00
BRAKE HOSE ASSY
$267.86¢133 931
1
#22
2DR-2584B-00-00
HOSE, BRAKE
$230.65¢115 325
1
#23
2DR-85132-00-00
BRACKET, REFLECTOR 1
$18.09¢9 044
1
#24
B90-2612E-00-00
BRACKET
$6.14¢3 069
1
#25
90105-06192-00
BOLT, FLANGE
$5.51¢2 756
1
#26
90464-14013-00
CLAMP
$3.50¢1 750
1
