CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

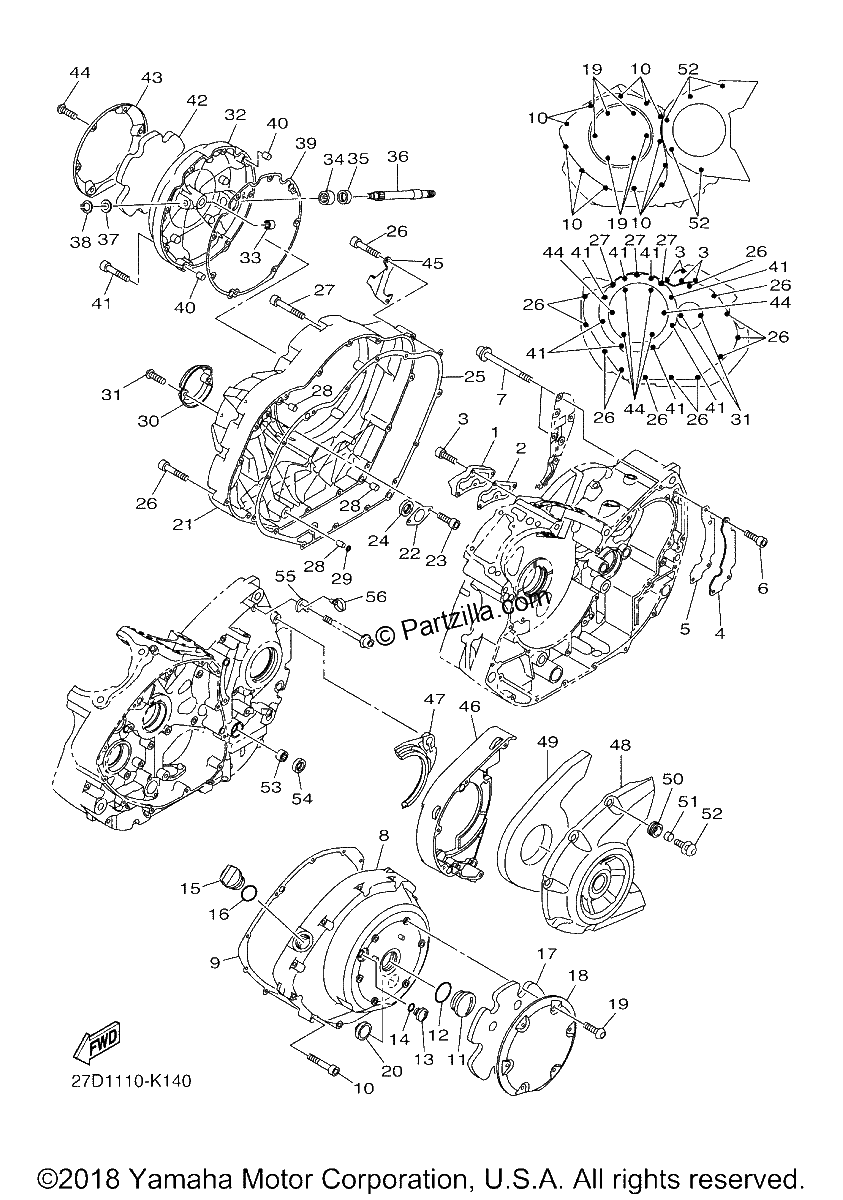

Diagrama de CRANKCASE COVER 1

Repuestos

#1
3D8-15416-00-00
COVER, OIL PUMP
$51.52¢25 760
1
#2
3D8-15454-00-00
GASKET 1
$8.66¢4 330
1
#3
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
1
#4
3D8-15358-00-00
SEPARATOR, OIL
$4.43¢2 214
1
#5
3D8-15353-00-00
GASKET, DRAIN
$6.03¢3 013
1
#6
91317-06016-00
BOLT
$1.35¢673
1
#7
90110-06250-00
BOLT, HEXAGON SOCKET (replaces 90110-06270-00)
$5.11¢2 553
1
#8
3D8-15411-00-00
COVER, CRANKCASE 1
$392.25¢196 127
1
#9
3D8-15451-00-00
GASKET, CRANKCASE COVER 1
$17.41¢8 705
1
#10
91314-06040-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#11
90340-36078-00
PLUG, STRAIGHT SCREW
$13.51¢6 756
1
#12
93210-357A3-00
O-RING
$0.54¢270
1
#13
90340-14117-00
PLUG, STRAIGHT SCREW
$12.72¢6 360
1
#14
93210-14369-00
O-Ring
$6.36¢3 180
1
#15
3F9-15362-10-00
PLUG, OIL LEVEL
$21.09¢10 545
1
#16
93210-27778-00
O-RING
$7.56¢3 778
1
#17
27D-1542A-00-00
DAMPER 1
$8.38¢4 192
1
#18
27D-15492-00-00
COVER
$120.93¢60 467
1
#19
92014-06016-00
BOLT, BUTTON HEAD (replaces 90111-06008-00)
$6.75¢3 375
1
#20
2H7-15361-00-00
GAUGE, LEVEL
$94.59¢47 294
1
#21
3D8-15421-00-00
COVER, CRANKCASE 2
$322.34¢161 172
1
#22
3D8-15388-00-00
PLATE, BEARING COVER
$2.21¢1 104
1
#23
91317-06012-00
BOLT
$6.75¢3 375
1
#24
93101-14102-00
OIL SEAL
$12.06¢6 032
1
#25
3D8-15461-00-00
GASKET, CRANKCASE COVER 2
$33.55¢16 773
1
#26
91314-06040-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#27
91314-06065-00
BOLT, HEXAGON SOCKET HEAD
$7.30¢3 651
1
#28
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#29
93210-07135-00
O-RING
$5.15¢2 576
1
#30
3D8-15423-01-00
COVER 2
$49.97¢24 984
1
#31
92014-06016-00
BOLT, BUTTON HEAD (replaces 90111-06008-00)
$6.75¢3 375
1
#32
3D8-15414-00-00
COVER, AIR CLEANER
$302.01¢151 007
1
#33
93317-11096-00
BEARING
$21.90¢10 948
1
#34
93315-31502-00
BEARING
$34.79¢17 394
1
#35
93102-15212-00
OIL SEAL
$8.03¢4 013
1
#36
3D8-16382-00-00
AXLE, PUSH LEVER
$83.13¢41 567
1
#37
92990-08600-00
WASHER, PLATE
$2.54¢1 271
1
#38
99080-07600-00
CIRCLIP
$3.31¢1 656
1
#39
3D8-15453-00-00
GASKET
$20.40¢10 200
1
#40
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#41
91314-06030-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#42
27D-1542B-00-00
DAMPER 2
$10.66¢5 330
1
#43
27D-15415-00-00
COVER, 1
$79.17¢39 583
1
#44
92014-06016-00
BOLT, BUTTON HEAD (replaces 90111-06008-00)
$6.75¢3 375
1
#45
27D-15441-00-00
HOLDER, CLUTCH CABLE
$14.20¢7 101
1
#46
3D8-1541A-01-00
STAY, CRANKCASE COVER 1
$219.52¢109 762
1
#47
3D8-15337-02-00
DAMPER 4
$15.36¢7 682
1
#48
27D-15426-00-00
COVER, OIL PUMP 2
$100.50¢50 249
1
#49
27D-15316-00-00
DAMPER 1
$14.82¢7 412
1
#50
90480-13030-00
GROMMET
$3.29¢1 644
1
#51
90387-06207-00
COLLAR
$6.89¢3 444
1
#52
90111-06130-00
BOLT, HEX. SOCKET BUTTON
$4.13¢2 064
1
#53
93317-11287-00
BEARING
$22.45¢11 224
1
#54
93102-12106-00
OIL SEAL,SD-TYPE
$11.10¢5 549
1
#55
3D8-15544-00-00
STAY 1
$4.47¢2 237
1
#56
90464-16006-00
CLAMP
$9.12¢4 560
1
