STARTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

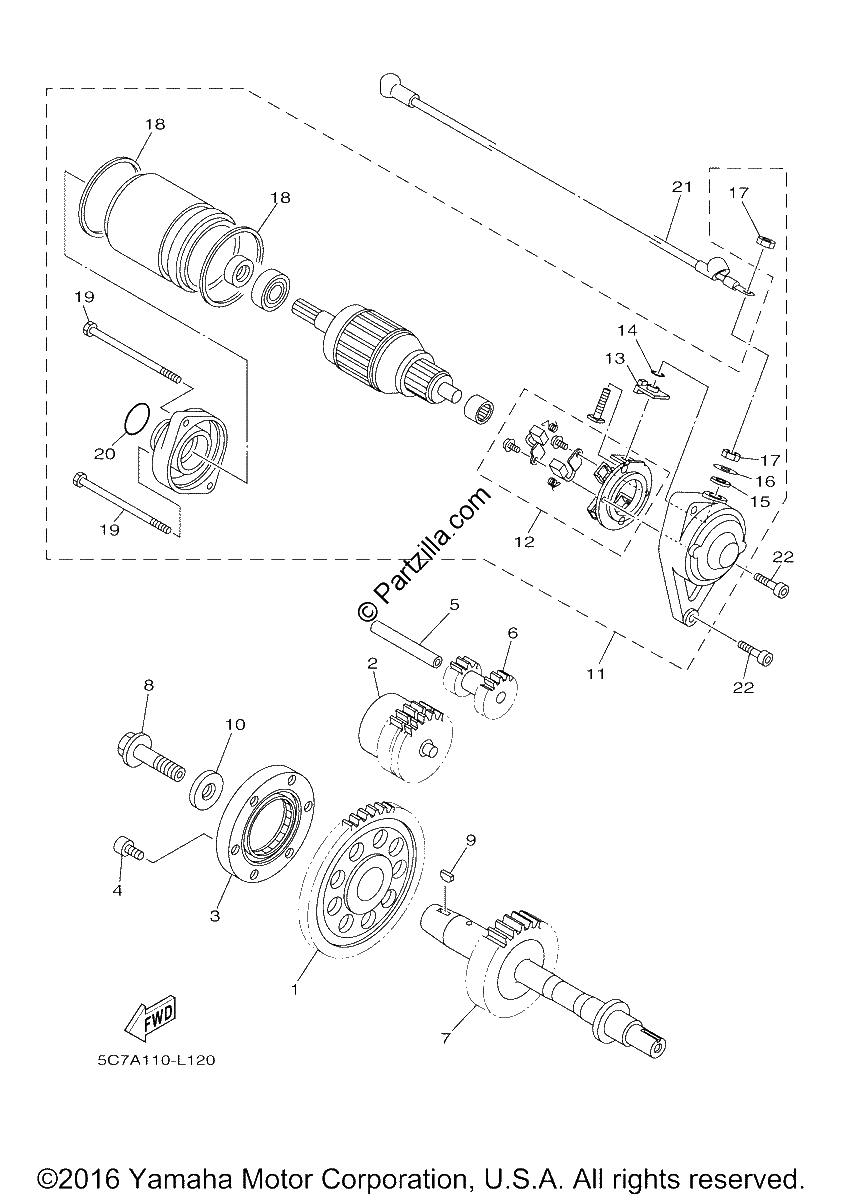

Diagrama de STARTER

Repuestos

#1
1D7-15515-00-00
GEAR 3
$207.56¢103 781
1
#2
1D7-15560-10-00
DAMPER ASSY
$660.51¢330 256
1
#3
4WM-15590-00-00
STARTER ONE-WAY ASSY
$356.90¢178 450
1
#4
91317-08016-00
BOLT (replaces 90110-08053-00)
$7.34¢3 669
1
#5
1D7-15521-00-00
SHAFT 1
$9.96¢4 981
1
#6
1D7-15512-01-00
GEAR, IDLER 1
$110.69¢55 344
1
#7
1D7-15659-00-00
SHAFT
$251.42¢125 712
1
#8
90105-12005-00
BOLT, FLANGE
$26.43¢13 213
1
#9
90280-05001-00
KEY, WOODRUFF (replaces 90280-05048-00)
$14.04¢7 019
1
#10
90201-12008-00
WASHER, PLATE
$13.29¢6 644
1
#11
1D7-81890-01-00
MOTOR ASSY
$334.83¢167 413
1
#12
2S3-81801-00-00
BRUSH SET
$85.10¢42 550
1
#13
2S3-8182G-00-00
BUSH, TERMINAL
$6.21¢3 106
1
#14
93210-06632-00
O-Ring
$7.94¢3 969
1
#15
8FA-8181L-00-00
WASHER, PLAIN
$5.06¢2 531
1
#16
1D7-81835-00-00
WASHER
$1.84¢919
1
#17
95380-06700-00
NUT
$7.34¢3 669
1
#18
1D7-81861-00-00
GASKET
$14.89¢7 444
1
#19
5PX-81846-00-00
SCREW
$6.06¢3 031
1
#20
93210-25711-00
O-Ring
$7.13¢3 563
1
#21
1D7-8183G-00-00
CORD COMP.
$150.95¢75 475
1
#22
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
