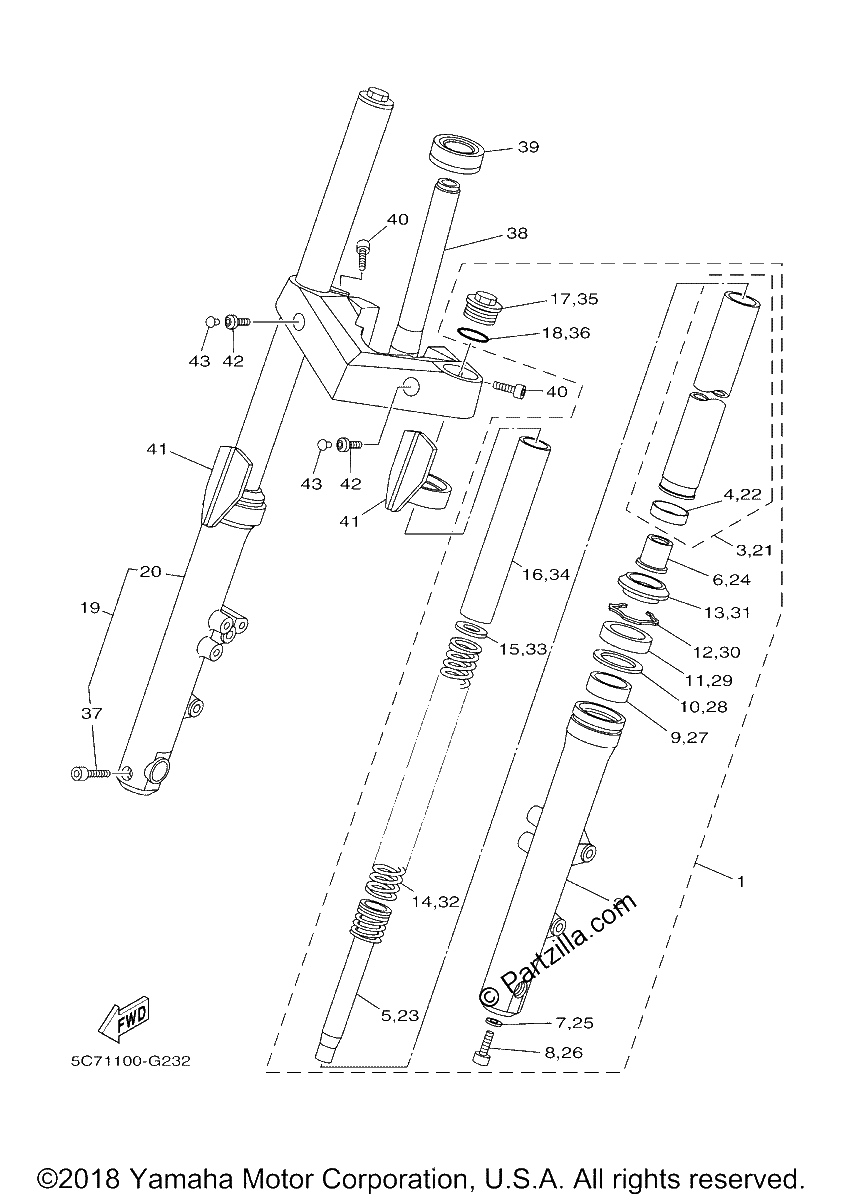

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1102.49¢551 244
#2
TUBE, OUTER (L.H)
$606.25¢303 125
#3
INNER TUBE COMP.1
$567.39¢283 694
#4
METAL, SLIDE
$58.63¢29 313
#5
CYLINDER COMP., FRONT FORK
$197.71¢98 856
#6
SPINDLE, TAPER
$34.47¢17 237
#7
GASKET
$15.59¢7 794
#8
BOLT, HEXAGON SOCKET HEAD
$7.46¢3 731
#9
METAL, SLIDE 1
$37.16¢18 581
#10
WASHER, OIL SEAL
$8.03¢4 013
#11
OIL SEAL
$24.79¢12 394
#12
RING, SNAP
$7.28¢3 638
#13
SEAL, DUST
$34.96¢17 481
#14
SPRING, FRONT FORK
$89.55¢44 775
#15
WASHER, SPRING UPPER
$8.75¢4 375
#16
SPACER
$21.95¢10 975
#17
BOLT, CAP
$80.49¢40 244
#18
O-RING
$16.44¢8 219
#19
FRONT FORK ASSY (R.H)
$1069.99¢534 994
#20
TUBE, OUTER
$614.99¢307 494
#21
INNER TUBE COMP.1
$567.39¢283 694
#22
METAL, SLIDE
$58.63¢29 313
#23
CYLINDER COMP., FRONT FORK
$197.71¢98 856
#24
SPINDLE, TAPER
$34.47¢17 237
#25
GASKET
$15.59¢7 794
#26
BOLT, HEXAGON SOCKET HEAD
$7.46¢3 731
#27
METAL, SLIDE 1
$37.16¢18 581
#28
WASHER, OIL SEAL
$8.03¢4 013
#29
OIL SEAL
$24.79¢12 394
#30
RING, SNAP
$7.28¢3 638
#31
SEAL, DUST
$34.96¢17 481
#32
SPRING, FRONT FORK
$89.55¢44 775
#33
WASHER, SPRING UPPER
$8.75¢4 375
#34
SPACER
$21.95¢10 975
#35
BOLT, CAP
$80.49¢40 244
#36
O-RING
$16.44¢8 219
#37
BOLT (3JP)
$6.25¢3 125
#38
UNDER BRACKET COMP.
$569.05¢284 525
#39
BEARING
$88.35¢44 175
#40
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
#41
COVER
$78.69¢39 344
#42
BOLT,HEX. SOCKET BUTTON
$6.14¢3 069
#43
PLUG,SPEC'L SHAPE
$4.11¢2 056
#44
FORK SEAL KIT
$57.67¢28 838
