EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

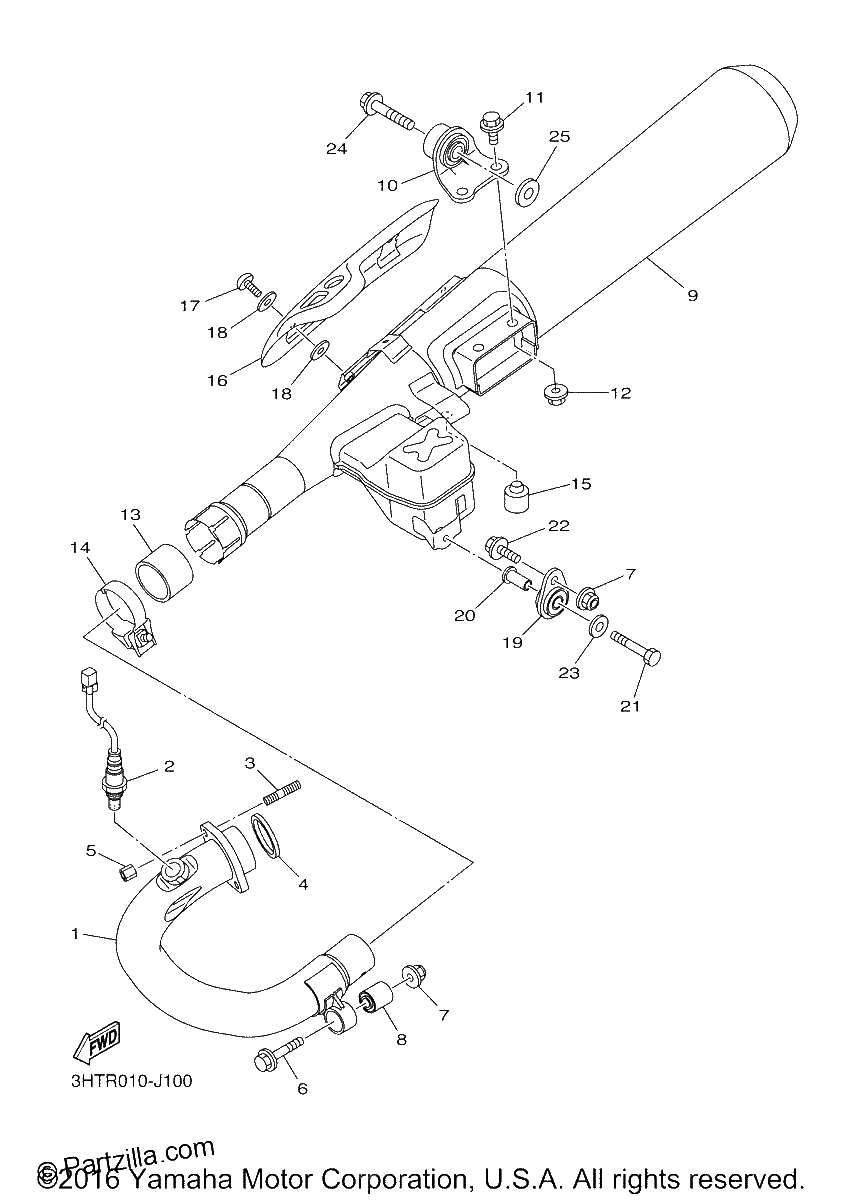

Diagrama de EXHAUST

Repuestos

#1
3HT-14611-R0-00
PIPE, EXHAUST 1
$233.38¢116 690
1
#2
3HT-8592A-00-00
SENSOR, OXYGEN
$248.97¢124 488
1
#3
90116-08617-00
BOLT, STUD
$1.36¢678
1
#4
3GD-14613-00-00
GASKET, EXHAUST PIPE
$13.57¢6 785
1
#5
90179-08004-00
NUT
$8.34¢4 169
1
#6
95817-08045-00
BOLT, FLANGE
$2.05¢1 023
1
#7
90185-08169-00
NUT, SELF-LOCKING
$7.77¢3 887
1
#8
3HT-14737-R0-00
DAMPER, MUFFLER
$40.70¢20 349
1
#9
3HT-14703-R0-00
MUFFLER COMP. 1
$1032.69¢516 344
1
#10
3HT-14771-R0-00
STAY, MUFFLER 1
$41.40¢20 700
1
#11
95817-10020-00
BOLT, FLANGE
$5.75¢2 875
1
#12
95707-10500-00
NUT, FLANGE
$1.89¢943
1
#13
3GW-14714-00-00
GASKET, MUFFLER
$34.33¢17 164
1
#14
2J2-14788-01-00
BAND, SILENCER
$22.59¢11 293
1
#15
1A0-27114-00-00
STOPPER, MAIN STAND
$17.32¢8 660
1
#16
3HT-14718-R0-00
PROTECTOR, MUFFLER 1
$210.69¢105 346
1
#17
98980-06010-00
SCREW,BIND (replaces 98902-06010-00)
$6.43¢3 214
1
#18
90201-05017-00
WASHER, PLATE
$6.88¢3 439
1
#19
3HT-14791-R0-00
STAY, MUFFLER
$22.33¢11 167
1
#20
90387-08664-00
COLLAR
$4.81¢2 403
1
#21
97017-08035-00
BOLT
$6.30¢3 151
1
#22
95817-08020-00
BOLT, FLANGE
$7.65¢3 824
1
#23
90201-08649-00
WASHER,PLATE (replaces 90201-08093-00)
$6.88¢3 439
1
#24
90105-12075-00
BOLT, FLANGE
$3.54¢1 771
1
#25
90201-126L0-00
WASHER, PLATE
$5.69¢2 846
1
