FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

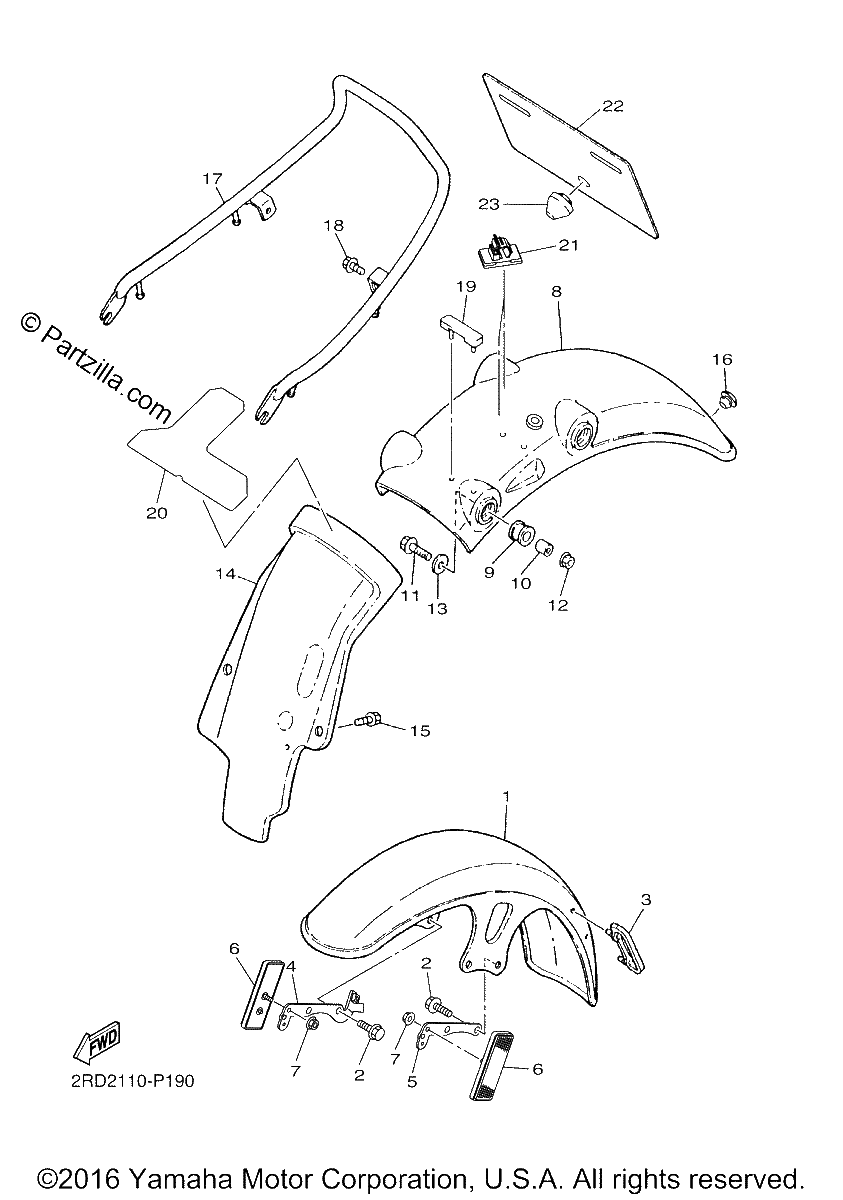

Diagrama de FENDER

Repuestos

#1
1JN-21510-20-93
FRONT FENDER COMP. | Use for Color CHROME PLATED ( CM / 0093 )
$230.82¢115 408
1
#2
95817-08016-00
BOLT, FLANGE
$4.52¢2 260
1
#3
3Y6-21518-00-00
HOLDER, CABLE
$28.59¢14 295
1
#4
2RD-25887-00-00
HOLDER, BRAKE HOSE
$11.97¢5 986
1
#5
2RD-2588F-00-00
HOLDER, BRAKE HOSE 5
$7.77¢3 887
1
#6
11H-85110-01-00
REFLECTOR ASSY
$22.93¢11 466
1
#7
95707-05500-00
NUT, FLANGE
$6.76¢3 381
1
#8
2J2-21610-11-93
REAR FENDER COMP. | Use for Color CHROME PLATED ( CM / 0093 )
$216.90¢108 451
1
#9
168-21639-00-00
DAMPER 2
$10.43¢5 215
1
#10
90387-08258-00
COLLAR
$10.04¢5 020
1
#11
95817-08035-00
BOLT,FLANGE (replaces 90105-08108-00)
$7.30¢3 651
1
#12
95707-08500-00
NUT, FLANGE
$1.64¢822
1
#13
90201-085E6-00
WASHER, PLATE
$6.77¢3 387
1
#14
2J2-21629-01-00
GUARD, MUD
$56.92¢28 463
1
#15
90119-06152-00
BOLT, WITH WASHER
$3.00¢1 501
1
#16
90338-07043-00
PLUG
$6.03¢3 013
1
#17
3GW-21645-00-00
STAY, REAR
$73.81¢36 904
1
#18
95817-08016-00
BOLT, FLANGE
$4.52¢2 260
1
#19
3HT-21637-00-00
CLAMP, WIRE
$4.37¢2 185
1
#20
3HT-21669-00-00
SEAL
$16.04¢8 021
1
#21
90464-62085-00
CLAMP
$6.59¢3 295
1
#22
2RD-28189-00-00
PLATE, NUMBER SUPPORT
$42.89¢21 447
1
#23
3HT-21649-00-00
DAMPER
$4.19¢2 093
1
