HANDLE SWITCH LEVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

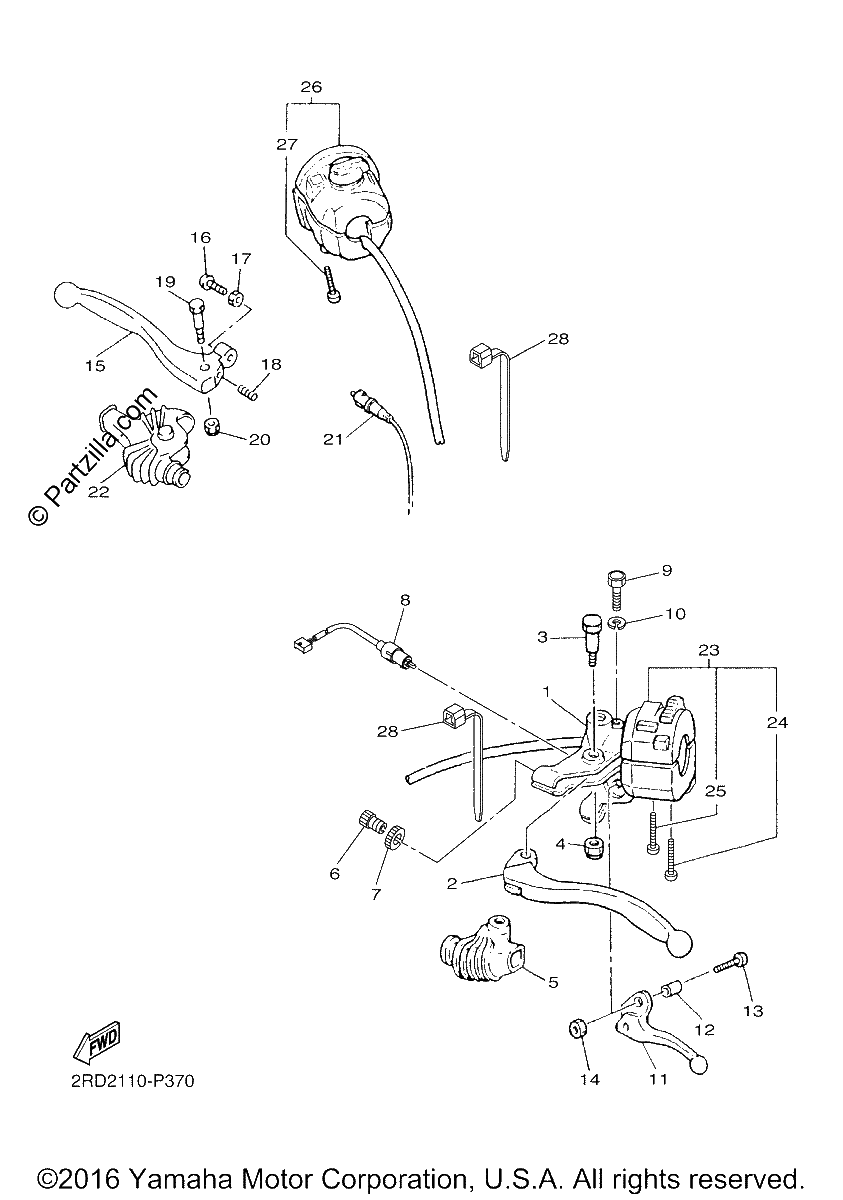

Diagrama de HANDLE SWITCH LEVER

Repuestos

#1
3HT-82911-00-00
HOLDER, LEVER 1
$47.79¢23 894
1
#2
2HT-83912-01-00
LEVER 1
$41.60¢20 800
1
#3
3HT-83945-00-00
BOLT, LEVER
$6.66¢3 331
1
#4
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#5
1E6-26372-00-00
COVER,HANDLE LEVER
$23.73¢11 863
1
#6
90123-08046-00
BOLT
$10.94¢5 469
1
#7
90179-08148-00
NUT
$4.64¢2 319
1
#8
3HT-82917-00-00
SWITCH
$33.58¢16 788
1
#9
97007-06022-00
BOLT
$8.24¢4 119
1
#10
92907-06100-00
WASHER, SPRING
$1.23¢613
1
#11
583-83981-00-00
LEVER, DECOMPRESSION
$24.40¢12 200
1
#12
5BE-83913-00-00
COLLAR, LEVER 1
$5.47¢2 738
1
#13
98517-05020-00
SCREW, PAN HEAD (replaces 98507-05020-00)
$1.61¢806
1
#14
95617-05100-00
NUT, U
$7.94¢3 969
1
#15
38W-83922-01-00
LEVER 2
$67.75¢33 875
1
#16
90149-06131-00
SCREW
$7.34¢3 669
1
#17
90170-06021-00
NUT
$3.49¢1 744
1
#18
90501-10312-00
SPRING,COMPRESSION
$7.34¢3 669
1
#19
90109-06577-00
BOLT
$6.41¢3 206
1
#20
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#21
3HT-83980-00-00
FRONT STOP SWITCH ASSY
$28.90¢14 450
1
#22
1T5-26372-00-00
COVER,HANDLE LEVER
$21.26¢10 631
1
#23
2RD-83972-00-00
SWITCH, HANDLE 4
$145.69¢72 844
1
#24
98517-05030-00
SCREW, PAN HEAD (replaces 98507-05030-00)
$9.45¢4 725
1
#25
98507-05035-00
SCREW, PAN HEAD
$7.95¢3 975
1
#26
2RD-83976-00-00
SWITCH, HANDLE 1
$105.11¢52 556
1
#27
98517-05030-00
SCREW, PAN HEAD (replaces 98507-05030-00)
$9.45¢4 725
1
#28
90464-15195-00
CLAMP
$3.30¢1 650
1
