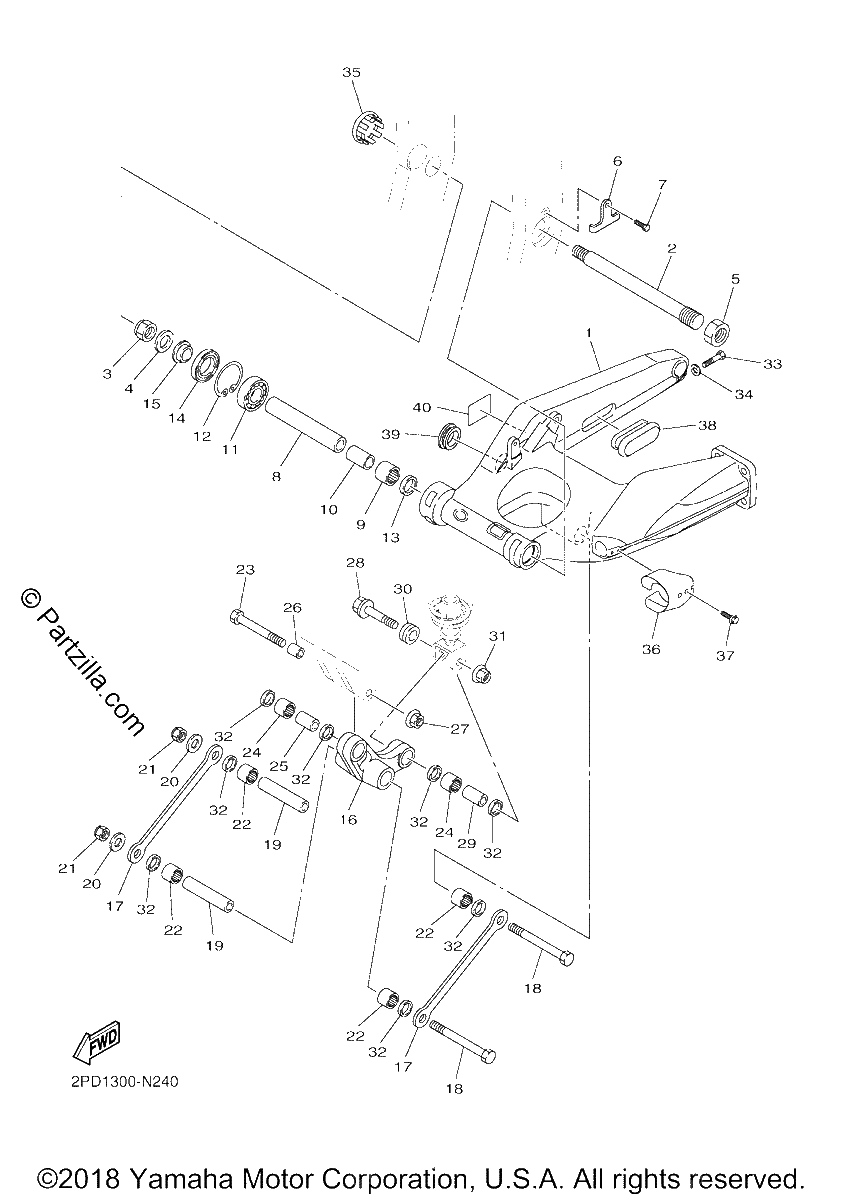

REAR ARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
REAR ARM COMP.
$1069.99¢534 994
#2
SHAFT, PIVOT
$88.28¢44 138
#3
NUT, SELF-LOCKING
$18.90¢9 450
#4
WASHER, PLATE
$2.91¢1 456
#5
NUT
$15.74¢7 869
#6
COVER, THRUST 1
$4.90¢2 450
#7
BOLT, HEXAGON
$3.11¢1 556
#8
COLLAR
$27.17¢13 587
#9
BEARING
$57.64¢28 819
#10
COLLAR, WHEEL
$42.04¢21 019
#11
BEARING
$75.66¢37 831
#12
CIRCLIP
$12.79¢6 394
#13
OIL SEAL
$14.14¢7 069
#14
OIL SEAL
$17.49¢8 744
#15
COLLAR
$15.29¢7 644
#16
ARM, RELAY
$326.14¢163 069
#17
ARM 1
$44.04¢22 019
#18
BOLT
$12.75¢6 375
#19
COLLAR
$21.59¢10 794
#20
WASHER, plate
$4.25¢2 125
#21
NUT, U
$7.35¢3 675
#22
BEARING
$37.88¢18 938
#23
BOLT
$11.95¢5 975
#24
BEARING
$39.89¢19 944
#25
COLLAR
$45.72¢22 862
#26
COLLAR
$8.61¢4 306
#27
NUT, U FLANGE
$2.73¢1 363
#28
BOLT, FLANGE
$14.55¢7 275
#29
COLLAR
$45.72¢22 862
#30
COLLAR
$35.81¢17 906
#31
NUT,SELF-LOCKING
$3.96¢1 981
#32
OIL SEAL
$8.03¢4 013
#33
BOLT
$6.26¢3 131
#34
WASHER, plate
$2.76¢1 381
#35
COVER
$56.99¢28 494
#36
COVER, DUST
$24.44¢12 219
#37
BOLT, WITH WASHER
$6.67¢3 338
#38
COVER
$14.38¢7 188
#39
PLUG
$5.10¢2 550
#40
LABEL, TIRE
$7.95¢3 975
