FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

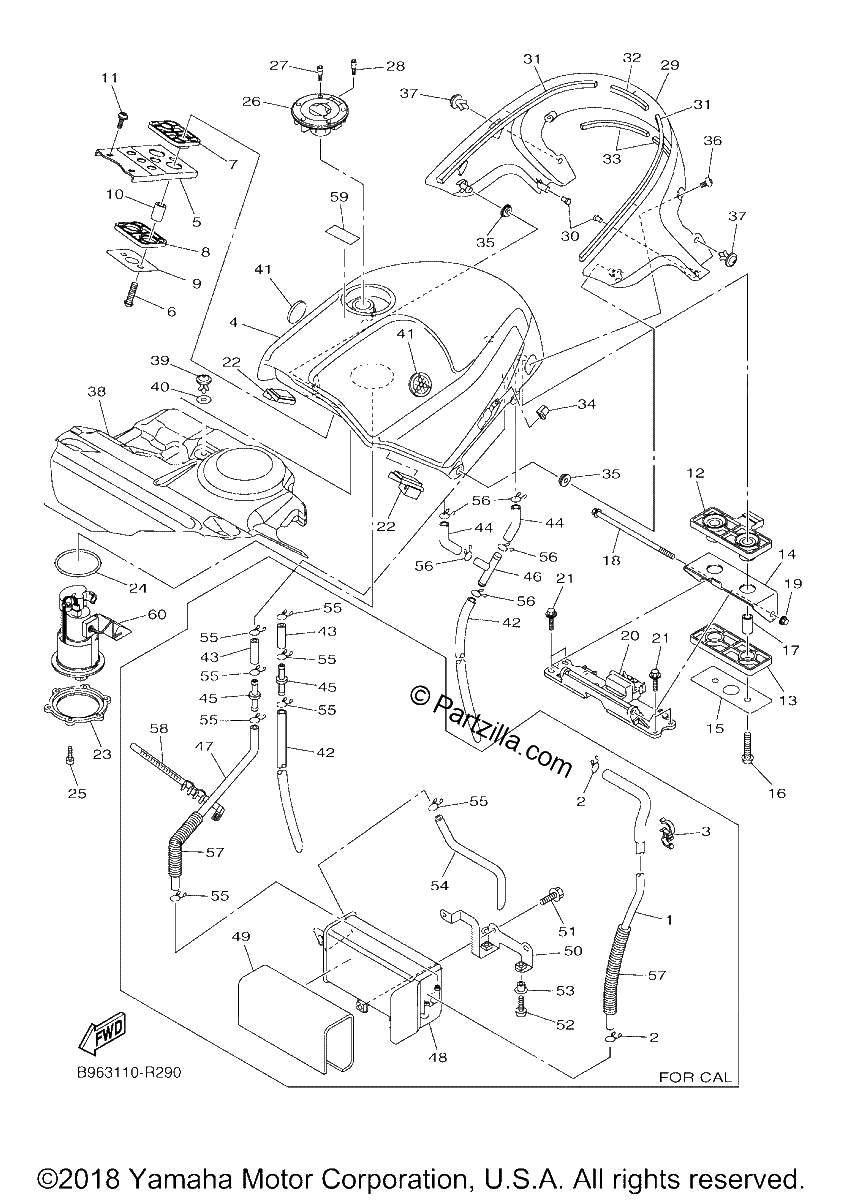

Diagrama de FUEL TANK

Repuestos

#1
1MC-1443J-10-00
PIPE
$93.34¢46 669
1
#2
90467-100A1-00
CLIP | FOR CALIFORNIA
$7.60¢3 800
1
#3
90464-28153-00
CLAMP | FOR CALIFORNIA
$2.88¢1 438
1
#4
3P6-YK241-00-P6
FUEL TANK COMP.
$1396.55¢698 275
1
#5
5JW-24191-00-00
BRACKET, FUEL TANK 1
$28.50¢14 250
1
#6
92012-08035-00
BOLT, BUTTON HEAD
$4.49¢2 244
1
#7
5JW-24181-00-00
DAMPER, LOCATING 1
$12.28¢6 138
1
#8
5JW-24182-00-00
DAMPER, LOCATING 2
$9.93¢4 963
1
#9
5JW-24187-00-00
WASHER, SPECIAL
$6.65¢3 325
1
#10
90387-0813V-00
COLLAR
$5.22¢2 613
1
#11
90149-06302-00
SCREW
$5.11¢2 556
1
#12
3P6-24183-00-00
DAMPER, LOCATING 3
$15.29¢7 644
1
#13
5JW-24184-00-00
DAMPER, LOCATING 4
$22.91¢11 456
1
#14
5JW-24192-01-00
BRACKET, FUEL TANK 2
$29.94¢14 969
1
#15
5JW-24186-00-00
WASHER, SPECIAL
$8.56¢4 281
1
#16
92012-08035-00
BOLT, BUTTON HEAD
$4.49¢2 244
1
#17
90387-0813V-00
COLLAR
$5.22¢2 613
1
#18
95817-08160-00
BOLT, FLANGE
$15.89¢7 944
1
#19
95702-08500-00
NUT, FLANGE
$0.99¢494
1
#20
3P6-21348-00-00
BRACKT, TANK FITTING
$42.18¢21 088
1
#21
95817-06020-00
BOLT, FLANGE (replaces 95802-06020-00)
$3.31¢1 656
1
#22
3P6-24184-00-00
DAMPER, LOCATING 4
$14.51¢7 256
1
#23
1MC-24491-00-00
BRACKET, FUEL PUMP
$31.10¢15 550
1
#24
19B-24486-01-00
O-RING
$44.47¢22 237
1
#25
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#26
39P-24602-10-00
CAP ASSY
$312.61¢156 306
1
#27
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
1
#28
91312-05010-00
BOLT
$5.86¢2 931
1
#29
3P6-24129-10-P1
COVER, SIDE 1
$359.96¢179 981
1
#30
90338-07180-00
PLUG
$6.76¢3 381
1
#31
3P6-2414H-00-00
DAMPER, PLATE 1
$6.51¢3 256
1
#32
3P6-2414J-00-00
DAMPER, PLATE 2
$3.73¢1 863
1
#33
2D1-2414R-00-00
DAMPER, PLATE 6
$7.91¢3 956
1
#34
5PW-2411J-01-00
DAMPER, SIDE COVER
$7.65¢3 825
1
#35
90480-01558-00
Grommet
$4.69¢2 344
1
#36
90111-05023-00
BOLT, HEX. SOCKET BUTTON
$7.69¢3 844
1
#37
90269-06081-00
RIVET
$6.78¢3 388
1
#38
1MC-2416F-00-00
INSULATOR, FUEL TANK 1
$132.40¢66 200
1
#39
90269-06081-00
RIVET
$6.78¢3 388
1
#40
90202-06008-00
WASHER, PLATE
$4.65¢2 325
1
#41
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$23.89¢11 944
1
#42
90445-11036-00
HOSE
$20.38¢10 188
1
#43
90445-11066-00
HOSE | FOR CALIFORNIA
$3.83¢1 913
1
#44
90445-113E8-00
HOSE (L120)
$4.55¢2 275
1
#45
4XY-14568-00-00
JOINT
$7.08¢3 538
1
#46
90413-07007-00
WAY 3
$10.19¢5 094
1
#47
B88-24312-10-00
PIPE 2 | FOR CALIFORNIA
$55.26¢27 631
1
#48
3P6-24170-00-00
CANISTER ASSY | FOR CALIFORNIA
$362.09¢181 044
1
#49
3P6-2414E-00-00
SEAL 2 | FOR CALIFORNIA
$15.25¢7 625
1
#50
B88-2419F-00-00
BRACKET, CANISTOR | FOR CALIFORNIA
$19.35¢9 675
1
#51
95814-06012-00
BOLT, FLANGE | FOR CALIFORNIA
$2.71¢1 356
1
#52
92014-06012-00
BOLT,BUTTON HEAD
$2.95¢1 475
1
#53
90387-0603J-00
COLLAR | FOR CALIFORNIA
$9.75¢4 875
1
#54
3P6-24314-00-00
PIPE 4 | FOR CALIFORNIA
$58.98¢29 488
1
#55
90467-100A1-00
CLIP | FOR CALIFORNIA
$7.60¢3 800
1
#56
90467-100A1-00
CLIP | FOR CALIFORNIA
$7.60¢3 800
1
#57
3P6-2432A-00-00
PROTECTOR, PIPE 2 | FOR CALIFORNIA
$24.22¢12 112
1
#58
90464-10009-00
CLAMP | FOR CALIFORNIA
$5.17¢2 588
1
#59
1TP-2118K-A1-00
LABEL, CAUTION
$7.16¢3 581
1
#60
5JW-13907-23-00
FUEL PUMP COMP. (replaces 5JW-13907-22-00)
$680.76¢340 381
1
