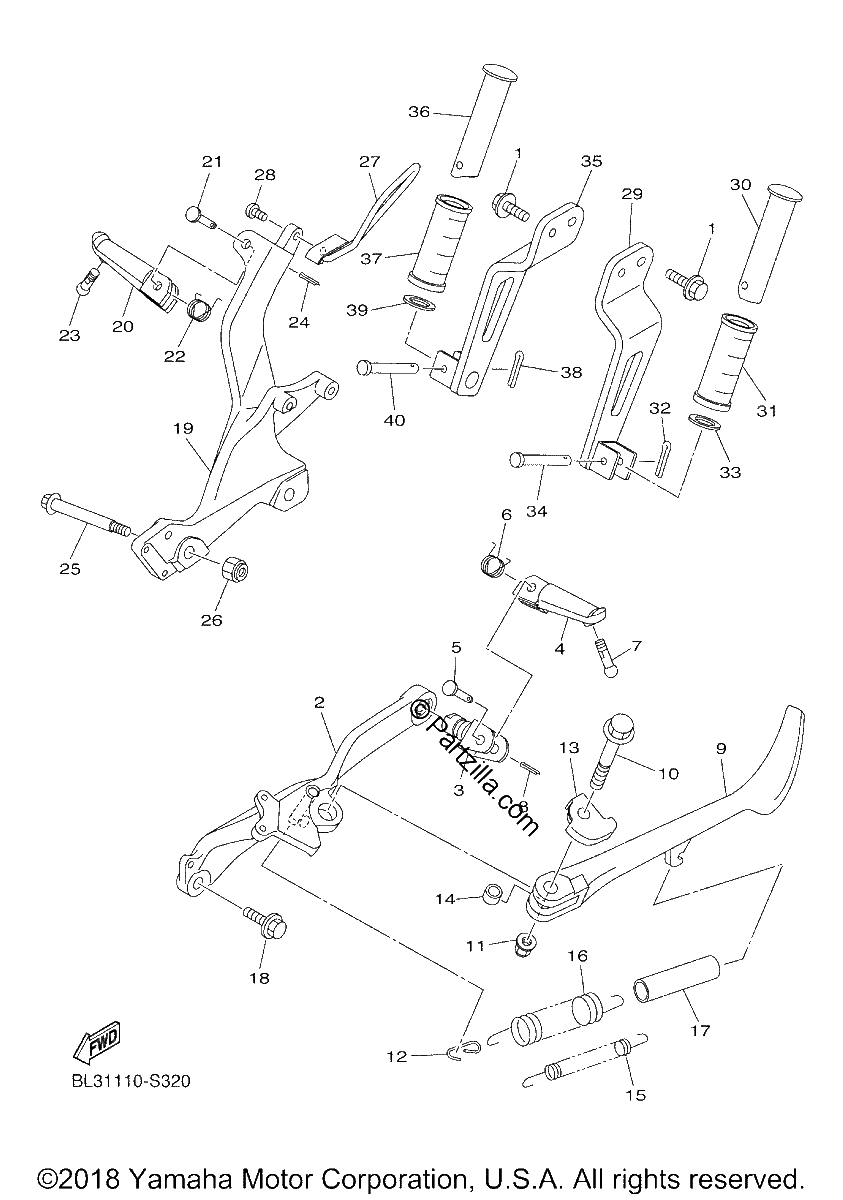

STAND FOOTREST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
Bolt, Flange
$9.81¢4 906
#2
FOOTREST 1
$328.89¢164 444
#3
FOOTREST 1
$35.49¢17 744
#4
Footrest
$22.34¢11 169
#5
PIN
$6.99¢3 494
#6
SPRING, TORSION
$7.94¢3 969
#7
BOLT
$7.09¢3 544
#8
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
#9
STAND, SIDE
$195.91¢97 956
#10
BOLT, FLANGE
$8.77¢4 387
#11
NUT, SELF-LOCKING
$6.81¢3 406
#12
LINK, SIDE STAND
$8.26¢4 131
#13
WASHER
$16.44¢8 219
#14
COLLAR
$19.52¢9 763
#15
SPRING, TENSION
$10.66¢5 331
#16
SPRING, TENSION
$15.34¢7 669
#17
HOSE (L60)
$7.28¢3 638
#18
BOLT, FLANGE
$8.19¢4 094
#19
FOOTREST 2
$301.25¢150 625
#20
FOOTREST
$25.92¢12 962
#21
PIN, CLEVIS
$4.84¢2 419
#22
SPRING, TORSION
$7.94¢3 969
#23
BOLT
$7.09¢3 544
#24
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
#25
BOLT, FLANGE
$4.95¢2 475
#26
NUT, SELF-LOCKING
$6.81¢3 406
#27
GUIDE, WIRE
$21.19¢10 594
#28
BOLT, BUTTON HEAD
$7.35¢3 675
#29
BRACKET 1
$85.65¢42 825
#30
FOOTREST, REAR 1
$33.55¢16 775
#31
COVER, REAR FOOTREST
$18.90¢9 450
#32
PIN, COTTER
$2.20¢1 100
#33
WASHER, PLATE
$8.24¢4 119
#34
PIN
$8.16¢4 081
#35
BRACKET 2
$79.31¢39 656
#36
FOOTREST, REAR 1
$33.55¢16 775
#37
COVER, REAR FOOTREST
$18.90¢9 450
#38
PIN, COTTER
$2.20¢1 100
#39
WASHER, PLATE
$8.24¢4 119
#40
PIN
$8.16¢4 081
