CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

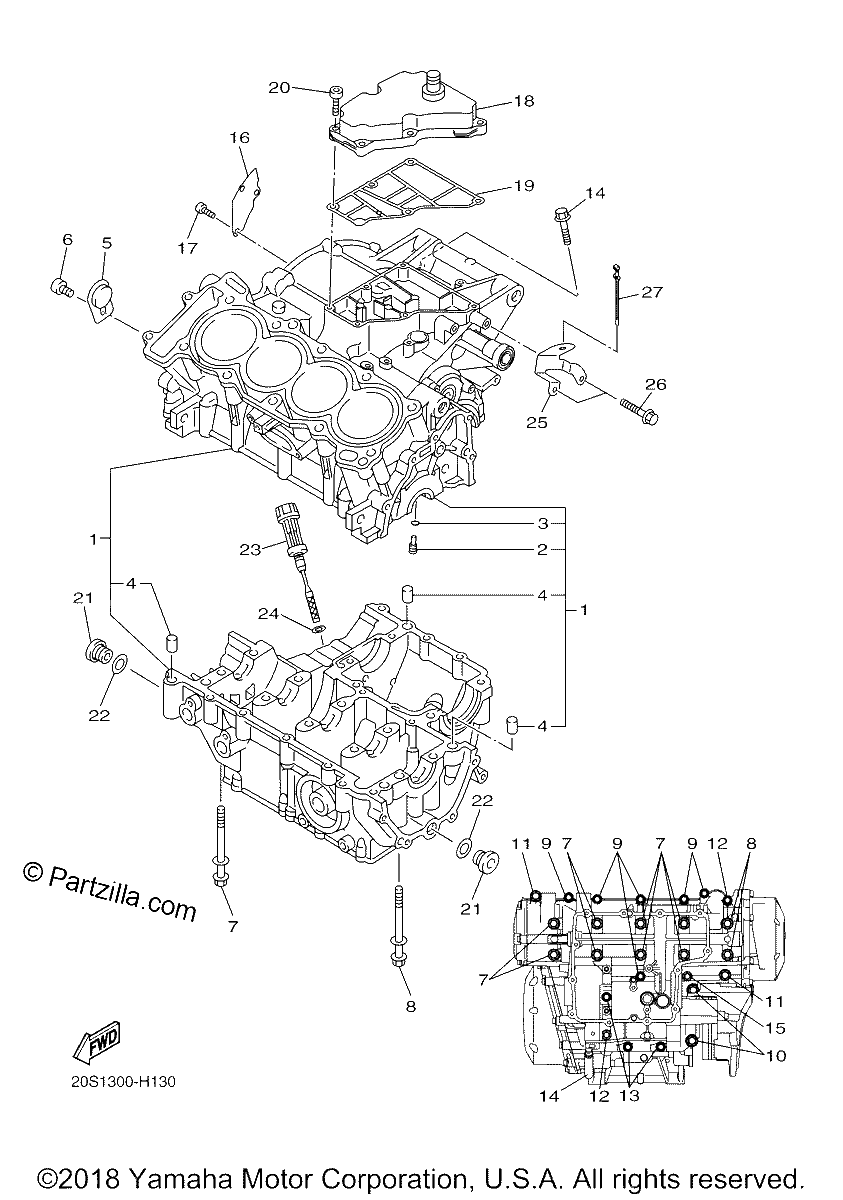

Diagrama de CRANKCASE

Repuestos

#1
20S-15100-09-00
CRANKCASE ASSY
$2134.39¢1 067 194
1
#2
5EB-15155-00-00
NOZZLE 3
$13.48¢6 739
1
#3
93210-04092-00
O-RING
$3.16¢1 581
1
#4
99530-10114-00
PIN,DOWEL
$2.50¢1 248
1
#5
5SL-15189-00-00
PLUG
$3.48¢1 742
1
#6
90149-06081-00
SCREW
$6.75¢3 375
1
#7
90119-08083-00
BOLT, WITH WASHER
$7.38¢3 691
1
#8
90119-08084-00
BOLT, WITH WASHER
$13.43¢6 716
1
#9
95812-06055-00
BOLT, FLANGE
$1.61¢805
1
#10
95814-08065-00
BOLT,FLANGE (replaces 95812-08065-00)
$3.86¢1 932
1
#11
90109-06168-00
BOLT
No Disponible
1
#12
95812-06065-00
BOLT, FLANGE
$5.65¢2 823
1
#13
95817-06045-00
BOLT, FLANGE
$6.76¢3 381
1
#14
95812-06100-00
BOLT, FLANGE
$2.63¢1 317
1
#15
90105-06147-00
BOLT, FLANGE
$2.13¢1 064
1
#16
20S-11165-00-00
PLATE, BREATHER
$3.68¢1 840
1
#17
90149-06081-00
SCREW
$6.75¢3 375
1
#18
20S-15413-00-00
COVER
$76.88¢38 439
1
#19
20S-15462-00-00
GASKET, CRANKCASE COVER 3
$3.83¢1 915
1
#20
91317-06025-00
BOLT
$2.24¢1 121
1
#21
36Y-15189-00-00
PLUG
$13.19¢6 595
1
#22
93210-16325-00
O-RING
$6.43¢3 214
1
#23
5EB-15362-10-00
PLUG, OIL LEVEL
$39.30¢19 648
1
#24
93210-09350-00
O-RING (replaces 93210-09165-00)
$6.36¢3 180
1
#25
20S-15544-00-00
STAY 1
$10.65¢5 325
1
#26
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#27
90464-34002-00
CLAMP
$1.82¢909
1
