CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

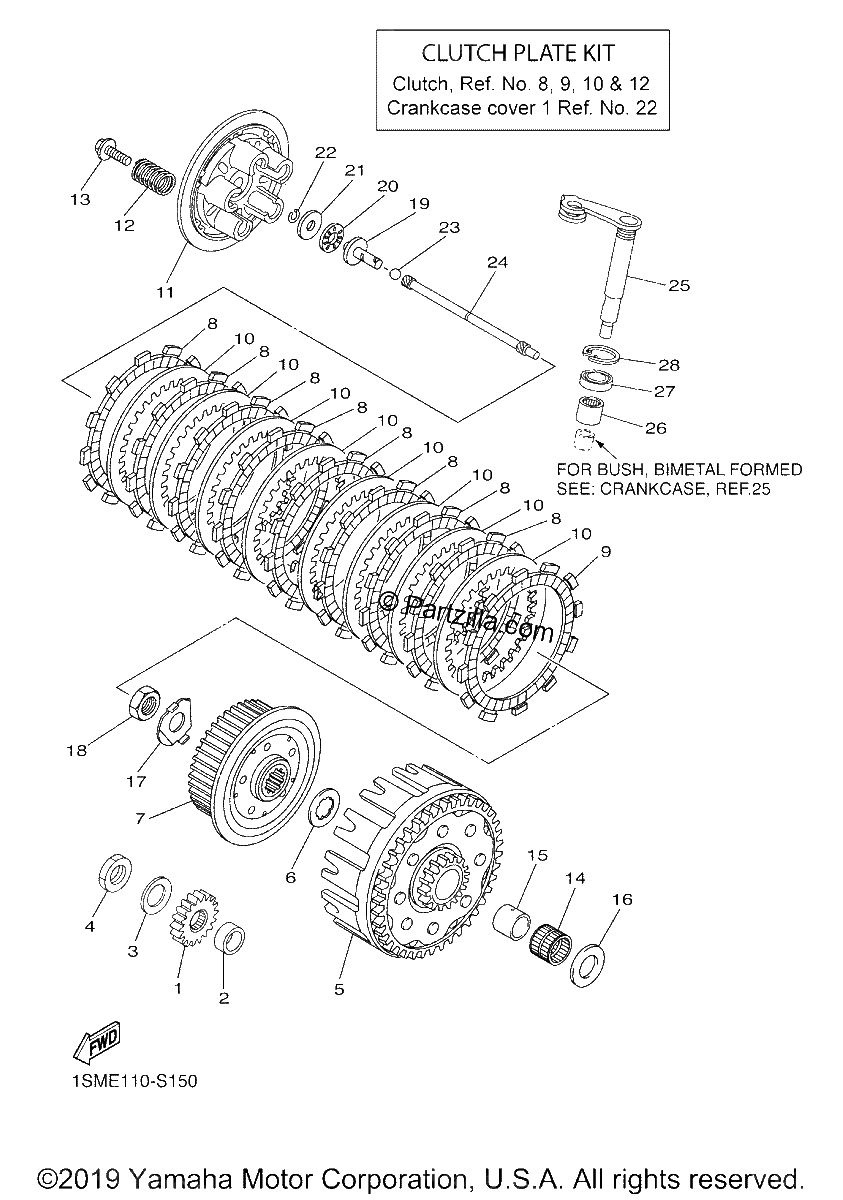

Diagrama de CLUTCH

Repuestos

#1
1SM-16111-10-00
GEAR, PRIMARY DRIVE
$56.04¢28 019
1
#2
90387-19008-00
COLLAR
$9.91¢4 956
1
#3
90208-16019-00
WASHER, CONICAL SPRING
$7.34¢3 669
1
#4
90170-16003-00
NUT
$3.57¢1 787
1
#5
1SM-16150-00-00
PRIMARY DRIVEN GEAR COMP.
$558.45¢279 225
1
#6
1SM-16154-00-00
PLATE, THRUST 1
$7.52¢3 762
1
#7
5NL-16371-50-00
BOSS, CLUTCH
$272.99¢136 494
1
#8
5XC-16321-00-00
PLATE, FRICTION
$16.06¢8 031
1
#9
1SM-16331-00-00
PLATE, FRICTION 2
$26.70¢13 350
1
#10
5NL-16325-00-00
PLATE, CLUTCH 2
$8.95¢4 475
1
#11
1SM-16351-00-00
PLATE, PRESSURE 1
$78.64¢39 319
1
#12
90501-230A6-00
SPRING, COMPRESSION
$3.59¢1 794
1
#13
90159-06029-00
SCREW, WITH WASHER
$8.97¢4 488
1
#14
93310-225N0-00
BEARING,CYL.#10
$47.27¢23 638
1
#15
1SM-16181-00-00
SPACER 1
$37.88¢18 938
1
#16
90201-204K8-00
WASHER, PLATE
$8.69¢4 344
1
#17
90215-16289-00
WASHER, LOCK
$7.30¢3 650
1
#18
90170-16326-00
NUT
$13.11¢6 556
1
#19
1SM-16356-00-00
ROD, PUSH 1
$53.85¢26 925
1
#20
93340-21008-00
BEARING
$29.30¢14 650
1
#21
90201-080H1-00
WASHER, PLATE
$4.56¢2 281
1
#22
93440-07182-00
CIRCLIP
$3.74¢1 869
1
#23
93511-32027-00
BALL
$7.34¢3 669
1
#24
1SM-16357-00-00
ROD, PUSH 2
$47.50¢23 750
1
#25
1SM-16381-10-00
PUSH LEVER COMP.
$104.90¢52 450
1
#26
93317-11096-00
BEARING
$23.80¢11 900
1
#27
93102-10008-00
Oil Seal
$5.54¢2 769
1
#28
99009-18500-00
Circlip
$0.69¢344
1
#29
1SM-W001G-10-00
Clutch Plate Kit
$176.59¢88 294
1
