REAR ARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

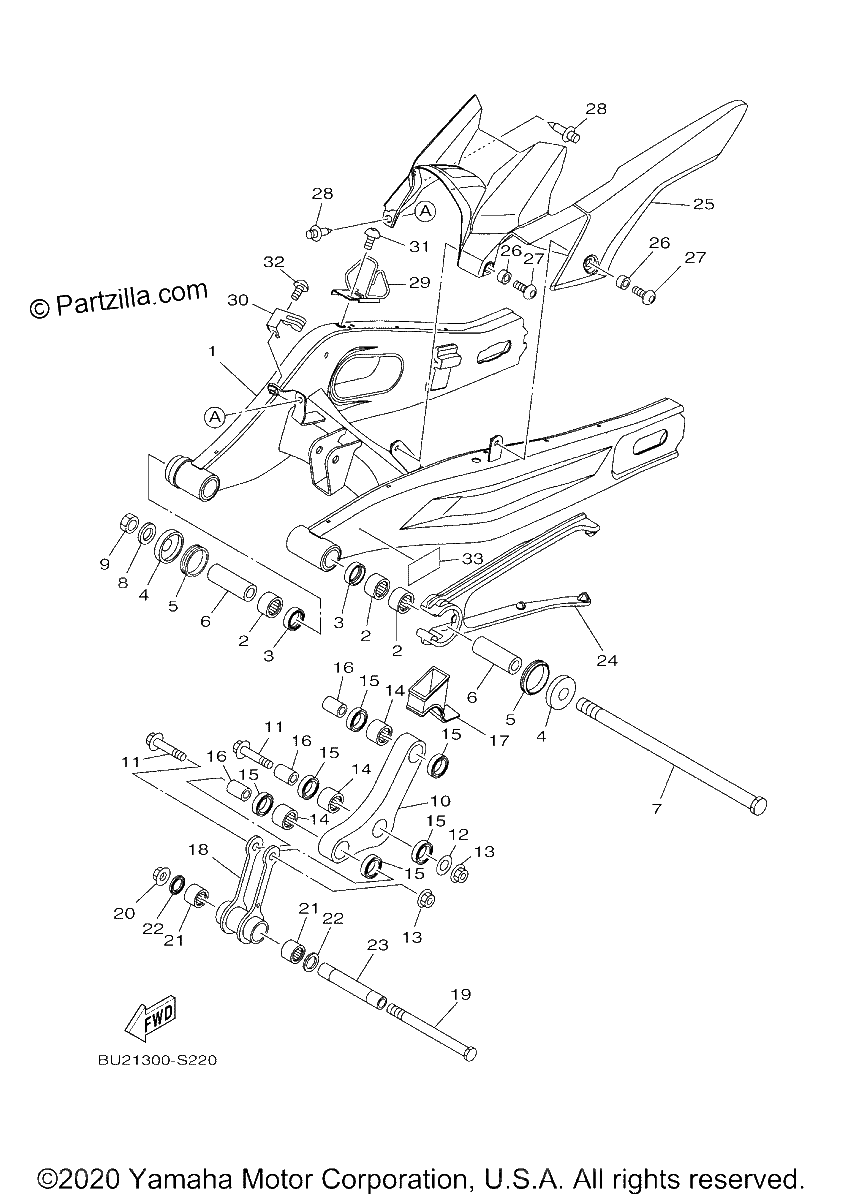

Diagrama de REAR ARM

Repuestos

#1
1WS-22110-10-00
REAR ARM COMP.
$903.74¢451 869
1
#2
93317-22262-00
BEARING
$40.65¢20 325
1
#3
93106-22019-00
OIL SEAL,DD-TYPE
$11.13¢5 563
1
#4
30X-2219X-00-00
COVER
$17.01¢8 506
1
#5
93108-35004-00
OIL SEAL (35-41-8)
$14.98¢7 488
1
#6
90380-16158-00
BUSH,SOLID
$33.75¢16 875
1
#7
1UY-22141-10-00
Shaft, Pivot
$65.79¢32 894
1
#8
90201-164H4-00
WASHER,PLATE
$9.55¢4 775
1
#9
90185-16002-00
NUT, SELF-LOCKING
$18.00¢9 000
1
#10
1WS-2217A-00-00
ARM, RELAY
$112.71¢56 356
1
#11
90105-10728-00
BOLT, WASHER BASED (replaces 90105-102A6-00)
$8.92¢4 462
1
#12
90201-10045-00
WASHER, PLATE
$7.34¢3 669
1
#13
95602-10200-00
NUT, U FLANGE
$2.73¢1 363
1
#14
93315-31758-00
BEARING
$41.35¢20 675
1
#15
93109-17071-00
OIL SEAL
$8.03¢4 013
1
#16
90387-1012A-00
COLLAR
$21.18¢10 588
1
#17
1WS-22189-00-00
Boot, Rubber
$8.60¢4 300
1
#18
1WS-2217F-00-00
ROD, CONNECTING 1
$71.29¢35 644
1
#19
90101-12049-00
bolt
$20.04¢10 019
1
#20
95602-12200-00
NUT, SELF-LOCKING
$4.55¢2 275
1
#21
93317-31771-00
BEARING
$37.88¢18 938
1
#22
93109-17071-00
OIL SEAL
$8.03¢4 013
1
#23
1WS-22184-00-00
Bush
$24.64¢12 319
1
#24
1WS-22151-01-00
SEAL, GUARD (replaces 1WS-22151-00-00)
$20.49¢10 244
1
#25
1WS-21650-00-00
REAR FENDER COMP.
$99.29¢49 644
1
#26
90387-06344-00
Collar
$2.51¢1 256
1
#27
90111-06119-00
BOLT, HEX. SOCKET BUTTON
$7.46¢3 731
1
#28
90269-07007-00
RIVET
$4.00¢2 000
1
#29
BU2-25887-00-00
HOLDER, BRAKE HOSE (replaces 1WS-25887-00-00)
$26.04¢13 019
1
#30
1WS-2588F-00-00
HOLDER, BRAKE HOSE
$35.48¢17 738
1
#31
92014-06016-00
BOLT, BUTTON HEAD (replaces 90111-06008-00)
$7.34¢3 669
1
#32
92017-06010-00
BOLT, BUTTON HEAD
$3.65¢1 825
1
#33
1TP-21668-00-00
LABEL, TIRE
$2.20¢1 100
1
