STEERING

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

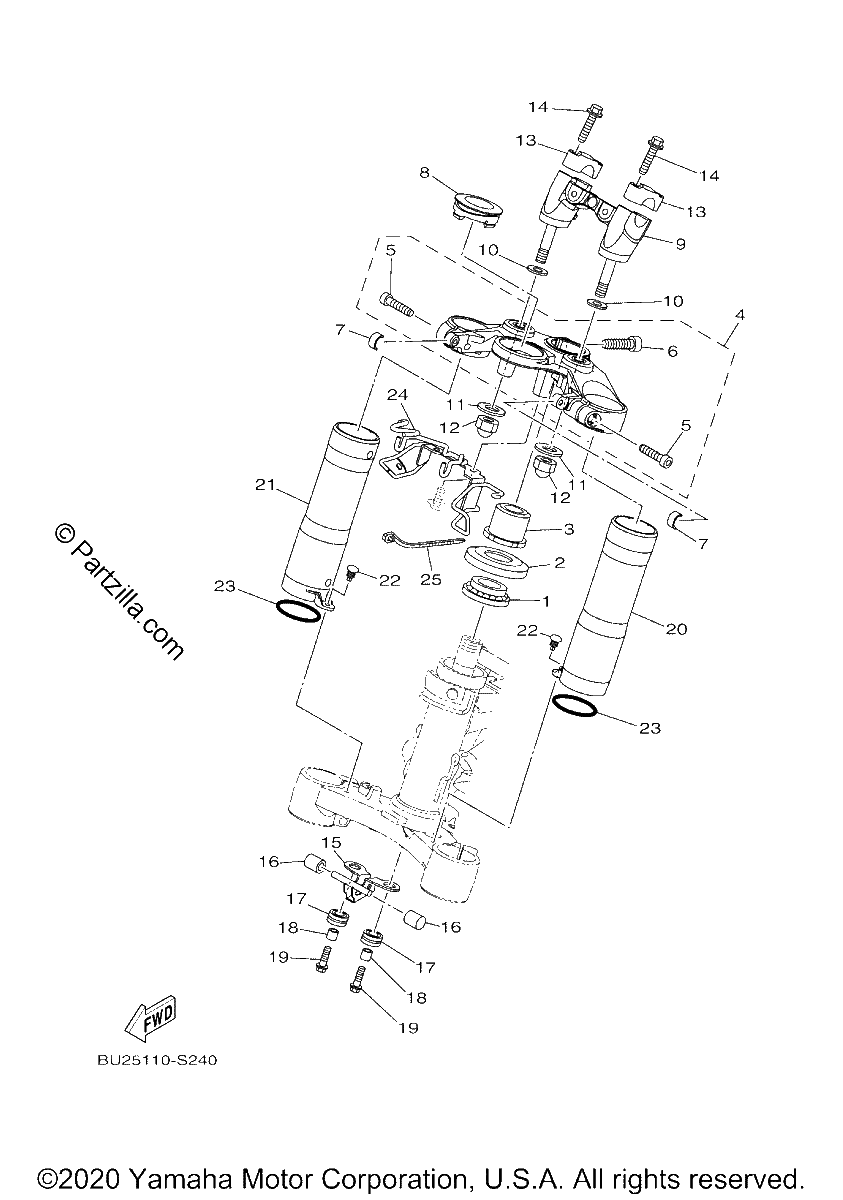

Diagrama de STEERING

Repuestos

#1
93399-99931-00
BEARING
$55.60¢27 801
1
#2
1W1-23416-00-00
COVER, BALL RACE 2
$28.30¢14 151
1
#3
1WS-23357-00-00
Nut
$42.71¢21 356
1
#4
1WS-23430-00-00
HANDLE CROWN COMP.
$504.85¢252 425
1
#5
91314-08030-00
BOLT, HEXAGON SOCKET HEAD
$2.51¢1 254
1
#6
91314-10035-00
bolt
$4.23¢2 116
1
#7
1WS-84136-00-00
DAMPER, HEADLIGHT
$2.68¢1 340
1
#8
36P-82552-00-00
CAP, SWITCH
$13.78¢6 889
1
#9
1WS-23442-00-P0
HOLDER, HANDLE LOW
$107.88¢53 941
1
#10
92990-10200-00
WASHER (replaces 92902-10200-00)
$3.14¢1 570
1
#11
90201-10043-00
WASHER, plate
$2.05¢1 023
1
#12
90176-10003-00
NUT, CROWN
$7.95¢3 973
1
#13
1E6-23441-10-P0
HOLDER, HANDLE UPPER
$23.91¢11 954
1
#14
95022-08035-00
Bolt, Flange
$3.56¢1 783
1
#15
1WS-2334G-00-00
BRACKET 1
$14.51¢7 256
1
#16
1WS-84527-00-00
Damper
$1.74¢868
1
#17
3C3-83513-00-00
Damper
$7.04¢3 519
1
#18
90387-06026-00
COLLAR
$7.58¢3 789
1
#19
95D37-06025-00
BOLT, FLANGE DEEP RECESS
$1.00¢500
1
#20
1WS-23121-00-00
COVER, UPPER 1
$7.81¢3 904
1
#21
1WS-23131-00-00
COVER, UPPER 2
$7.38¢3 691
1
#22
90269-05055-00
RIVET,SPEC'L SHAPE
$7.67¢3 835
1
#23
93210-40M10-00
O-Ring
$5.83¢2 915
1
#24
BU2-2334H-10-00
BRACKET 2
$72.24¢36 122
1
#25
90464-25004-00
Clamp
$2.59¢1 294
1
