REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

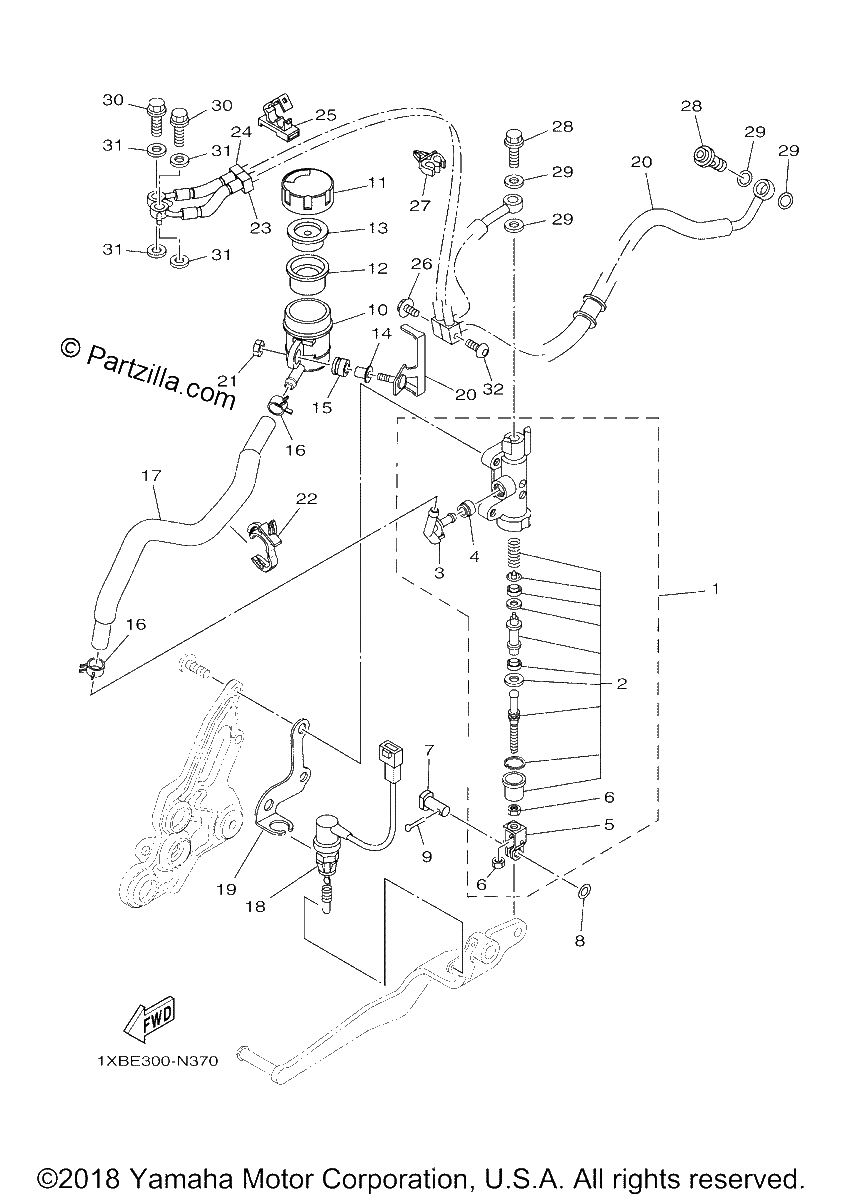

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
4P5-2583V-00-00
REAR MASTER CYLINDER ASSY.
$142.77¢71 386
1
#2
5VX-W0042-51-00
CYLINDER KIT, MASTER
$92.60¢46 299
1
#3
2D1-2582A-00-00
JOINT
$112.06¢56 028
1
#4
4BP-2585F-01-00
O-RING
$10.48¢5 238
1
#5
4BP-27222-02-00
JOINT
$29.55¢14 777
1
#6
90170-08010-00
NUT
$6.89¢3 444
1
#7
90240-08005-00
PIN, CLEVIS
$6.75¢3 375
1
#8
90201-08070-00
WASHER, plate
$7.06¢3 530
1
#9
91401-20012-00
PIN, COTTER
$2.02¢1 012
1
#10
14B-25894-00-00
TANK, RESERVOIR
$60.89¢30 446
1
#11
2C0-25852-00-00
CAP, RESERVOIR
$6.29¢3 145
1
#12
2VN-25854-00-00
DIAPHRAGM, RESERVOIR
$21.50¢10 753
1
#13
2VN-25855-00-00
BUSH,DIAPHRAGM
$10.43¢5 215
1
#14
90387-05028-00
COLLAR
$6.39¢3 197
1
#15
2C0-26326-00-00
GROMMET
$5.91¢2 956
1
#16
90467-11044-00
CLIP,SCISSOR (replaces 90467-12053-00)
$5.75¢2 875
1
#17
1WS-25895-00-00
Hose, Reservoir
$21.98¢10 988
1
#18
1WS-82530-01-00
STOP SWITCH ASSY (replaces 1WS-82530-00-00)
$37.42¢18 711
1
#19
1WS-2144G-00-00
STAY, STOP SWITCH
$11.44¢5 721
1
#20
1WS-2582E-00-00
HOLDER, RESERVE TA
$8.02¢4 008
1
#21
95707-05500-00
NUT, FLANGE
$6.76¢3 381
1
#22
90464-17008-00
CLAMP
$2.21¢1 104
1
#23
1XB-2584D-00-00
HOSE, BRAKE
$200.65¢100 326
1
#24
1XB-2584E-00-00
BRAKE HOSE ASSY 5
$177.71¢88 855
1
#25
90464-07014-00
CLAMP
$2.53¢1 265
1
#26
90105-06148-00
Bolt, Flange
$6.82¢3 410
1
#27
90464-07009-00
CLAMP
$2.02¢1 012
1
#28
90401-10020-00
BOLT, UNION
$9.07¢4 537
1
#29
90430-10005-00
GASKET
$7.72¢3 858
1
#30
90401-10172-00
BOLT, UNION
$4.06¢2 030
1
#31
90430-10005-00
GASKET
$7.72¢3 858
1
#32
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
