CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

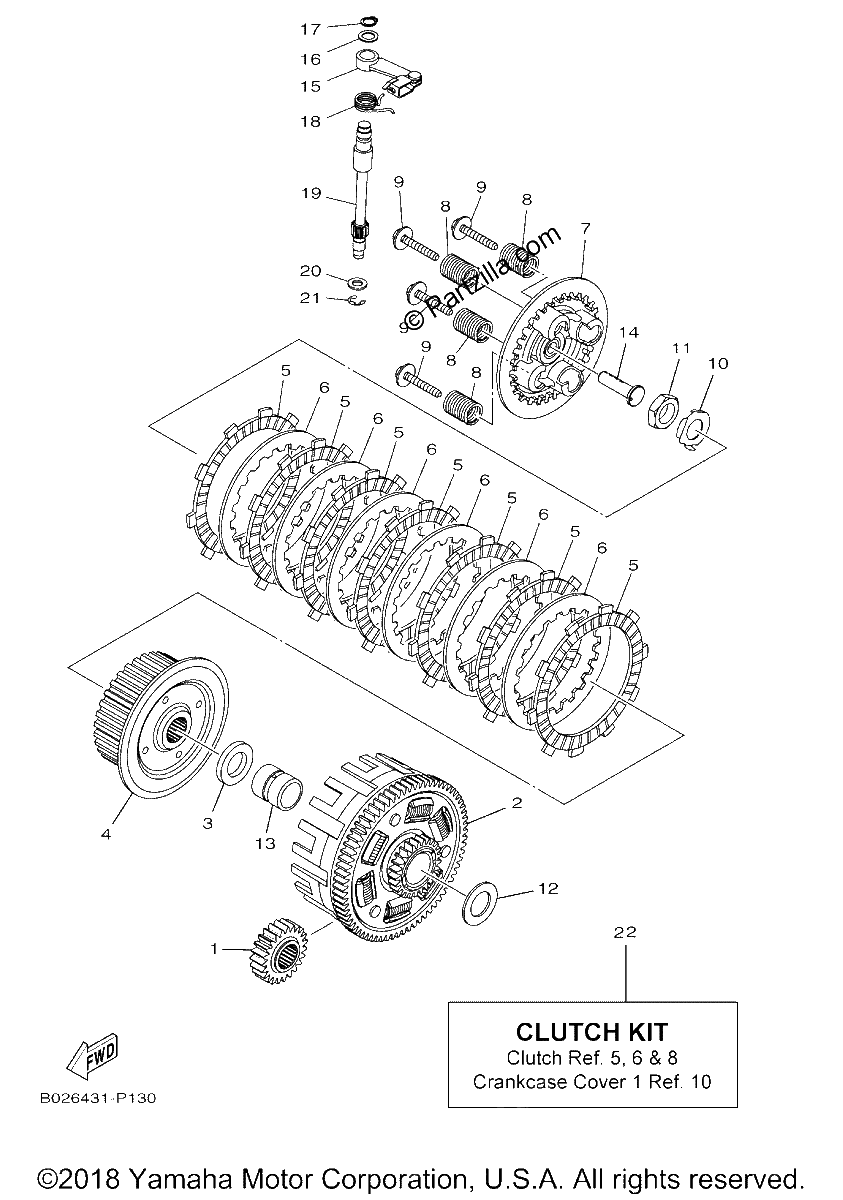

Diagrama de CLUTCH

Repuestos

#1
1WD-E6111-00-00
GEAR, PRIMARY DRIVE
$142.24¢71 119
1
#2
2MS-E6150-00-00
PRIMARY DRIVEN GEAR COMP.
$166.44¢83 219
1
#3
1WD-E6154-00-00
PLATE, THRUST 1
$13.60¢6 800
1
#4
2MS-E6371-00-00
BOSS, CLUTCH
$59.90¢29 950
1
#5
1WD-E6331-00-00
PLATE, FRICTION 2
$23.64¢11 819
1
#6
1WD-E6324-00-00
PLATE, CLUTCH 1
$9.91¢4 956
1
#7
2MS-E6350-01-00
PRESSURE PLATE ASSY
$37.25¢18 625
1
#8
2MS-E6333-10-00
SPRING, CLUTCH 1
$8.97¢4 488
1
#9
1WD-E6337-00-00
SCREW, SPRING
$0.90¢450
1
#10
90215-18800-00
WASHER, LOCK
$2.29¢1 144
1
#11
90170-18221-00
NUT
$14.98¢7 488
1
#12
90201-22013-00
WASHER, PLATE
$8.20¢4 100
1
#13
1WD-E6181-00-00
SPACER 1
$22.21¢11 106
1
#14
1WD-E6356-00-00
ROD, PUSH 1
$73.34¢36 669
1
#15
2MS-E6340-00-00
PUSH LEVER ASSY
$21.55¢10 775
1
#16
90201-10843-00
WASHER, PLATE
$1.33¢663
1
#17
99009-10400-00
CIRCLIP
$4.65¢2 325
1
#18
90508-18136-00
SPRING, TORSION
$3.81¢1 906
1
#19
1WD-16382-00-00
AXLE, PUSH LEVER
$50.06¢25 031
1
#20
92990-08600-00
WASHER, PLATE
$2.76¢1 381
1
#21
99080-07600-00
CIRCLIP
$3.60¢1 800
1
#22
2MS-W001G-00-00
Clutch Plate Kit
$277.09¢138 544
1
