COWLING 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

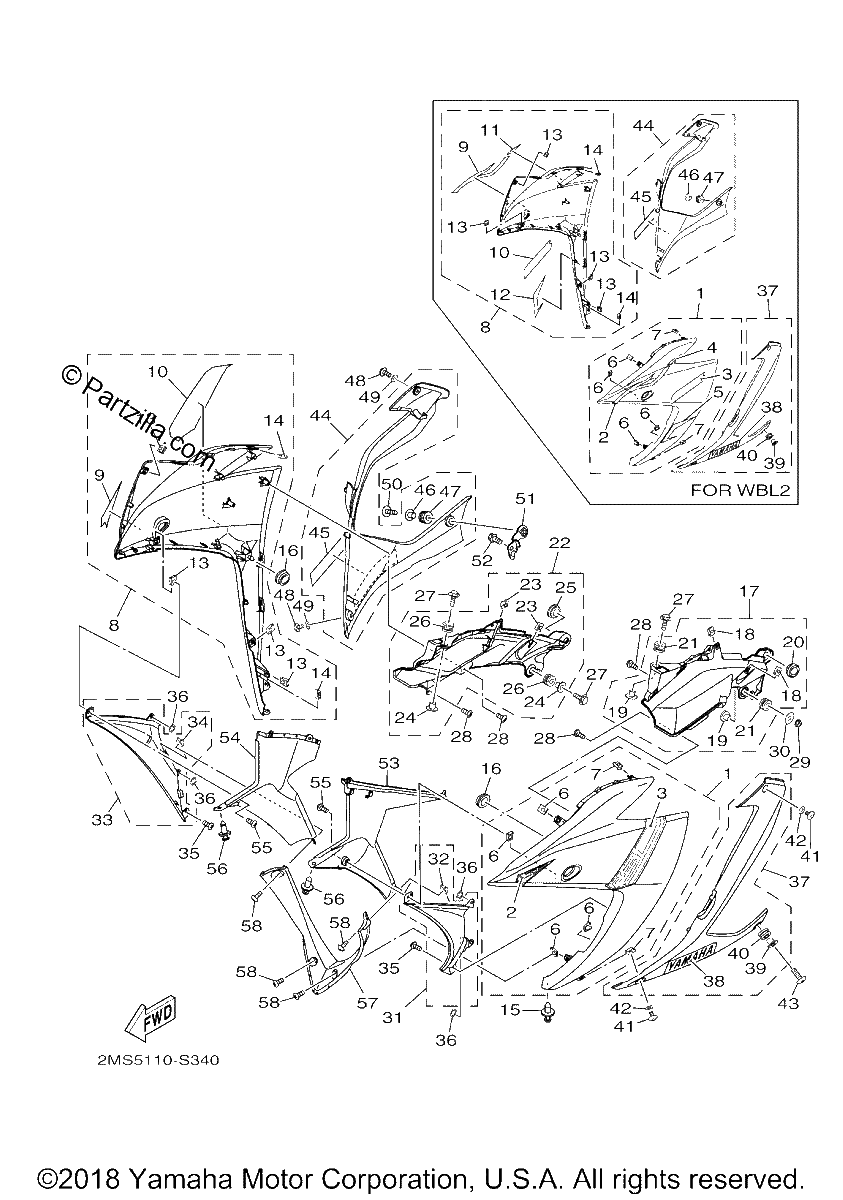

Diagrama de COWLING 1

Repuestos

#1
1WD-XF83L-10-P5
BODY, FR. UNDER 1 SU
$113.52¢56 758
1
#1
1WD-XF83L-50-P3
BODY, FR. UNDER 1 SU
$112.35¢56 177
1
#2
1WD-F8393-B0-00
GRAPHIC 3
$11.26¢5 629
1
#2
1WD-F8393-A0-00
GRAPHIC 3
$2.58¢1 288
1
#3
2MS-F8398-70-00
GRAPHIC 5
$8.82¢4 410
1
#3
2MS-F8398-80-00
GRAPHIC 5
$1.60¢799
1
#4
1WD-F83GA-90-00
GRAPHIC, 7
$3.76¢1 880
1
#5
1WD-F83GC-40-00
GRAPHIC, 9
$3.55¢1 777
1
#6
90183-05042-00
NUT, SPRING
$1.15¢575
1
#7
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#8
1WD-XF83M-50-P3
BODY, FR. UNDER 2 SU
$112.35¢56 177
1
#8
1WD-XF83M-10-P5
BODY, FR. UNDER 2 SU
$113.52¢56 758
1
#9
1WD-F8394-B0-00
GRAPHIC 4
$3.42¢1 708
1
#9
1WD-F8394-A0-00
GRAPHIC 4
$2.58¢1 288
1
#10
2MS-F8398-80-00
GRAPHIC 5
$1.60¢799
1
#10
2MS-F8399-70-00
GRAPHIC 6
$8.82¢4 410
1
#11
1WD-F83GB-90-00
GRAPHIC, 8
$3.76¢1 880
1
#12
1WD-F83GD-40-00
GRAPHIC, 10
$3.55¢1 777
1
#13
90183-05042-00
NUT, SPRING
$1.15¢575
1
#14
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#15
90269-06081-00
RIVET
$6.23¢3 117
1
#16
90480-01558-00
Grommet
$4.31¢2 156
1
#17
1WD-XF11W-00-P4
COVER 7
$60.86¢30 429
1
#17
1WD-XF11W-00-P2
COVER 7 | Use for Color Black Metallic X ( SMX / 0903 )
$58.24¢29 118
1
#18
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#19
90387-06899-00
COLLAR
$2.70¢1 351
1
#20
90480-01558-00
Grommet
$4.31¢2 156
1
#21
90480-12808-00
GROMMET
$2.71¢1 357
1
#22
1WD-XF11X-00-P3
COVER 8
$12.01¢6 003
1
#22
1WD-XF11X-00-P2
COVER 8 | Use for Color Black Metallic X ( SMX / 0903 )
$58.24¢29 118
1
#23
90183-050A7-00
NUT, SPRING
$2.86¢1 432
1
#24
90387-06899-00
COLLAR
$2.70¢1 351
1
#25
90480-01558-00
Grommet
$4.31¢2 156
1
#26
90480-12808-00
GROMMET
$2.71¢1 357
1
#27
90119-06096-00
BOLT,WITH WASHER
$3.38¢1 691
1
#28
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#29
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#30
90201-06380-00
WASHER PLAIN
$0.63¢316
1
#31
1WD-XF835-00-P1
PANEL ASSY
$22.97¢11 483
1
#31
1WD-XF835-00-P0
PANEL ASSY
$24.53¢12 265
1
#32
90183-05042-00
NUT, SPRING
$1.15¢575
1
#33
1WD-XF83B-00-P1
PANEL ASSY 2
$25.13¢12 564
1
#33
1WD-XF83B-00-P0
PANEL ASSY 2
$24.85¢12 426
1
#34
90183-05042-00
NUT, SPRING
$1.15¢575
1
#35
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#36
90183-06008-00
NUT,SPRING
$7.31¢3 657
1
#37
1WD-XF838-10-P2
UNDER COVER ASSY 1
$71.44¢35 719
1
#37
1WD-XF838-00-P3
UNDER COVER ASSY 1
$62.19¢31 096
1
#38
1WD-F8328-30-00
EMBLEM | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$5.01¢2 507
1
#38
1WD-F8328-50-00
EMBLEM
$3.07¢1 535
1
#39
90387-06899-00
COLLAR
$2.70¢1 351
1
#40
90480-12808-00
GROMMET
$2.71¢1 357
1
#41
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#42
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#43
90111-06117-00
BOLT, HEX. SOCKET BUTTON
$1.61¢805
1
#44
1WD-XF839-10-P2
UNDER COVER ASSY 2
$71.44¢35 719
1
#44
1WD-XF839-00-P3
UNDER COVER ASSY 2
$61.15¢30 573
1
#45
1WD-F8328-50-00
EMBLEM
$3.07¢1 535
1
#45
1WD-F8328-30-00
EMBLEM | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$5.01¢2 507
1
#46
90387-06899-00
COLLAR
$2.70¢1 351
1
#47
90480-12808-00
GROMMET
$2.71¢1 357
1
#48
90111-05003-00
BOLT, HEX. SOCKET BUTTON
$6.75¢3 375
1
#49
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#50
90111-06117-00
BOLT, HEX. SOCKET BUTTON
$1.61¢805
1
#51
1WD-F833E-00-00
BRACKET 8
$12.55¢6 273
1
#52
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#53
1WD-F836K-00-00
PANEL, INNER 1
$6.55¢3 278
1
#54
1WD-F836L-00-00
PANEL, INNER 2
$6.69¢3 347
1
#55
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#56
90269-06081-00
RIVET
$6.23¢3 117
1
#57
1WD-F836M-00-00
PANEL, INNER 3
$41.00¢20 499
1
#58
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
