CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

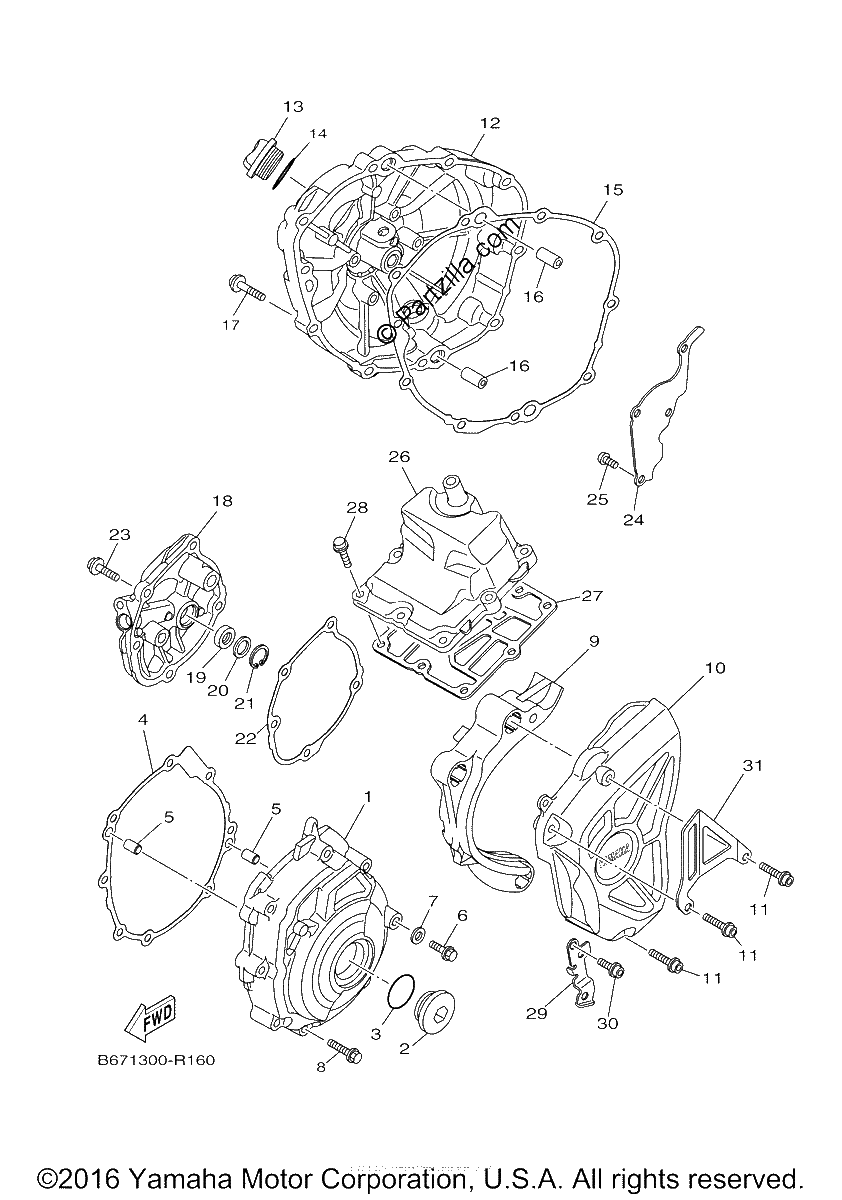

Diagrama de CRANKCASE COVER 1

Repuestos

#1
B67-15411-00-00
COVER, CRANKCASE 1
$155.09¢77 544
1
#2
90340-32010-00
PLUG, STRAIGHT SCREW
$45.39¢22 694
1
#3
93210-32172-00
O-Ring
$6.88¢3 438
1
#4
2CR-15451-00-00
GASKET, CRANKCASE COVER 1
$16.07¢8 038
1
#5
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#6
92014-08016-00
BOLT, BUTTON HEAD
$7.94¢3 969
1
#7
90430-08143-00
GASKET
$3.67¢1 838
1
#8
90110-06403-00
BOLT, HEXAGON SOCKET HEAD
$2.54¢1 269
1
#9
2CR-15377-10-00
GUIDE, INLET
$49.07¢24 537
1
#10
2CR-15418-00-00
COVER, CHAIN CASE
$26.39¢13 194
1
#11
90110-06387-00
BOLT, HEXAGON SOCKET (replaces 90110-06390-00)
$2.95¢1 475
1
#12
B67-15421-00-00
COVER, CRANKCASE 2
$209.75¢104 875
1
#13
2CR-15363-01-00
PLUG, OIL
$12.52¢6 262
1
#14
93210-29574-00
O-RING
$7.63¢3 813
1
#15
2CR-15461-00-00
GASKET, CRANKCASE COVER 2
$23.52¢11 763
1
#16
93610-20189-00
PIN, DOWEL
$4.13¢2 063
1
#17
90110-06388-00
BOLT, HEXAGON SOCKET HEAD
$5.84¢2 919
1
#18
B67-15416-00-00
COVER, OIL PUMP
$76.59¢38 294
1
#19
93101-10004-00
OIL SEAL
$9.14¢4 569
1
#20
90201-12166-00
WASHER, PLATE (replaces 90201-128C9-00)
$7.48¢3 738
1
#21
99009-19500-00
CIRCLIP
$1.06¢531
1
#22
2CR-15456-00-00
GASKET, OIL PUMP COVER 1
$11.90¢5 950
1
#23
90110-06396-00
BOLT, HEXAGON SOCKET HEAD
$2.97¢1 487
1
#24
2CR-11165-00-00
PLATE, BREATHER
$3.75¢1 875
1
#25
90149-06156-00
SCREW
$7.56¢3 781
1
#26
2CR-15413-00-00
COVER
$126.14¢63 069
1
#27
2CR-15462-00-00
GASKET, CRANKCASE COVER 3
$11.06¢5 531
1
#28
90110-06387-00
BOLT, HEXAGON SOCKET (replaces 90110-06390-00)
$2.95¢1 475
1
#29
B67-15118-00-00
HOLDER
$9.56¢4 781
1
#30
90110-06341-00
BOLT, HEXAGON SOCKET HEAD
$3.16¢1 581
1
#31
B67-15128-00-00
HOLDER
$9.85¢4 925
1
