ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

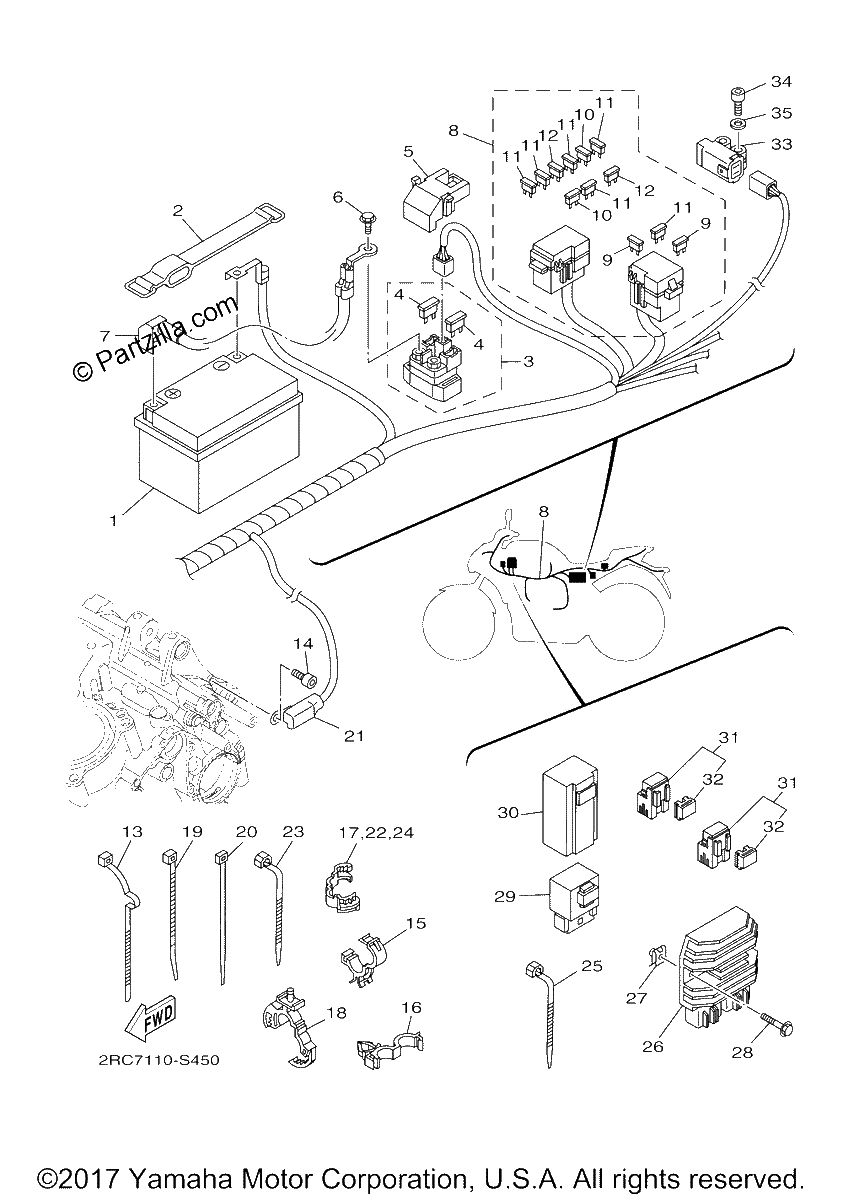

Diagrama de ELECTRICAL 1

Repuestos

#1
YTZ-10S00-00-00
YTZ10S YUASA BATTER
$216.40¢108 198
1
#2
1WS-82131-00-00
BAND, BATTERY
$8.11¢4 054
1
#3
1XC-81940-00-00
STARTER RELAY ASSY (RC19-089B)
$62.64¢31 320
1
#4
1AE-82151-00-00
FUSE (30A-BL)
$6.82¢3 410
1
#5
5SL-82119-10-00
COVER, LEAD WIRE
$4.45¢2 225
1
#6
95022-06008-00
BOLT, FLANGE
$6.87¢3 433
1
#7
1WS-82115-01-00
WIRE, PLUS LEAD
$20.18¢10 091
1
#8
2RC-82590-10-00
WIRE HARNESS ASSY
$775.09¢387 544
1
#9
5JJ-82151-80-00
FUSE (2A-BL)
$7.75¢3 875
1
#10
5JJ-82151-00-00
FUSE (7.5A-BL)
$6.51¢3 254
1
#11
67F-82151-40-00
FUSE (10A)
$7.13¢3 565
1
#12
67F-82151-50-00
FUSE (15A)
$4.08¢2 041
1
#13
90464-07M40-00
CLAMP
$15.25¢7 624
1
#14
91380-06012-00
BOLT
$2.05¢1 023
1
#15
90464-20191-00
Clamp
$8.06¢4 031
1
#16
90464-18007-00
CLAMP
$3.29¢1 644
1
#17
90464-14010-00
CLAMP
$3.52¢1 759
1
#18
90464-18011-00
CLAMP
$3.59¢1 794
1
#19
1UA-82591-00-00
BAND
$4.52¢2 260
1
#20
90464-65001-00
CLAMP
$5.51¢2 754
1
#21
1WS-81916-00-00
COVER, TERMINAL
$4.80¢2 398
1
#22
90464-14010-00
CLAMP
$3.52¢1 759
1
#23
90464-15195-00
CLAMP
$3.04¢1 518
1
#24
90464-14010-00
CLAMP
$3.52¢1 759
1
#25
90464-25004-00
Clamp
$2.59¢1 294
1
#26
27D-81960-00-00
RECTIFIER REGULATOR ASSY
$298.42¢149 212
1
#27
90183-060A6-00
NUT, SPRING
$4.58¢2 289
1
#28
95022-06020-00
BOLT, FLANGE
$3.65¢1 823
1
#29
5VK-81950-50-00
RELAY ASSY (G8R-30Y-V5)
$56.00¢28 002
1
#30
1WS-8246B-00-00
COVER 1
$8.96¢4 479
1
#31
1TP-81950-00-00
RELAY ASSY (1TP-00)
$14.34¢7 170
1
#32
5EA-81952-00-00
HOLDER, RELAY
$7.38¢3 691
1
#33
5PS-82576-01-00
SENSOR, LEAN ANGLE
$87.63¢43 815
1
#34
91312-04025-00
BOLT
$1.69¢845
1
#35
90201-04030-00
WASHER, PLATE
$1.66¢828
1
