STARTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

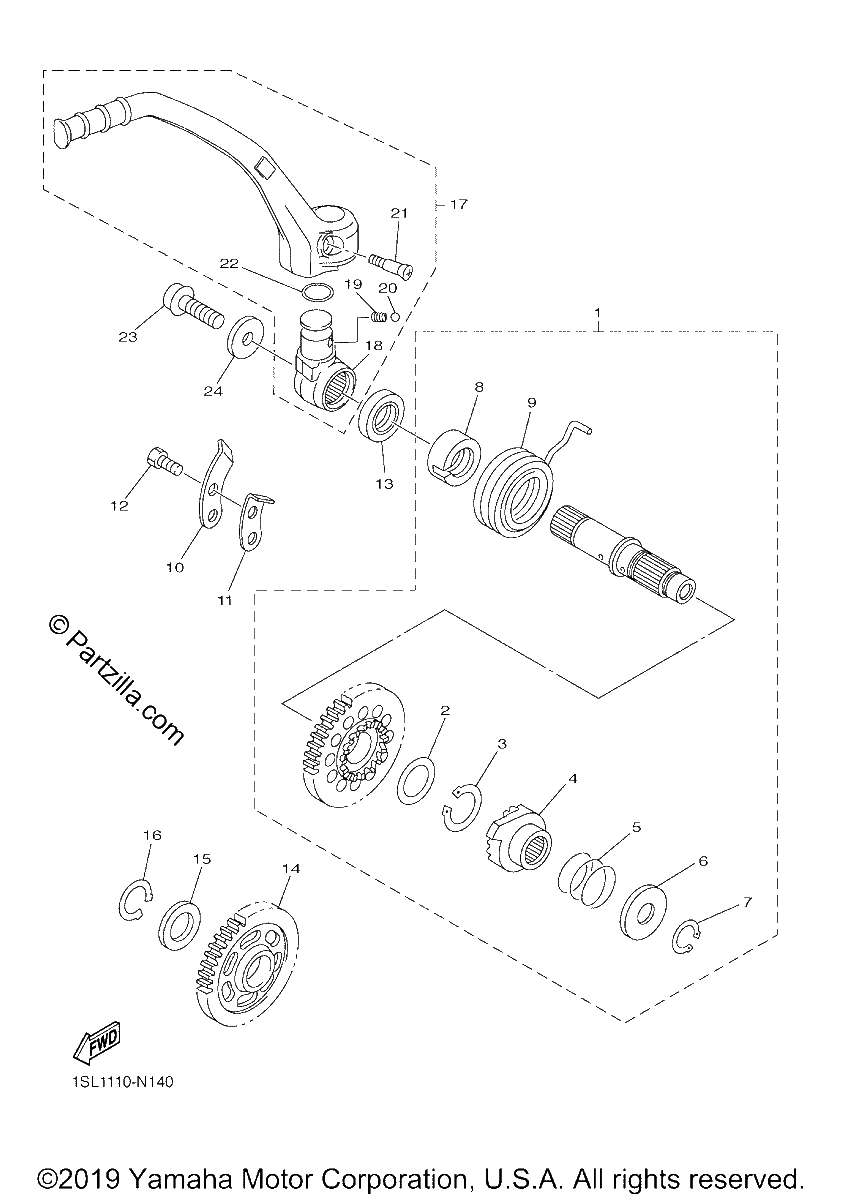

Diagrama de STARTER

Repuestos

#1
2S2-15601-00-00
KICK SHAFT ASSY
$301.14¢150 570
1
#2
90201-20685-00
WASHER,PLATE
$6.45¢3 226
1
#3
93410-20038-00
CIRCLIP
$2.86¢1 432
1
#4
2S2-15671-00-00
WHEEL, RATCHET
$61.70¢30 849
1
#5
90501-160A2-00
Spring, Compression
$4.05¢2 024
1
#6
90201-167P7-00
WASHER, plate
$9.20¢4 600
1
#7
99009-16400-00
CIRCLIP,S-TYPE
$5.65¢2 823
1
#8
5GR-15664-00-00
Guide, Spring
$20.06¢10 028
1
#9
90508-305B0-00
Spring, Torsion
$13.66¢6 831
1
#10
3Y6-15674-00-00
GUIDE,RATCHET WHL
$12.86¢6 429
1
#11
2NX-15668-00-00
Stopper
$22.94¢11 471
1
#12
97D95-06016-00
BOLT (GA1) (replaces 90101-06044-00)
$2.08¢1 041
1
#13
93102-20108-00
OIL SEAL,SD-TYPE
$10.05¢5 026
1
#14
5TA-15651-00-00
GEAR, KICK IDLE
$138.30¢69 150
1
#15
90201-20685-00
WASHER,PLATE
$6.45¢3 226
1
#16
99009-20400-00
Circlip
$6.75¢3 375
1
#17
1SL-15620-00-00
Kick Crank Assy
$232.07¢116 035
1
#18
1SL-15621-00-00
BOSS, KICK CRANK
$68.52¢34 259
1
#19
90501-147A5-00
Spring, Compression
$6.75¢3 375
1
#20
93507-32031-00
BALL
$4.28¢2 139
1
#21
90151-06045-00
SCREW, COUNTERSUNK
$6.75¢3 375
1
#22
93210-17570-00
O-Ring
$6.43¢3 214
1
#23
90110-08097-00
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
1
#24
90201-08047-00
WASHER, plate
$4.74¢2 369
1
