CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

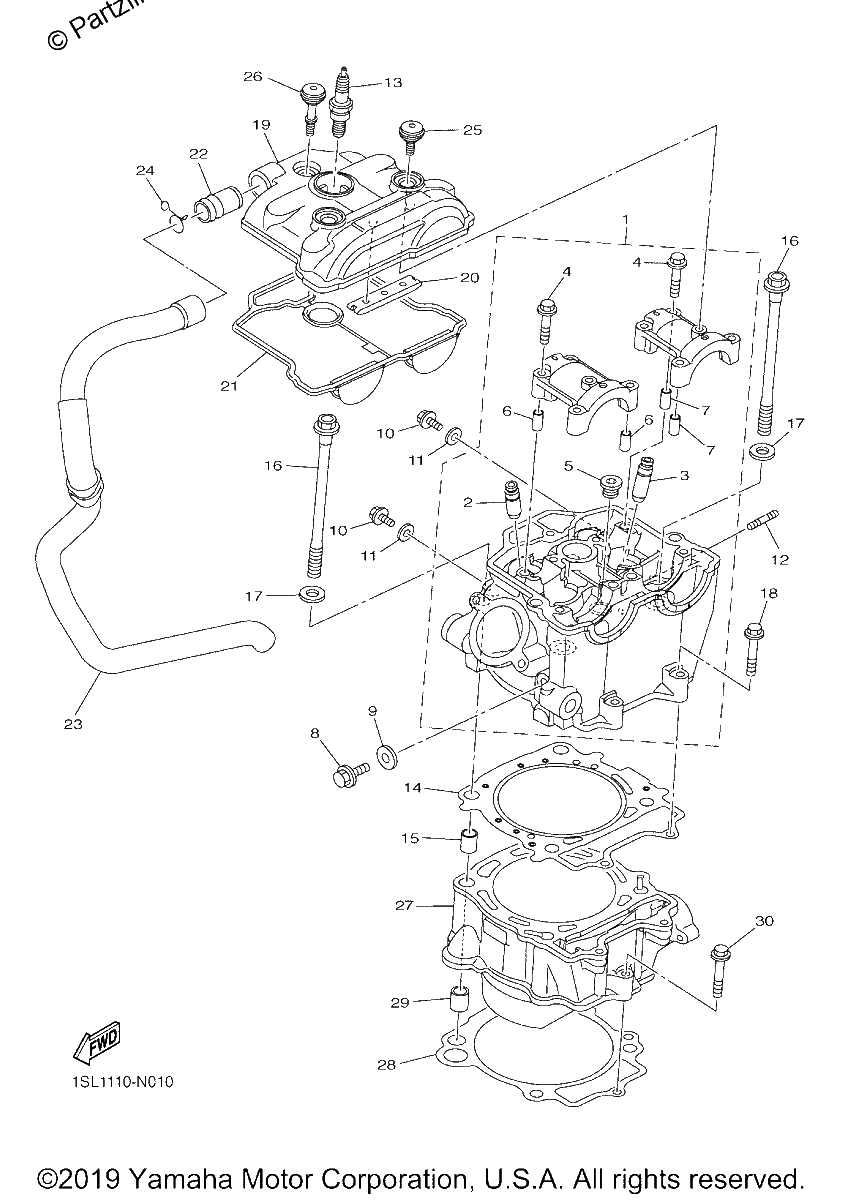

Diagrama de CYLINDER

Repuestos

#1
1SL-11102-00-00
Cylinder Head Assy
$1068.34¢534 169
1
#2
5PS-11133-10-00
GUIDE, VALVE 1
$73.94¢36 973
1
#3
5PS-11134-10-00
GUIDE, VALVE 2
$73.94¢36 973
1
#4
90105-06027-00
BOLT, FLANGE
$7.06¢3 530
1
#5
90340-12007-00
PLUG, STRAIGHT SCREW
$6.83¢3 415
1
#6
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#7
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#8
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#9
90430-08119-00
GASKET
$6.36¢3 180
1
#10
95022-06010-00
BOLT, FLANGE
$5.97¢2 984
1
#11
90430-06014-00
GASKET
$7.59¢3 795
1
#12
90116-06037-00
BOLT, stud
$3.70¢1 852
1
#13
CR9-E0000-00-00
CR9E NGK SPLUG 4PK (replaces 94701-00410-00)
$9.88¢4 939
1
#13
CR8-E0000-00-00
CR8E NGK SPLUG 4PK (replaces 94701-00411-00)
$9.88¢4 939
1
#14
33D-11181-00-00
GASKET, CYLINDER HEAD 1
$48.71¢24 357
1
#15
93612-16254-00
PIN,DOWEL
$4.77¢2 386
1
#16
90105-10367-00
Bolt, Flange
$11.73¢5 865
1
#17
90201-10025-00
WASHER, plate
$6.82¢3 410
1
#18
95022-06035-00
Bolt, Flange
$3.27¢1 633
1
#19
33D-11190-29-00
COVER, CYLINDER HEAD 1
$264.40¢132 198
1
#20
5BE-12241-00-00
GUIDE, STOPPER 2
$28.00¢14 001
1
#21
33D-11193-01-00
GASKET, HEAD COVER 1
$44.06¢22 028
1
#22
341-11167-00-00
PIPE,BREATHER 2
No Disponible
1
#23
1SL-11166-00-00
PIPE, BREATHER 1
$35.34¢17 670
1
#24
90467-20M15-00
CLIP (replaces 90467-20030-00)
$7.31¢3 657
1
#25
5UM-1119E-00-00
BOLT, COVER HEAD
$12.02¢6 009
1
#26
33D-1119E-00-00
BOLT, COVER HEAD
$16.53¢8 263
1
#27
1SL-11311-00-00
CYLINDER 1
$777.19¢388 597
1
#28
1SL-11351-00-00
Gasket, Cylinder
$21.90¢10 948
1
#29
99530-14016-00
PIN, DOWEL
$3.51¢1 754
1
#30
95022-06035-00
Bolt, Flange
$3.27¢1 633
1
