CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

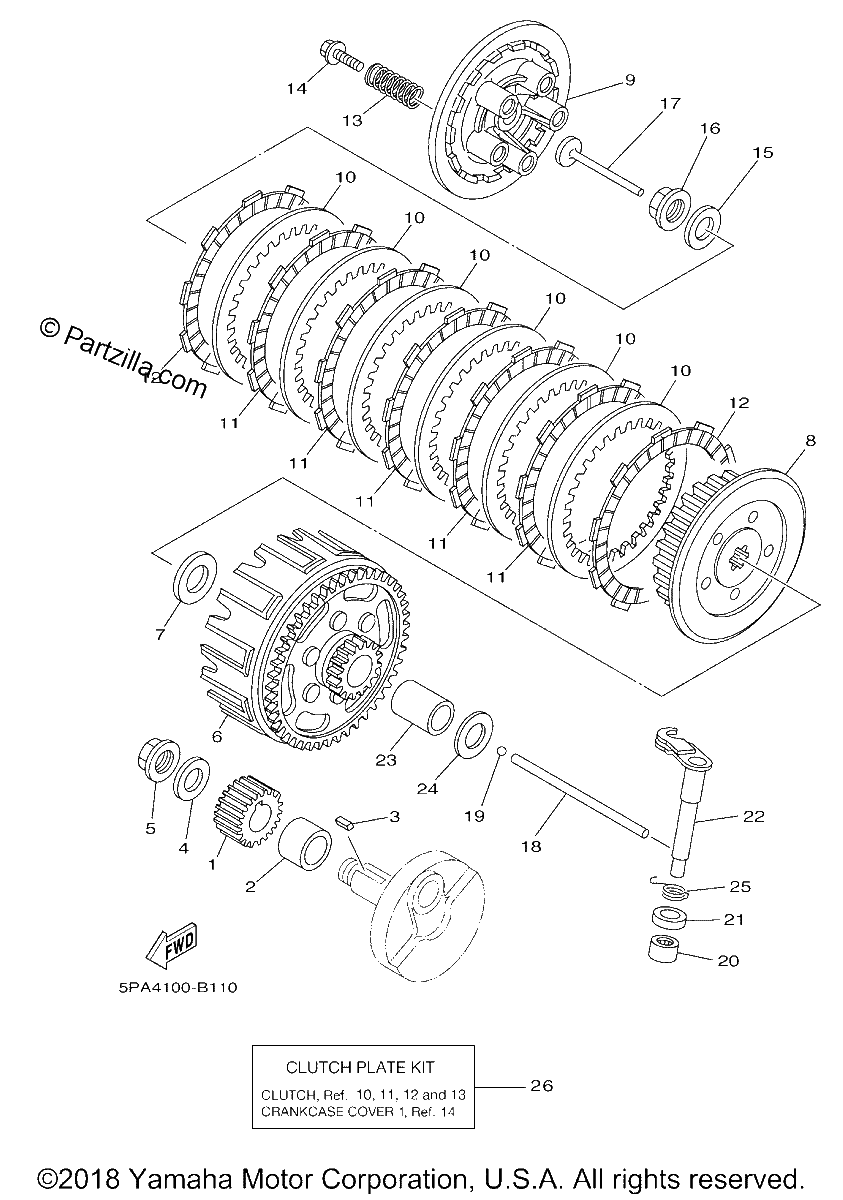

Diagrama de CLUTCH

Repuestos

#1
5PA-16111-00-00
GEAR, PRIMARY DRIVE
$92.88¢46 438
1
#2
90387-20488-00
COLLAR
$25.86¢12 931
1
#3
90282-05001-00
KEY, STRAIGHT (5MMX16MM)
$9.24¢4 619
1
#4
90208-12015-00
WASHER, CONICAL SPRING
$0.78¢388
1
#5
90179-12007-00
NUT
$7.48¢3 738
1
#6
5PA-16150-10-00
PRIMARY DRIVEN GEAR COMP.
$326.63¢163 313
1
#7
90201-17558-00
WASHER, PLATE
$9.16¢4 581
1
#8
5PA-16371-10-00
BOSS, CLUTCH
$106.69¢53 344
1
#9
2TK-16351-00-00
PLATE, PRESSURE 1
$43.49¢21 744
1
#10
131-16324-00-00
PLATE, CLUTCH 1
$22.59¢11 294
1
#11
4ES-16321-00-00
PLATE, FRICTION
$18.90¢9 450
1
#12
3XP-16321-00-00
PLATE, FRICTION
$20.60¢10 300
1
#13
90501-204A0-00
SPRING, COMPRESSION
$7.34¢3 669
1
#14
90119-05001-00
BOLT,WITH WASHER (replaces 90119-05827-00)
$3.31¢1 656
1
#15
90208-12015-00
WASHER, CONICAL SPRING
$0.78¢388
1
#16
90179-12007-00
NUT
$7.48¢3 738
1
#17
4ES-16356-00-00
ROD, PUSH 1
$25.67¢12 837
1
#18
5PA-16357-00-00
ROD, PUSH 2
$31.72¢15 862
1
#19
93503-16003-00
BALL
$2.50¢1 250
1
#20
93315-11206-00
BEARING
$37.81¢18 906
1
#21
93102-12224-00
OIL SEAL
$9.94¢4 969
1
#22
4ES-16381-00-00
PUSH LEVER COMP.
$70.92¢35 463
1
#23
5PA-16181-00-00
SPACER 1
$28.61¢14 306
1
#24
90201-171G6-00
WASHER, PLATE
$9.07¢4 538
1
#25
90508-14016-00
SPRING, TORSION
$3.50¢1 750
1
#26
5PA-W001G-00-00
CLUTCH PLATE KIT
$153.79¢76 894
1
