FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

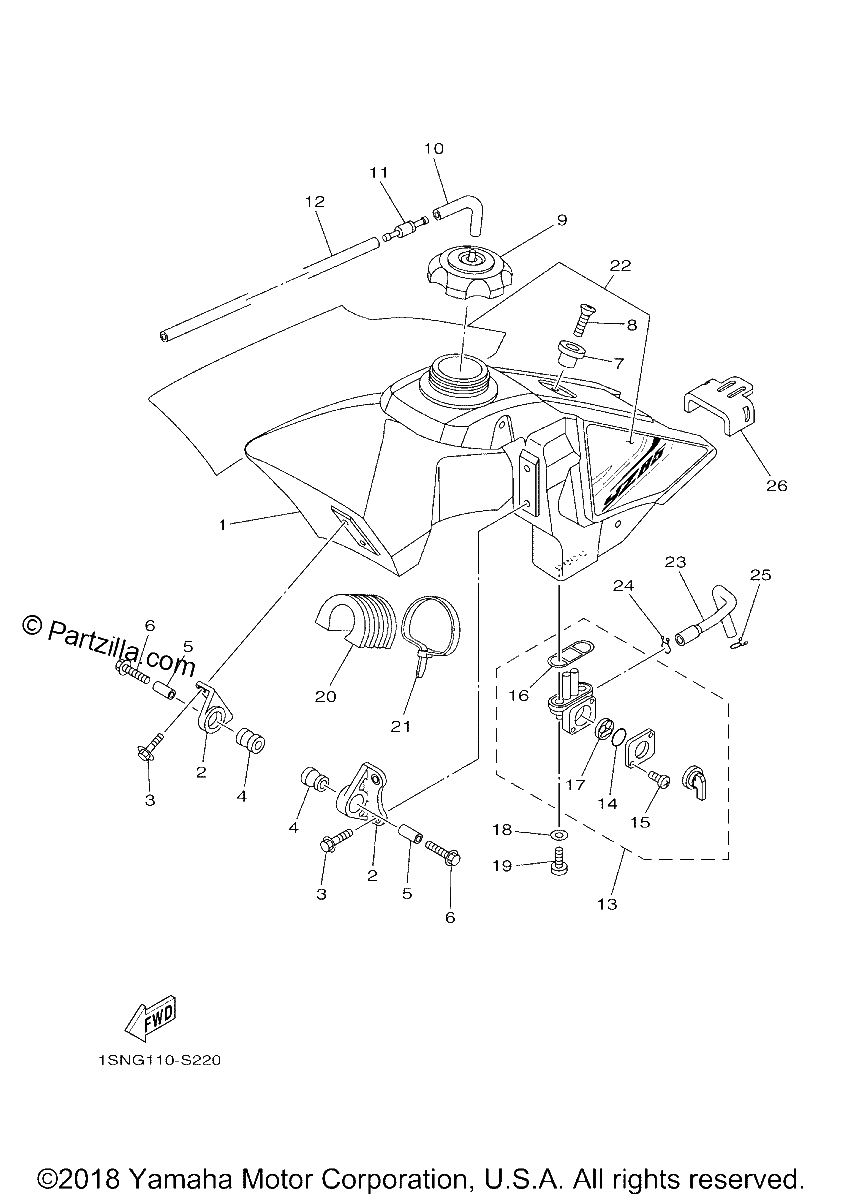

Diagrama de FUEL TANK

Repuestos

#1
5PA-24110-30-00
FUEL TANK COMP.
$589.98¢294 992
1
#2
5XE-24144-00-00
HOLDER, DAMPER
$21.83¢10 914
1
#3
90105-06696-00
BOLT, FLANGE
$6.88¢3 439
1
#4
90480-18549-00
Grommet
$9.66¢4 830
1
#5
90387-06027-00
COLLAR
$6.21¢3 105
1
#6
90119-06262-00
BOLT, WITH WASHER
$6.88¢3 439
1
#7
4EW-2412F-00-00
BRACKET,SEAT (replaces 1B2-F412F-00-00)
$13.91¢6 958
1
#8
98702-06025-00
Screw, Flat Head
$6.75¢3 375
1
#9
5NY-24610-10-00
CAP ASSY
$60.52¢30 262
1
#10
5RB-24315-00-00
PIPE 5
$6.59¢3 295
1
#11
3XJ-24380-00-00
PIPE JOINT ASSY
$34.24¢17 118
1
#12
90445-092K1-00
HOSE (L420)
$12.04¢6 020
1
#13
4DP-24500-10-00
FUEL COCK ASSY 1
$90.34¢45 172
1
#14
3AJ-24534-10-00
SEAL, COCK
$7.75¢3 875
1
#15
98517-03008-00
SCREW, PAN HEAD
$3.00¢1 501
1
#16
4X8-24512-10-00
GASKET
$12.02¢6 009
1
#17
3AC-24523-00-00
VALVE PACKING
$12.71¢6 354
1
#18
90202-05187-00
WASHER, PLATE
$1.45¢724
1
#19
90149-06108-00
SCREW
$1.05¢523
1
#20
5PA-24182-00-00
DAMPER, LOCATING 2
$8.07¢4 036
1
#21
90464-15152-00
CLAMP
$4.77¢2 386
1
#22
1SN-24240-50-00
GRAPHIC SET
$108.50¢54 251
1
#23
5PA-24311-00-00
PIPE, FUEL 1
$13.91¢6 958
1
#24
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#25
90467-09002-00
Clip
$2.08¢1 041
1
#26
5PA-24181-00-00
DAMPER, LOCATING 1
$17.42¢8 711
1
