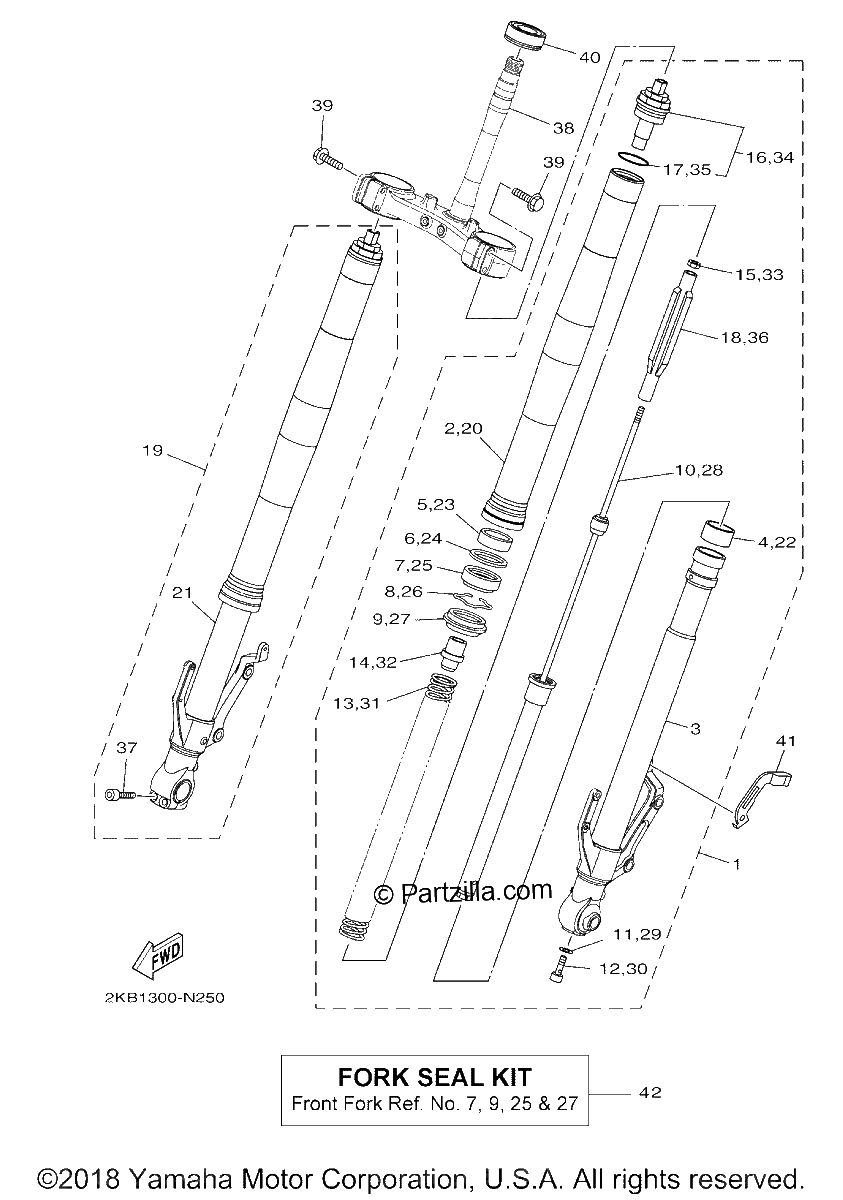

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1292.59¢646 294
#2
TUBE, OUTER
$771.30¢385 653
#3
INNER TUBE COMP. 1
$322.33¢161 167
#4
PISTON, FRONT FORK
$31.68¢15 841
#5
METAL, SLIDE 1 | (KYB)
$29.91¢14 956
#6
WASHER, OIL SEAL | (KYB)
$6.51¢3 254
#7
OIL SEAL
$22.99¢11 494
#8
RING, SNAP | (KYB)
$9.49¢4 744
#9
SEAL, DUST
$22.10¢11 051
#10
CYLINDER COMP., FRONT FORK
$311.32¢155 658
#11
GASKET | (KYB)
$15.72¢7 860
#12
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#13
SPRING, FRONT FORK
$99.58¢49 789
#14
SPACER
$52.69¢26 347
#15
NUT
$7.28¢3 640
#16
BOLT, CAP
$693.44¢346 719
#17
O-RING
$7.56¢3 778
#18
GUIDE, SPRING
$28.45¢14 225
#19
FRONT FORK ASSY (R.H)
$1651.85¢825 924
#20
TUBE, OUTER
$771.30¢385 653
#21
INNER TUBE COMP. 2
$258.14¢129 070
#22
PISTON, FRONT FORK
$31.68¢15 841
#23
METAL, SLIDE 1 | (KYB)
$29.91¢14 956
#24
WASHER, OIL SEAL | (KYB)
$6.51¢3 254
#25
OIL SEAL
$22.99¢11 494
#26
RING, SNAP | (KYB)
$9.49¢4 744
#27
SEAL, DUST
$22.10¢11 051
#28
CYLINDER COMP., FRONT FORK
$311.32¢155 658
#29
GASKET | (KYB)
$15.72¢7 860
#30
BOLT, HEXAGON SOCKET HEAD
$8.37¢4 186
#31
SPRING, FRONT FORK
$99.58¢49 789
#32
SPACER
$52.69¢26 347
#33
NUT
$7.28¢3 640
#34
BOLT, CAP
$693.44¢346 719
#35
O-RING
$7.56¢3 778
#36
GUIDE, SPRING
$28.45¢14 225
#37
BOLT (3JP)
$5.75¢2 875
#38
UNDER BRACKET COMP.
$737.96¢368 978
#39
Bolt, Flange
$6.75¢3 375
#40
BEARING
$55.67¢27 836
#41
HOLDER, BRAKE HOSE 1
$13.03¢6 515
#42
FORK SEAL KIT
$41.76¢20 878
