FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

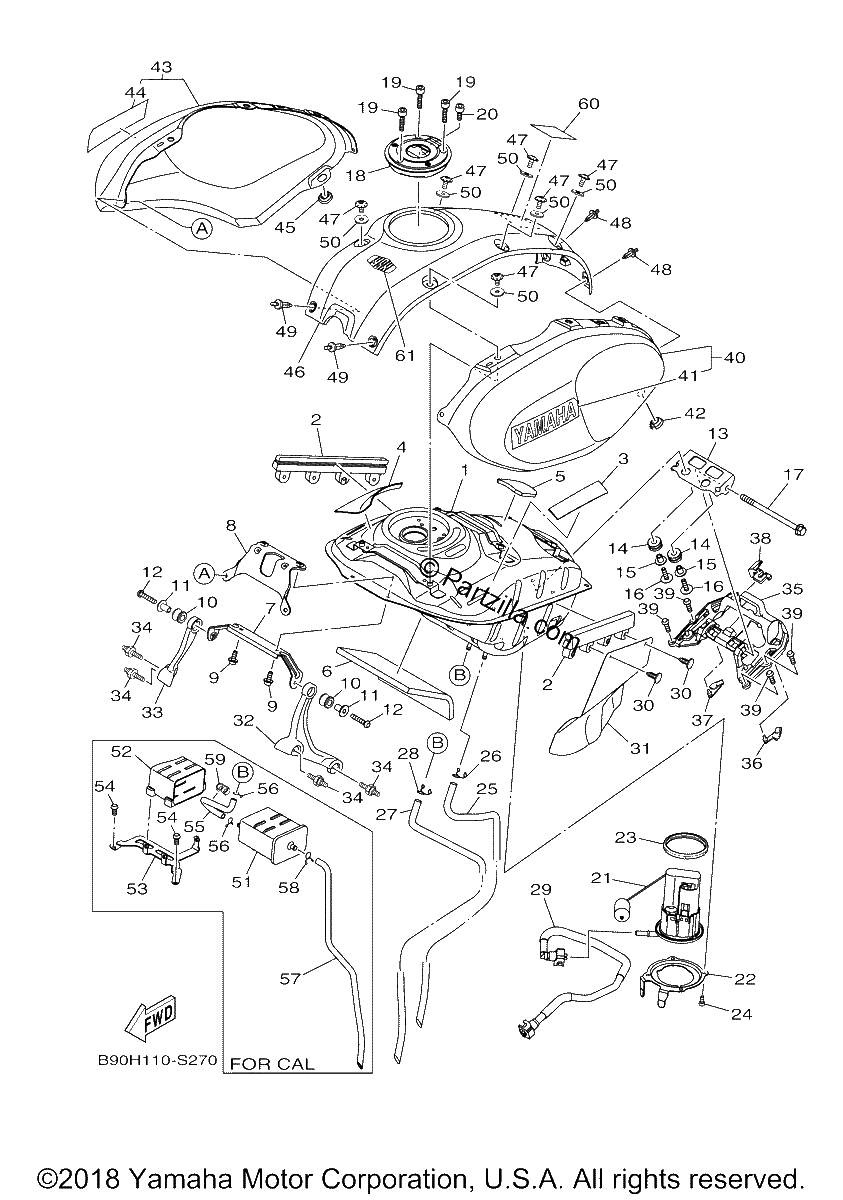

Diagrama de FUEL TANK

Repuestos

#1
B90-24110-00-00
FUEL TANK COMP.
$461.24¢230 621
1
#2
B90-24121-00-00
SEAT, KNEE GRIP 1
$46.14¢23 069
1
#3
90520-02013-00
DAMPER, PLATE
$1.97¢983
1
#4
B90-2414K-00-00
DAMPER, PLATE 3
$4.47¢2 237
1
#5
B90-2414N-00-00
DAMPER, PLATE 4
$4.66¢2 329
1
#6
90520-10029-00
DAMPER, PLATE
$4.34¢2 168
1
#7
B90-2412Y-00-00
BRACKET, TANK FITTING
$16.90¢8 452
1
#8
B90-24145-00-00
DAMPER, SIDE COVER
$25.85¢12 926
1
#9
90110-06245-00
BOLT, HEXAGON SOCKET HEAD
$6.87¢3 433
1
#10
90480-18008-00
GROMMET
$3.48¢1 742
1
#11
90387-06266-00
COLLAR
$4.30¢2 151
1
#12
92012-06030-00
BOLT, BUTTON HEAD
$3.09¢1 547
1
#13
B90-24191-00-00
BRACKET, FUEL TANK 1
$14.81¢7 406
1
#14
90480-16003-00
GROMMET
$9.22¢4 611
1
#15
90387-06287-00
COLLAR
$9.50¢4 749
1
#16
90111-06084-00
BOLT, HEX. SOCKET BUTTON
$5.39¢2 697
1
#17
95817-08120-00
BOLT, FLANGE
$4.20¢2 099
1
#18
1WS-24602-00-00
CAP ASSY
$334.27¢167 135
1
#19
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
1
#20
91312-05010-00
BOLT
$5.39¢2 697
1
#21
1RC-13907-00-00
FUEL PUMP COMP.
$426.33¢213 164
1
#22
B90-24491-00-00
BRACKET, FUEL PUMP
$36.42¢18 210
1
#23
1RC-24486-00-00
O-RING
$26.89¢13 443
1
#24
91312-05010-00
BOLT
$5.39¢2 697
1
#25
1RC-24315-00-00
PIPE 5
$14.40¢7 199
1
#26
90467-090A2-00
Clip
$2.74¢1 368
1
#27
1RC-24316-00-00
PIPE 6 | FOR U49
$13.03¢6 515
1
#28
90467-090A2-00
Clip
$2.74¢1 368
1
#29
B90-13971-00-00
PIPE, FUEL 1
$68.16¢34 080
1
#30
90269-05055-00
RIVET,SPEC'L SHAPE
$7.67¢3 835
1
#31
B90-24217-00-00
COVER
$40.41¢20 205
1
#32
B90-2411F-00-00
PLATE, FITTING
$147.44¢73 721
1
#33
B90-2411L-00-00
HOOK TANK FITTING
$152.79¢76 395
1
#34
90109-06309-00
BOLT
$6.90¢3 450
1
#35
B90-2413Y-00-00
BRACKET, TANK FITTING
$82.56¢41 279
1
#36
B90-24665-00-00
DAMPER
$12.99¢6 498
1
#37
B90-2466M-00-00
DAMPER
$12.45¢6 227
1
#38
B90-24742-00-00
GROMMET
$8.53¢4 267
1
#39
92017-06020-00
BOLT, BUTTON HEAD
$2.79¢1 397
1
#40
B90-Y24HA-20-0X
COVER, TANK SIDE 1 A
$627.89¢313 944
1
#41
99221-00140-00
EMBLEM, YAMAHA
$3.61¢1 805
1
#42
90480-01558-00
Grommet
$4.31¢2 156
1
#43
B90-Y24JA-20-0X
COVER, TANK SIDE 2 A
$627.89¢313 944
1
#44
99221-00140-00
EMBLEM, YAMAHA
$3.61¢1 805
1
#45
90480-01558-00
Grommet
$4.31¢2 156
1
#46
B90-241B1-00-P1
COVER, TANK
$368.87¢184 437
1
#47
90109-06311-00
BOLT
$3.36¢1 679
1
#48
90269-06008-00
RIVET
$8.10¢4 048
1
#49
90269-07001-00
RIVET
$1.68¢839
1
#50
90201-06M94-00
WASHER, PLATE
$5.84¢2 921
1
#51
2CR-24170-00-00
CANISTER ASSY | FOR CALIFORNIA
$346.86¢173 432
1
#52
B90-24183-00-00
DAMPER, LOCATING 3 | FOR CAL
$24.76¢12 380
1
#53
B90-2419F-00-00
BRACKET, CANISTOR | FOR CAL
$13.96¢6 981
1
#54
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#55
B90-24313-10-00
PIPE 3 | FOR CAL
$27.16¢13 582
1
#56
90467-090A2-00
Clip
$2.74¢1 368
1
#57
B90-24321-00-00
PIPE 10 | FOR CAL
$13.59¢6 797
1
#58
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
#59
90464-09M31-00
CLAMP
$6.77¢3 387
1
#60
29P-2816R-00-00
LABEL, WARNING GENERAL INFO.
$3.40¢1 702
1
#61
B90-2416B-01-00
EMBLEM
$42.39¢21 194
1
