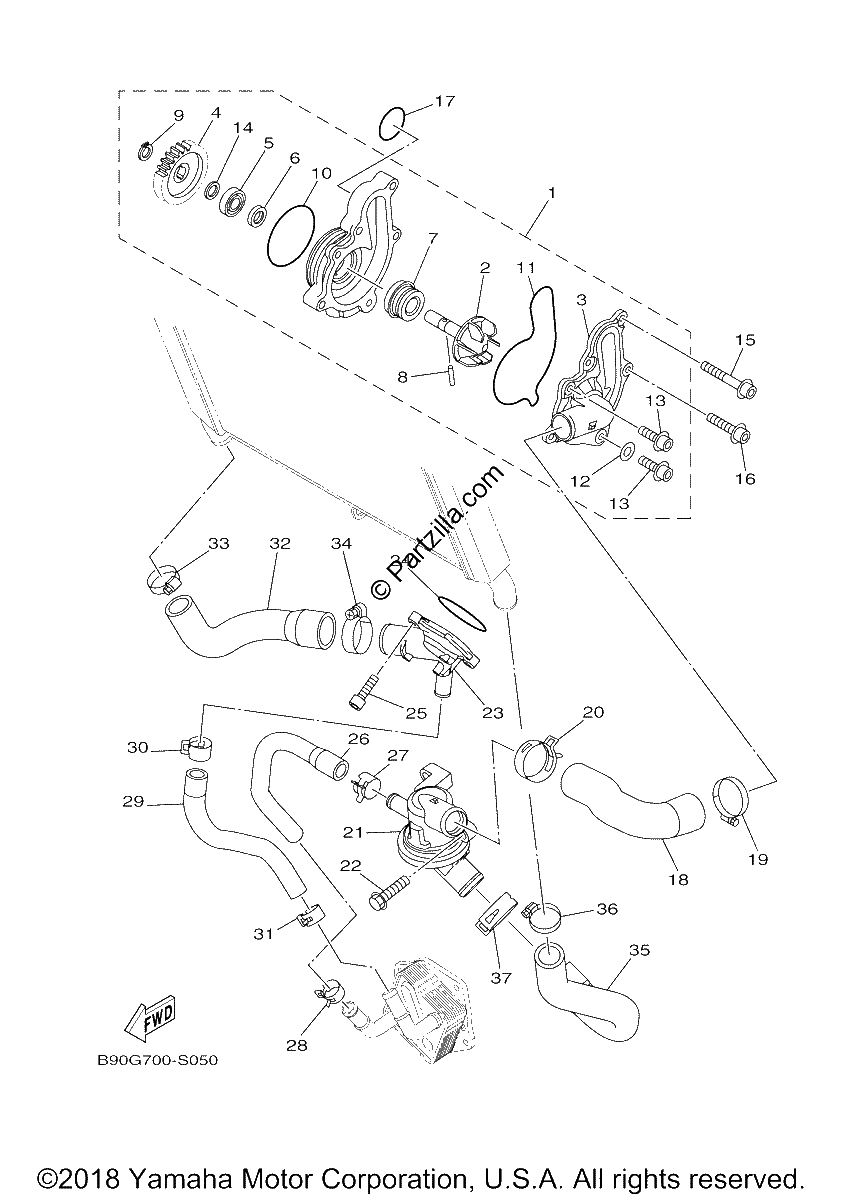

WATER PUMP
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
WATER PUMP ASSY
$221.31¢110 653
#2
IMPELLER SHAFT ASSY
$37.43¢18 716
#3
COVER, HOUSING
$84.39¢42 193
#4
GEAR, IMPELLER SHAFT
$29.23¢14 617
#5
BEARING
$27.84¢13 921
#6
OIL SEAL
$12.39¢6 193
#7
SEAL, MECHANICAL
$58.28¢29 141
#8
PIN, DOWEL
$5.75¢2 875
#9
CIRCLIP
$3.37¢1 685
#10
O-RING
$7.30¢3 651
#11
O-RING
$12.83¢6 417
#12
GASKET
$7.59¢3 795
#13
BOLT, HEXAGON SOCKET HEAD
$2.74¢1 368
#14
WASHER, PLATE
$6.55¢3 278
#15
BOLT, HEXAGON SOCKET HEAD
$1.94¢972
#16
BOLT, HEXAGON SOCKET HEAD
$5.37¢2 685
#17
O-RING
$5.45¢2 726
#18
HOSE 2
$21.38¢10 689
#19
HOSE CLAMP ASSY
$17.27¢8 637
#20
CLIP
$4.61¢2 306
#21
THERMOSTAT ASSY
$133.11¢66 556
#22
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
#23
JOINT 1
$51.32¢25 662
#24
O-RING
$6.43¢3 214
#25
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
#26
HOSE 3
$10.83¢5 416
#27
CLIP
$6.73¢3 364
#28
CLIP
$8.69¢4 347
#29
HOSE 4
$11.78¢5 888
#30
CLIP
$6.73¢3 364
#31
CLIP
$8.69¢4 347
#32
HOSE 5
$14.34¢7 170
#33
HOSE CLAMP ASSY
$15.50¢7 751
#34
HOSE CLAMP ASSY
$17.27¢8 637
#35
HOSE 1
$24.90¢12 449
#36
HOSE CLAMP ASSY
$15.50¢7 751
#37
CLIP
$4.61¢2 306
