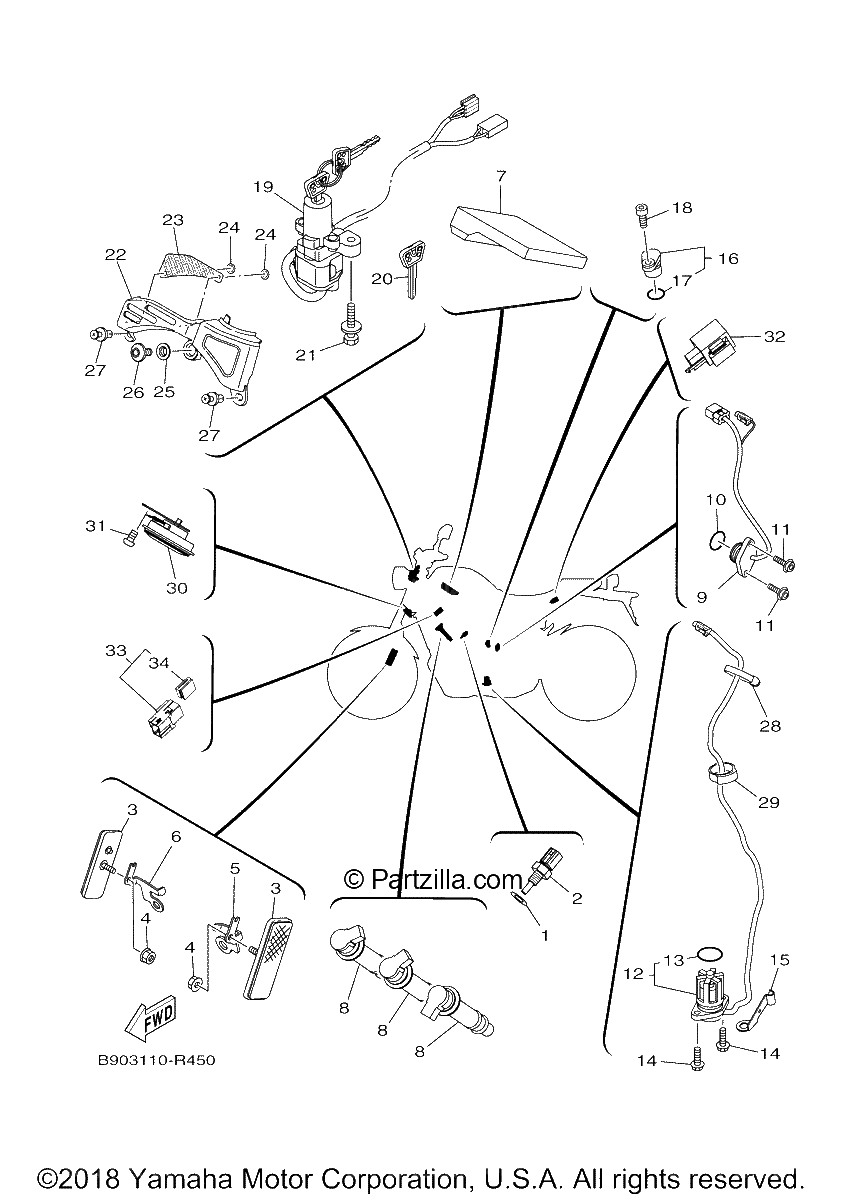

ELECTRICAL 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
GASKET
$6.51¢3 254
#2
THERMO UNIT (replaces 4P9-83591-00-00)
$31.65¢15 824
#3
REFLECTOR ASSY
$22.93¢11 466
#4
NUT,FLANGE (SILVER)
$0.84¢420
#5
BRACKET, REFLECTOR 1
$14.41¢7 205
#6
BRACKET, REFLECTOR 2
$12.35¢6 176
#7
ENGINE CONTROL UNIT (replaces B90-8591A-10-00)
No Disponible
#8
IGNITION COIL ASSY
$125.28¢62 640
#9
NEUTRAL SWITCH ASSY
$80.90¢40 451
#10
O-RING
$5.23¢2 616
#11
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
#12
OIL LEVEL GAUGE ASSY
$105.27¢52 636
#13
O-RING
$11.99¢5 997
#14
BOLT, FLANGE
$3.65¢1 823
#15
CLAMP
$5.55¢2 777
#16
PLUG, BLIND
$20.10¢10 051
#17
O-RING
$6.32¢3 162
#18
BOLT
$1.35¢673
#19
MAIN SWITCH STEERING LOCK
$159.22¢79 609
#20
BLANK KEY | AP
$26.78¢13 392
#21
BOLT
$6.76¢3 381
#22
COVER, MAIN SWITCH
$9.99¢4 997
#23
GRILLE, FRONT
$19.79¢9 896
#24
NUT, SPRING
$0.46¢230
#25
COLLAR
$1.17¢586
#26
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
#27
RIVET
$2.05¢1 023
#28
CLAMP
$3.04¢1 518
#29
CLAMP
$1.87¢937
#30
HORN (replaces B90-83371-00-00)
$75.64¢37 818
#31
BOLT, BUTTON HEAD
$3.36¢1 679
#32
FLASHER RELAY ASSY
$79.29¢39 646
#33
RELAY ASSY (1ST-00)
$16.38¢8 188
#34
HOLDER, RELAY
$8.71¢4 353
