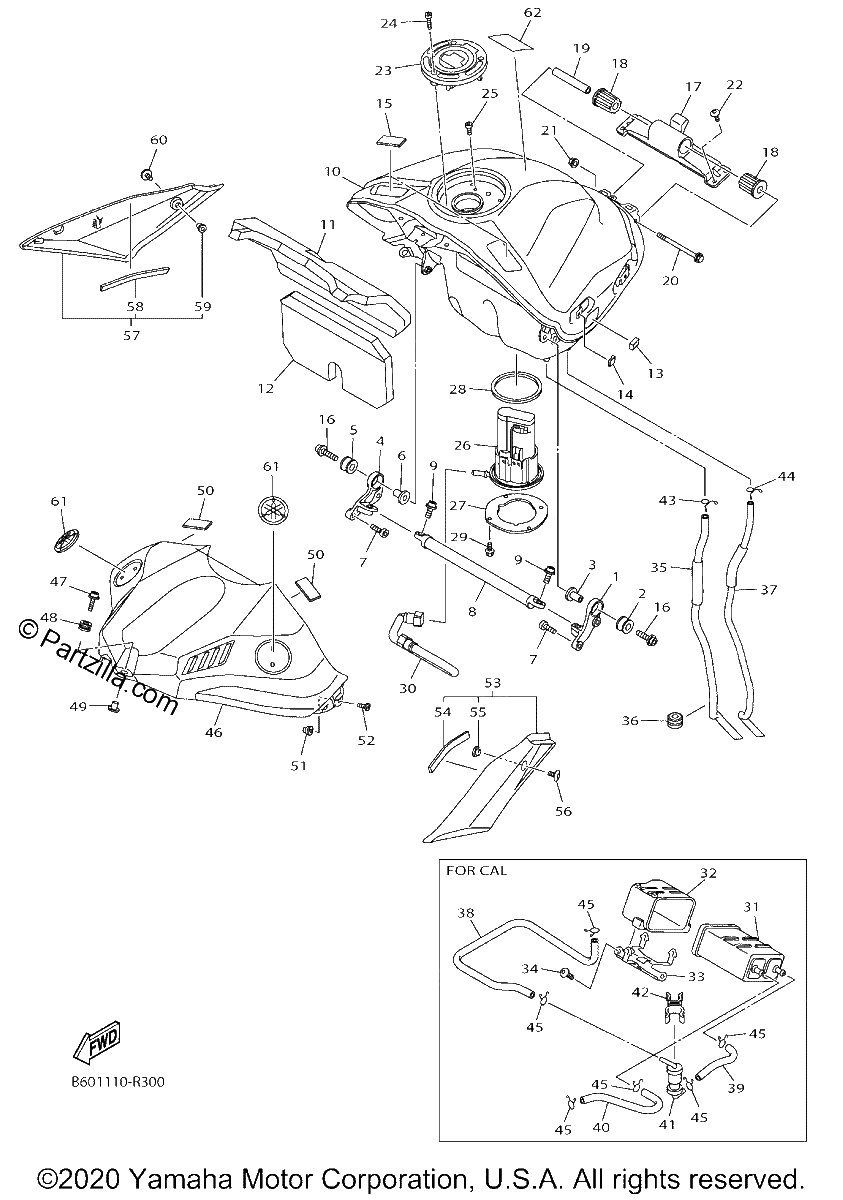

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BRACKET, FUEL TANK 1
$27.86¢13 931
#2
GROMMET
$3.79¢1 894
#3
COLLAR
$7.41¢3 706
#4
BRACKET, FUEL TANK 2
$24.53¢12 263
#5
GROMMET
$3.79¢1 894
#6
COLLAR
$7.41¢3 706
#7
BOLT
$2.44¢1 219
#8
CROSS BAR
$72.17¢36 088
#9
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
#10
FUEL TANK COMP. (replaces 2CR-YK241-00-P0)
$2391.24¢1 195 619
#10
FUEL TANK COMP. (replaces 2CR-YK241-00-P2)
$2391.24¢1 195 619
#11
DAMPER, PLATE 1
$9.41¢4 706
#12
DAMPER, PLATE 2
$5.45¢2 725
#13
DAMPER 2
$7.95¢3 975
#14
DAMPER, SIDE COVER
$7.65¢3 825
#15
HOOK, SIDE COVER 1
$8.03¢4 013
#16
BOLT, HEXAGON SOCKET HEAD
$7.46¢3 731
#17
BRACKET, TANK FITTING
$42.44¢21 219
#18
DAMPER, LOCATING 3
$7.65¢3 825
#19
COLLAR
$5.19¢2 594
#20
BOLT, FLANGE
$3.40¢1 700
#21
NUT, FLANGE
$2.44¢1 219
#22
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
#23
CAP ASSY
$277.14¢138 569
#24
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
#25
BOLT
$5.86¢2 931
#26
FUEL PUMP COMP. (replaces 2CR-13907-00-00)
$493.40¢246 700
#27
BRACKET, FUEL PUMP
$24.55¢12 275
#28
O-RING
$29.22¢14 612
#29
BOLT, WITH WASHER (replaces 90119-05016-00)
$7.34¢3 669
#30
PIPE, FUEL 1
$81.97¢40 988
#31
CANISTER ASSY | FOR CALIFORNIA
$377.02¢188 513
#32
DAMPER, LOCATING 2 | FOR CALIFORNIA
$35.29¢17 644
#33
BRACKET, CANISTOR | FOR CALIFORNIA
$35.33¢17 663
#34
SCREW | FOR CALIFORNIA
$7.65¢3 825
#35
PIPE 2
$19.34¢9 669
#36
GROMMET | FOR CALIFORNIA
$1.47¢737
#37
PIPE 3
$11.33¢5 663
#38
PIPE 4 | FOR CALIFORNIA
$44.40¢22 200
#39
PIPE 5 | FOR CALIFORNIA
$14.82¢7 413
#40
PIPE 6 | FOR CALIFORNIA
$17.75¢8 875
#41
ROLL OVER VALVE ASSY | FOR CAL
$61.95¢30 975
#42
CLAMP | FOR CALIFORNIA
$3.43¢1 713
#43
Clip
$3.25¢1 625
#44
Clip
$2.97¢1 487
#45
Clip
$2.97¢1 487
#46
COVER, TOP
$274.93¢137 463
#46
COVER, TOP | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$268.64¢134 319
#47
BOLT, HEXAGON SOCKET HEAD
$7.43¢3 713
#48
GROMMET
$7.43¢3 713
#49
COLLAR
$8.30¢4 150
#50
HOOK, SIDE COVER 1
$11.63¢5 813
#51
NUT
$6.78¢3 388
#52
SCREW, BIND
$1.44¢719
#53
TANK SIDE COVER ASSY 1
$28.64¢14 319
#54
DAMPER, PLATE
$1.30¢650
#55
COLLAR
$5.99¢2 994
#56
BOLT, HEX. SOCKET BUTTON
$7.52¢3 762
#57
TANK SIDE COVER ASSY 2
$27.70¢13 850
#58
DAMPER, PLATE
$1.30¢650
#59
COLLAR
$5.99¢2 994
#60
BOLT, HEX. SOCKET BUTTON
$7.52¢3 762
#61
EMBLEM (replaces 1RC-2413B-00-00)
$23.89¢11 944
#62
LABEL, WARNING GENERAL INFO.
$3.70¢1 850
