WATER PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

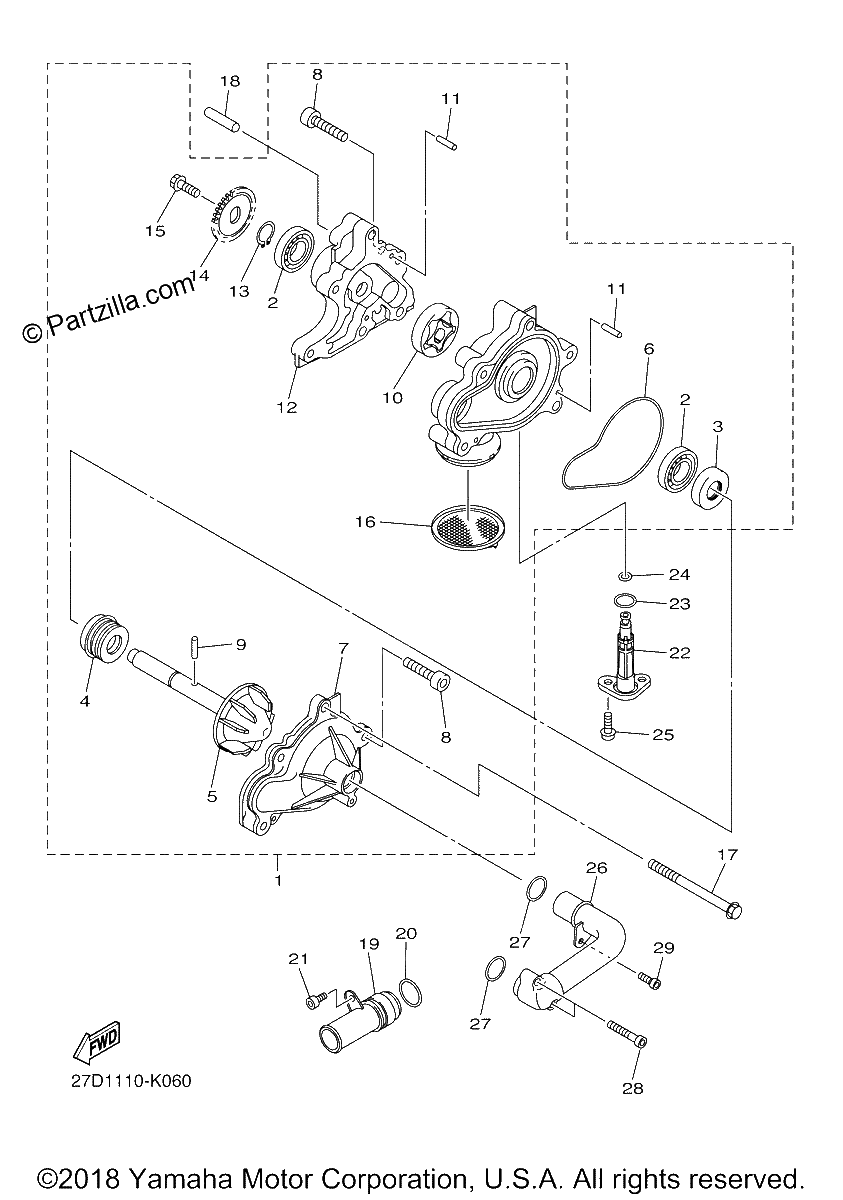

Diagrama de WATER PUMP

Repuestos

#1
3D8-12420-03-00
WATER PUMP ASSY
$498.22¢249 112
1
#2
93306-00105-00
BEARING
$30.26¢15 131
1
#3
93102-12372-00
OIL SEAL
$11.68¢5 838
1
#4
5VK-12438-00-00
SEAL, MECHANICAL
$63.35¢31 675
1
#5
3D8-12450-01-00
IMPELLER SHAFT ASSY
$50.80¢25 400
1
#6
3D8-12439-00-00
O-RING
$14.66¢7 331
1
#7
3D8-12422-00-00
COVER, HOUSING
$78.71¢39 356
1
#8
91317-06025-00
BOLT
$2.44¢1 219
1
#9
93603-17070-00
PIN, DOWEL
$3.71¢1 856
1
#10
3D8-13310-00-00
ROTOR ASSY 1
$34.98¢17 488
1
#11
93603-12007-00
PIN, DOWEL
$1.96¢981
1
#12
3D8-13336-00-00
HOUSING, ROTOR
$63.15¢31 575
1
#13
99009-12400-00
CIRCLIP
$3.66¢1 831
1
#14
3D8-13355-00-00
SPROCKET, DRIVEN
$23.05¢11 525
1
#15
90105-06066-00
BOLT, FLANGE
$7.49¢3 744
1
#16
3D8-13411-00-00
STRAINER, OIL
$15.36¢7 681
1
#17
90110-08049-00
BOLT, HEXAGON SOCKET HEAD
$6.91¢3 456
1
#18
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#19
3D8-1248E-01-00
PIPE 9
$55.03¢27 513
1
#20
93210-27778-00
O-RING
$8.21¢4 106
1
#21
91317-06012-00
BOLT
$7.34¢3 669
1
#22
27D-12562-00-00
BODY, DRAIN COCK
$149.41¢74 706
1
#23
93210-15639-00
O-RING
$5.93¢2 963
1
#24
93210-07540-00
O-RING
$6.88¢3 438
1
#25
90110-06219-00
BOLT, HEXAGON SOCKET HEAD
$6.47¢3 238
1
#26
3D8-12564-00-00
PIPE, WATER
$132.29¢66 144
1
#27
93210-235A1-00
O-RING
$6.85¢3 425
1
#28
91312-06035-00
BOLT, HEXAGON SOCKET (replaces 90110-06208-00)
$2.82¢1 412
1
#29
91317-06016-00
BOLT
$1.46¢731
1
