CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

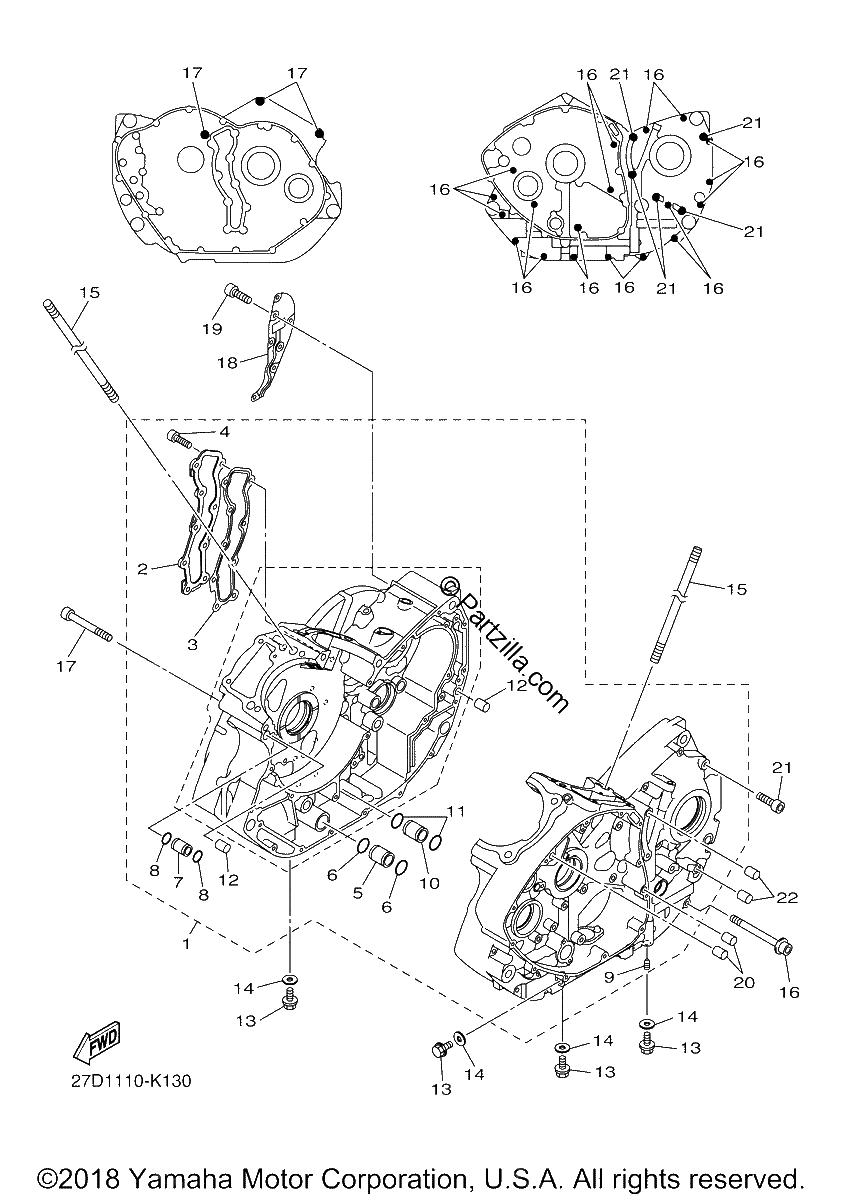

Diagrama de CRANKCASE

Repuestos

#1
3D8-15100-28-00
CRANKCASE ASSY
$2111.24¢1 055 619
1
#2
3D8-15431-00-00
COVER, CRANKCASE 3
$100.91¢50 456
1
#3
3D8-15462-00-00
GASKET, CRANKCASE COVER 3
$22.86¢11 431
1
#4
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
1
#5
3D8-15154-00-00
NOZZLE ASSY., 2
$22.71¢11 356
1
#6
93210-18319-00
O-RING
$8.16¢4 081
1
#7
1D7-15138-00-00
NOZZLE 1
$7.03¢3 513
1
#8
93210-10001-00
O-RING
$1.54¢769
1
#9
2H7-15138-00-00
NOZZLE 1
$5.06¢2 531
1
#10
3D8-15155-00-00
NOZZLE 3
$25.36¢12 681
1
#11
93210-22298-00
O-RING
$7.81¢3 906
1
#12
99530-10116-00
PIN, DOWEL
$4.00¢2 000
1
#13
95022-10016-00
BOLT, FLANGE
$7.48¢3 738
1
#14
90430-10171-00
GASKET
$3.90¢1 950
1
#15
90116-12011-00
BOLT, STUD
$16.99¢8 494
1
#16
90105-06144-00
BOLT, FLANGE
$2.50¢1 250
1
#17
91314-10110-00
BOLT, HEXAGON SOCKET HEAD
$9.30¢4 650
1
#18
3D8-15368-00-00
SEPARATOR, OIL
$51.06¢25 531
1
#19
91317-06016-00
BOLT
$1.46¢731
1
#20
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#21
91317-08035-00
BOLT
$6.67¢3 338
1
#22
99590-10114-00
PIN, DOWEL
$5.25¢2 625
1
