SHROUD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

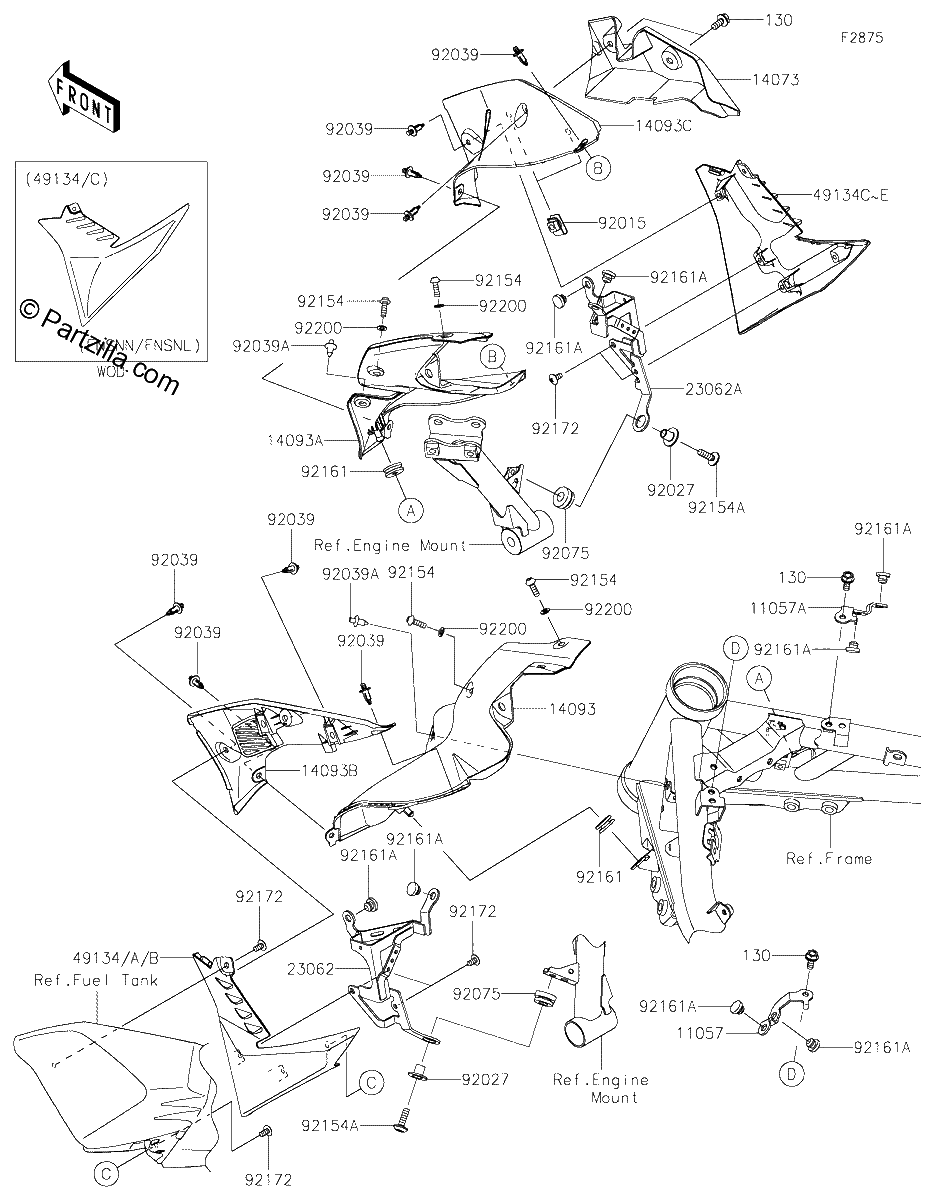

Diagrama de SHROUD

Repuestos

#130
130BA0614
BOLT FLANGED,6X14
$1.16¢581
1
#11057
11057-3997
BRACKET,SHROUD,Rear,Left Hand
$2.96¢1 478
1
#11057A
11057-3998
BRACKET,SHROUD,RR,RH
$2.96¢1 478
1
#14073
14073-0962
DUCT,INNER,GUIDE,Right Hand
$25.59¢12 794
1
#14093C
14093-0920
COVER,SHROUD,INNER,FR,RH
$35.58¢17 790
1
#14093B
14093-0919
COVER,SHROUD,INNER,FR,LH
$36.74¢18 371
1
#14093A
14093-0918
COVER,SHROUD,INNER,RR,RH
$49.07¢24 535
1
#14093
14093-0917
COVER,SHROUD,INNER,RR,LH
$53.39¢26 697
1
#23062A
23062-1279
BRACKET-COMP,SHROUD,FR,RH
$20.63¢10 316
1
#23062
23062-1278
BRACKET COMP,SHROUD,Front,Left Hand
$20.63¢10 316
1
#49134C
49134-0017-68P
SHROUD,Right Hand,M M G GRAY
No Disponible
1
#49134C
49134-0017-H8
SHROUD,Right Hand,EBONY
$58.62¢29 308
1
#49134C
49134-0017-660
SHROUD,RH,M.S.BLACK
$62.76¢31 378
1
#49134
49134-0016-H8
SHROUD,Left Hand,EBONY
$58.62¢29 308
1
#49134
49134-0016-660
SHROUD,LH,M.S.BLACK
$62.76¢31 378
1
#49134
49134-0016-68P
SHROUD,Left Hand,M M G GRAY
No Disponible
1
#92015
92015-1671
NUT,6MM
$8.07¢4 036
1
#92027
92027-1651
COLLAR,FLANGED,L=12.1,BLACK
$4.77¢2 386
1
#92039A
92039-0068
RIVET
$2.51¢1 254
1
#92039
92039-0051
RIVET
$4.24¢2 122
1
#92075
92075-277
DAMPER
$2.28¢1 138
1
#92154A
92154-4295
BOLT,SOCKET,6X20
$5.88¢2 938
1
#92154
92154-4294
BOLT,SOCKET,5X16
$2.33¢1 167
1
#92161A
92161-1971
DAMPER
$2.36¢1 179
1
#92161
92161-0588
DAMPER
$3.61¢1 805
1
#92172
92172-0864
SCREW,5X10
$1.24¢621
1
#92200
92200-2286
WASHER,5.2X10X1
$0.51¢253
1
