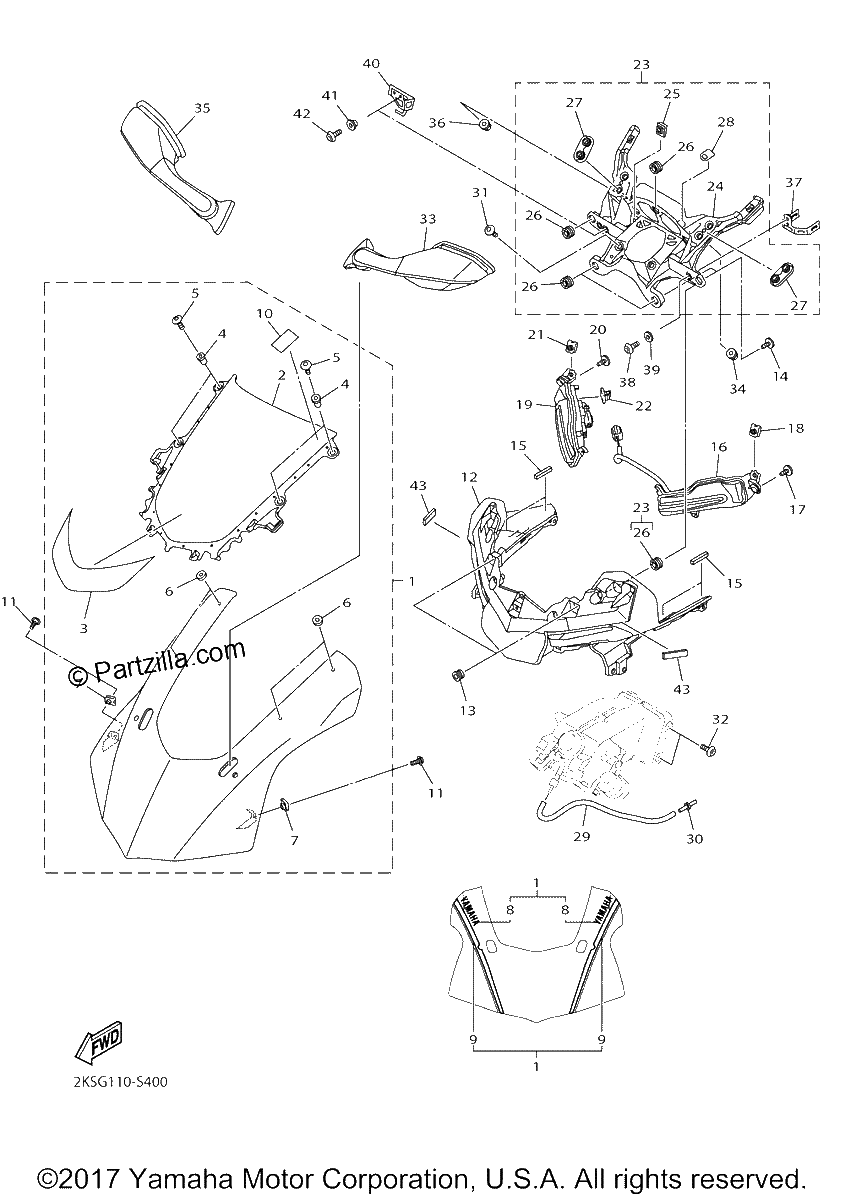

COWLING 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BODY, FRONT UPPER 1
$3895.04¢1 947 519
#2
WINDSHIELD
$116.49¢58 247
#3
GRAPHIC, 18
$46.09¢23 046
#4
NUT
$6.23¢3 117
#5
BOLT
$3.99¢1 995
#6
WASHER, PLATE
$6.70¢3 352
#7
NUT, SPRING
$2.60¢1 299
#8
EMBLEM, YAMAHA
$16.90¢8 452
#9
GRAPHIC SET 1, COWLING
$64.56¢32 280
#10
LABEL, NOTICE WINDSHIELD 1
$8.21¢4 105
#11
BOLT,HEX. SOCKET BUT
$6.88¢3 439
#12
BODY, FRONT UPPER 2
$61.77¢30 883
#13
GROMMET
$6.88¢3 439
#14
SCREW, TAPPING
$6.88¢3 439
#15
DAMPER 4
$2.78¢1 392
#16
PILOT LIGHT ASSY 1
$325.83¢162 915
#17
SCREW, TRUSS HEAD TAPPING
$6.76¢3 381
#18
NUT, SPRING
$2.60¢1 299
#19
PILOT LIGHT ASSY 2
$349.44¢174 719
#20
SCREW, TRUSS HEAD TAPPING
$6.76¢3 381
#21
NUT, SPRING
$2.60¢1 299
#22
CLAMP
$11.02¢5 509
#23
LEG SHIELD STAY SET
$133.11¢66 556
#24
STAY 1
$66.99¢33 494
#25
NUT, SPRING
$8.00¢4 002
#26
DAMPER
$7.01¢3 507
#27
PLATE, MIRROR FITTING 1
$7.04¢3 519
#28
SEAL 1
$2.02¢1 012
#29
HOSE (L320)
$7.45¢3 726
#30
JOINT
$1.61¢805
#31
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
#32
BOLT, HEX. SOCKET BUTTON
$3.78¢1 892
#33
REAR VIEW MIRROR ASSY (LEFT)
$240.13¢120 066
#34
NUT, CROWN
$4.38¢2 191
#35
REAR VIEW MIRROR ASSY (RIGHT)
$356.17¢178 083
#36
NUT, CROWN
$4.38¢2 191
#37
BRACKET 6
$10.12¢5 060
#38
BOLT, BUTTON HEAD
$6.76¢3 381
#39
COLLAR
$4.98¢2 490
#40
BRACKET 7
$12.75¢6 377
#41
COLLAR
$4.98¢2 490
#42
BOLT, BUTTON HEAD
$6.76¢3 381
#43
DAMPER
$4.54¢2 271
