REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

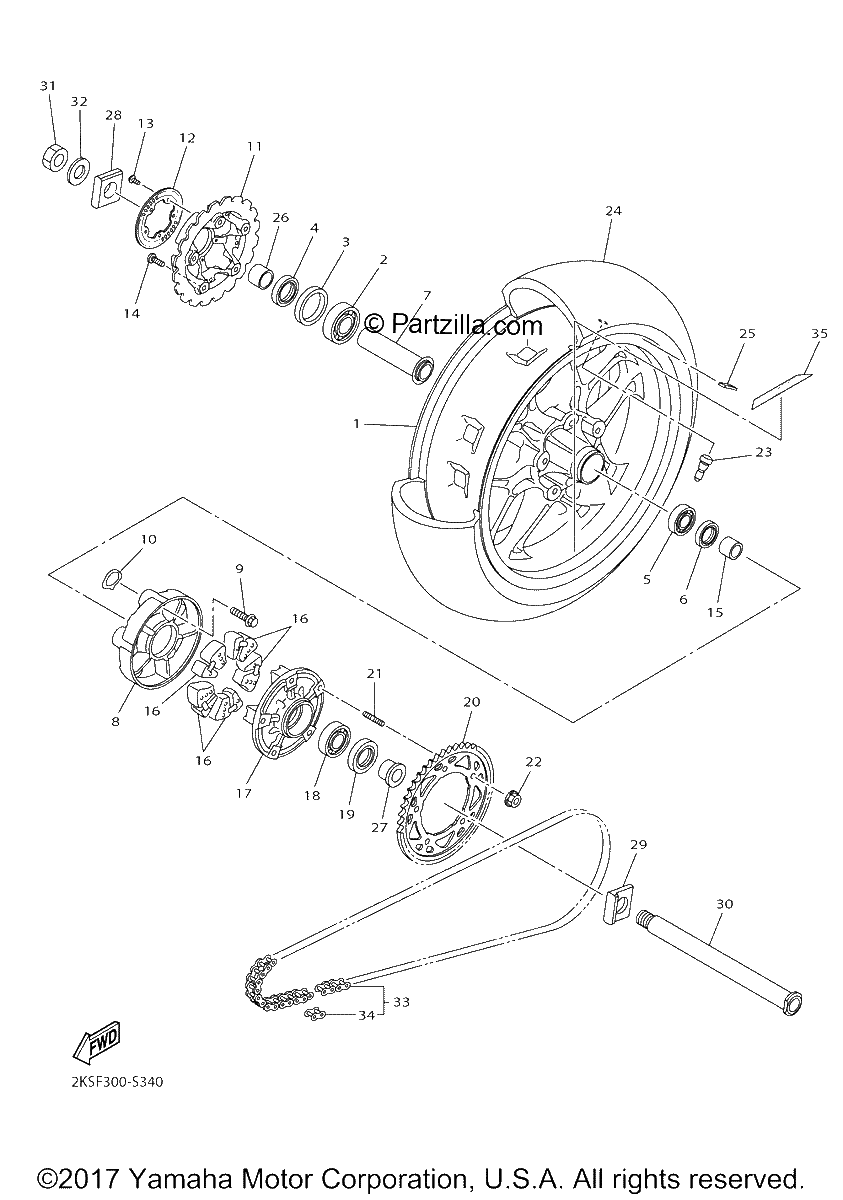

Diagrama de REAR WHEEL

Repuestos

#1
2CR-25338-00-P0
CAST WHEEL, REAR | DPBM15
$2102.19¢1 051 094
1
#2
93306-27802-00
BEARING
$70.46¢35 230
1
#3
2CR-2538E-00-00
NUT, ADJUSTING
$55.67¢27 836
1
#4
93106-40001-00
OIL SEAL
$11.11¢5 555
1
#5
93306-07806-00
BEARING
$63.24¢31 619
1
#6
93106-35042-00
OIL SEAL
$14.33¢7 165
1
#7
2CR-253W0-00-00
SPACER ASSY
$46.07¢23 034
1
#8
2CR-2531F-00-00
HUB 2
$245.94¢122 970
1
#9
90105-10450-00
BOLT, FLANGE
$3.00¢1 501
1
#10
2CR-25319-00-00
SEAL, HUB DUST
$3.06¢1 529
1
#11
2CR-2581A-00-00
PLATE, DISC
$226.31¢113 154
1
#12
1SD-2517G-00-00
ROTOR, SENSOR
$131.38¢65 688
1
#13
90149-05030-00
SCREW
$2.33¢1 167
1
#14
90109-085G6-00
BOLT
$2.08¢1 041
1
#15
90387-28022-00
COLLAR
$22.38¢11 189
1
#16
2CR-25364-00-00
DAMPER
$12.85¢6 423
1
#17
2CR-25366-00-00
CLUTCH, HUB
$191.85¢95 927
1
#18
93306-20531-00
BEARING
$48.71¢24 357
1
#19
93106-40013-00
OIL SEAL
$13.21¢6 607
1
#20
2CR-25441-00-00
SPROCKET, DRIVEN (41T)
$94.44¢47 219
1
#21
90116-10048-00
BOLT, STUD
$25.00¢12 500
1
#22
90185-10011-00
NUT, SELF-LOCKING
$4.30¢2 151
1
#23
93900-00030-00
VALVE, RIM (TR412) | TAIHEIYO
$15.85¢7 923
1
#24
94120-17011-00
TIRE (200/55 ZR17 M/C 78W) | BRIDGESTONE
$478.39¢239 194
1
#25
2CR-25398-00-00
BALANCER, WHEEL (5G) | UN
$5.04¢2 519
1
#26
90387-28023-00
COLLAR
$24.31¢12 156
1
#27
90387-28024-00
COLLAR
$28.91¢14 455
1
#28
5VY-25388-00-00
PULLER, CHAIN 1
$59.42¢29 710
1
#29
5VY-25389-01-00
PULLER, CHAIN 2
$38.31¢19 153
1
#30
2CR-25381-00-00
AXLE, WHEEL
$68.72¢34 362
1
#31
90185-24007-00
NUT, SELF-LOCKING
$39.33¢19 665
1
#32
90201-25020-00
WASHER, PLATE
$7.01¢3 507
1
#33
94582-40114-00
CHAIN (DID 525VZ-114LL)
$171.33¢85 663
1
#34
94682-40031-00
JOINT, CHAIN (DID525VZ ZJ)
$8.57¢4 284
1
#35
2KS-251G3-00-00
EMBLEM
$11.83¢5 917
1
