ELECTRICAL 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

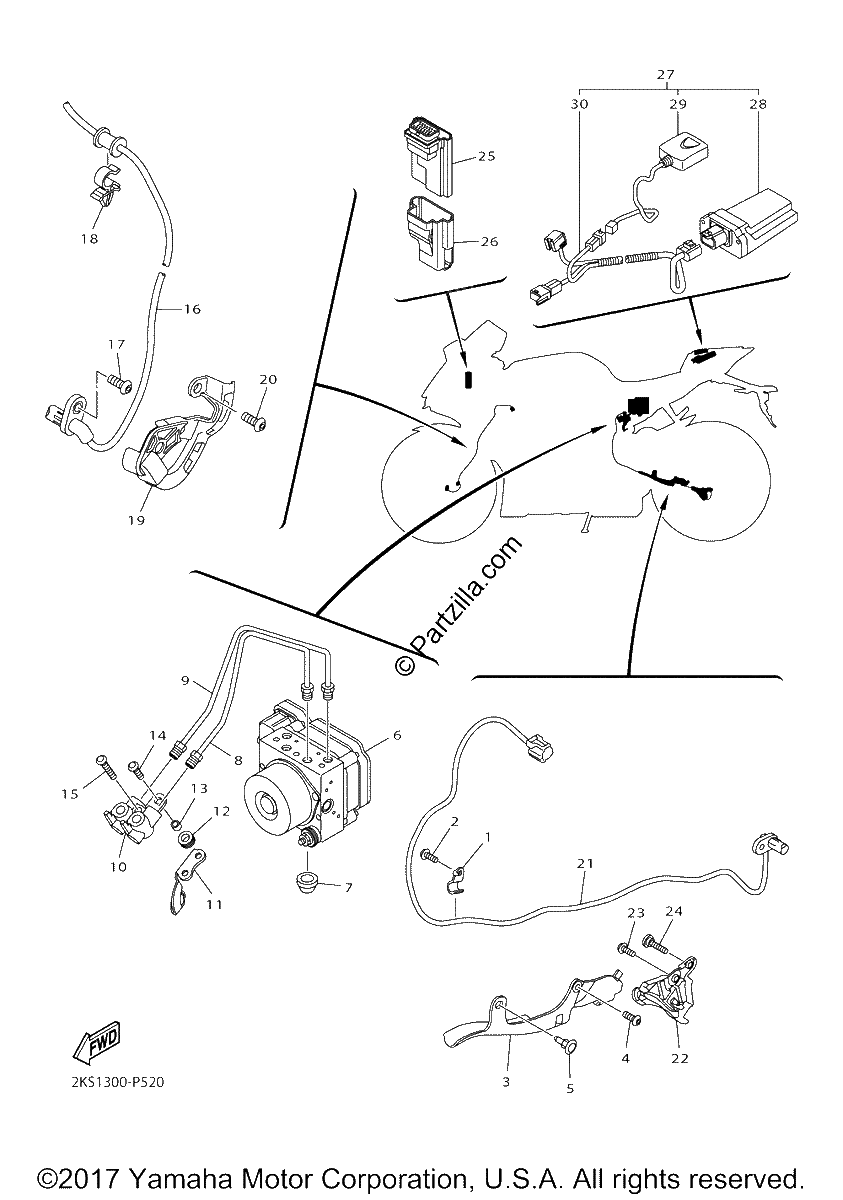

Diagrama de ELECTRICAL 3

Repuestos

#1
2CR-2216F-00-00
HOOK
$5.01¢2 507
1
#2
92017-06012-00
BOLT, BUTTON HEAD
$2.24¢1 121
1
#3
2CR-2219X-00-00
COVER
$15.97¢7 987
1
#4
92012-06016-00
BOLT, BUTTON HEAD
$6.82¢3 410
1
#5
90269-07007-00
RIVET
$3.68¢1 840
1
#6
2CR-85930-09-00
HYDRAULIC UNIT ASSY
$1836.54¢918 269
1
#7
2CR-85916-00-00
CAP, DAMPER
$4.05¢2 024
1
#8
2CR-25871-00-00
PIPE, BRAKE
$13.28¢6 641
1
#9
2CR-25882-00-00
PIPE, BRAKE 2
$12.52¢6 262
1
#10
2CR-25885-00-00
JOINT
$62.26¢31 130
1
#11
2CR-27251-00-00
BRACKET, CABLE
$12.21¢6 106
1
#12
90480-11006-00
GROMMET
$3.22¢1 610
1
#13
90387-06761-00
COLLAR
$7.52¢3 760
1
#14
92017-06020-00
BOLT, BUTTON HEAD
$2.79¢1 397
1
#15
92017-06035-00
BOLT, BUTTON HEAD
$2.60¢1 299
1
#16
2KS-85970-00-00
WHEEL SENSOR ASSY, FRONT
$178.65¢89 326
1
#17
92017-06014-00
BOLT, BUTTON HEAD
$3.06¢1 529
1
#18
90464-09129-00
CLAMP
$2.02¢1 012
1
#19
2KS-2315H-00-00
PROTECTOR 1
$31.43¢15 715
1
#20
92012-06014-00
BOLT, BUTTON HEAD
$6.76¢3 381
1
#21
2CR-85980-00-00
WHEEL SENSOR ASSY, REAR
$160.62¢80 310
1
#22
2CR-27491-00-00
PROTECTOR
$14.95¢7 475
1
#23
92012-06014-00
BOLT, BUTTON HEAD
$6.76¢3 381
1
#24
90109-06234-00
BOLT
$6.66¢3 329
1
#25
2KS-85902-10-00
SUSPENSION CONTROL U
$850.99¢425 494
1
#26
2KS-85599-00-00
COVER
$23.52¢11 759
1
#27
2KS-85800-10-00
COMMUNICATION CONT. UNIT COMP.
No Disponible
1
#28
2KS-85810-00-00
COMMUNICATION CONT. UNIT ASS
$1251.19¢625 594
1
#29
2KS-88107-00-00
GPS UNIT
$481.59¢240 793
1
#30
2KS-85721-00-00
WIRE, LEAD
$307.49¢153 743
1
