SHIFT SHAFT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

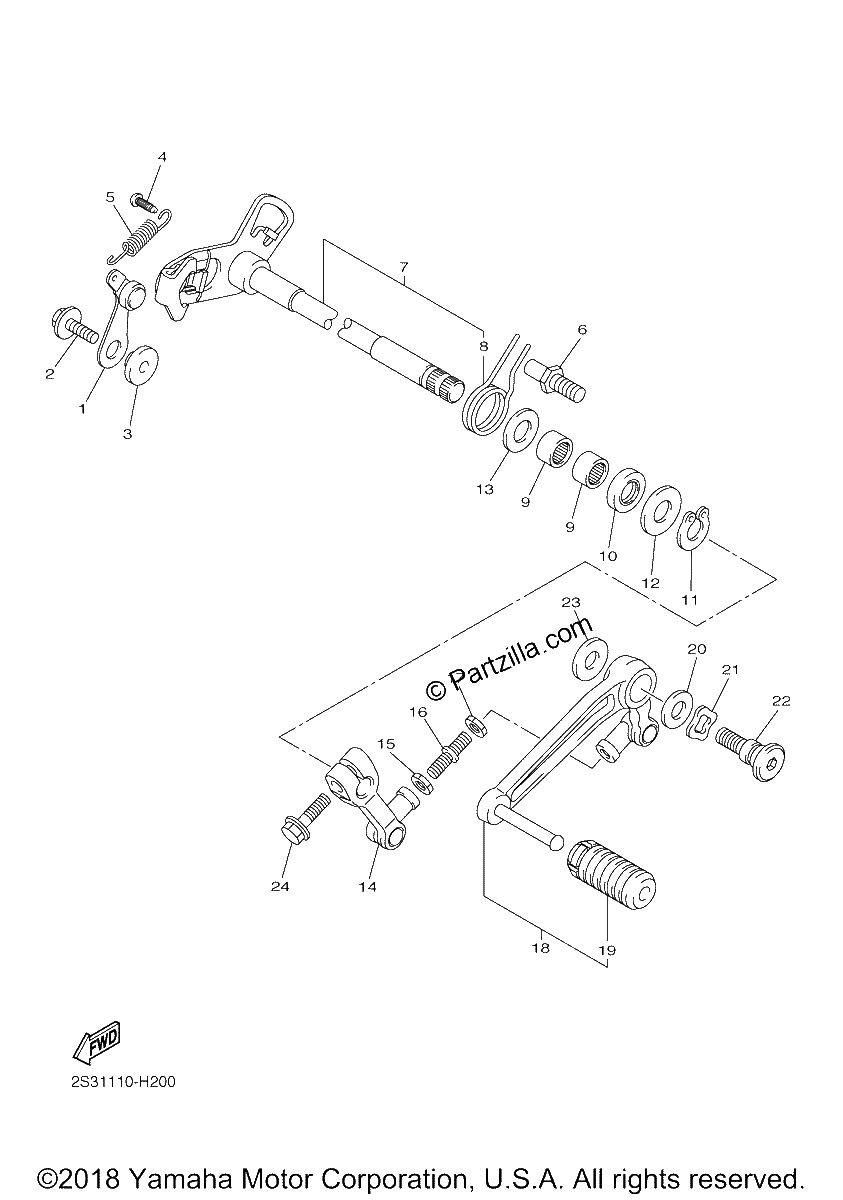

Diagrama de SHIFT SHAFT

Repuestos

#1
2S3-18140-00-00
STOPPER LEVER ASSY
$29.74¢14 869
1
#2
90159-06028-00
SCREW, WITH WASHER
$7.71¢3 856
1
#3
4NX-18175-00-00
SPACER
$18.56¢9 281
1
#4
132-16346-00-00
HOOK, SPRING
$10.39¢5 194
1
#5
90506-15002-00
SPRING, TENSION
$3.94¢1 969
1
#6
5VK-18127-00-00
STOPPER, SCREW
$12.98¢6 488
1
#7
2S3-18101-02-00
SHIFT SHAFT ASSY
$105.40¢52 700
1
#8
90508-32141-00
SPRING, TORSION
$8.24¢4 119
1
#9
93317-11295-00
BEARING
$47.73¢23 863
1
#10
93102-12106-00
OIL SEAL,SD-TYPE
$12.06¢6 031
1
#11
99002-10600-00
CIRCLIP
$7.48¢3 738
1
#12
90201-12575-00
WASHER, PLATE
$7.34¢3 669
1
#13
90201-127E1-00
WASHER, PLATE
$4.40¢2 200
1
#14
2S3-18112-00-00
ARM, SHIFT
$99.77¢49 887
1
#15
95380-06700-00
NUT
$7.34¢3 669
1
#16
2S3-18115-00-00
ROD, SHIFT
$20.91¢10 456
1
#17
90170-06228-00
NUT (COUNTER CLOCKWISE)
$7.81¢3 906
1
#18
2S3-18110-00-00
SHIFT PEDAL ASSY
$167.21¢83 606
1
#19
2S3-18113-00-00
COVER, SHIFT PEDAL
$14.78¢7 388
1
#20
90201-12013-00
WASHER, PLATE
$7.52¢3 762
1
#21
90206-12074-00
WASHER,WAVE
$8.31¢4 156
1
#22
2S3-27217-10-00
BOLT
$15.59¢7 794
1
#23
90201-080H1-00
WASHER, PLATE
$4.56¢2 281
1
#24
95022-06020-00
BOLT, FLANGE
$3.96¢1 981
1
