CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

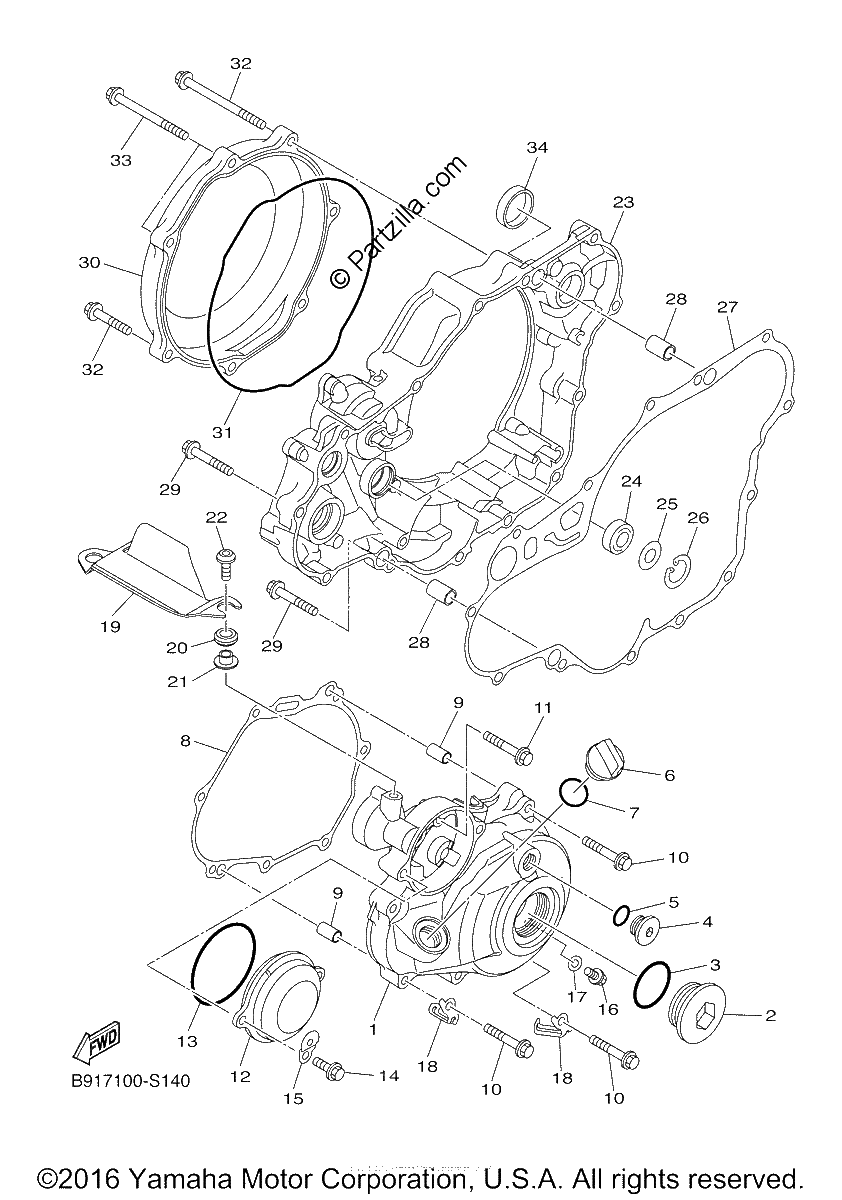

Diagrama de CRANKCASE COVER 1

Repuestos

#1
2GC-15411-00-00
COVER, CRANKCASE 1
$156.78¢78 388
1
#2
90340-36002-00
PLUG, STRAIGHT SCREW
$15.94¢7 969
1
#3
93210-357A3-00
O-RING
$0.59¢294
1
#4
90340-14011-00
PLUG, STRAIGHT SCREW
$23.49¢11 744
1
#5
93210-14369-00
O-Ring
$6.91¢3 456
1
#6
3Y1-15363-10-00
PLUG, OIL
$20.35¢10 175
1
#7
93210-19123-00
O-Ring
$8.24¢4 119
1
#8
1SL-15451-00-00
GASKET, CRANKCASE COVER 1 | INCL. IN BOTTOM END GASKET KIT
$13.29¢6 644
1
#9
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#10
95022-06030-00
BOLT, FLANGE
$1.68¢838
1
#11
95022-06020-00
BOLT, FLANGE
$3.96¢1 981
1
#12
5TJ-1549B-30-00
COVER ASSY 2
$101.54¢50 769
1
#13
93210-58346-00
O-RING
$10.77¢5 387
1
#14
95022-06014-00
BOLT, FLANGE
$3.14¢1 569
1
#15
2GC-15199-00-00
BRACKET
$5.19¢2 594
1
#16
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#17
90430-06014-00
GASKET
$8.25¢4 125
1
#18
90465-08062-00
CLAMP
$4.40¢2 200
1
#19
2GC-15436-00-00
COVER, STARTING MOTOR
$7.21¢3 606
1
#20
90480-12581-00
GROMMET
$5.54¢2 769
1
#21
90387-06142-00
COLLAR
$4.59¢2 294
1
#22
90111-06116-00
BOLT, HEX. SOCKET BUTTON
$6.81¢3 406
1
#23
1SL-15431-00-00
COVER, CRANKCASE 3
$254.96¢127 481
1
#24
93101-14164-00
OIL SEAL
$11.55¢5 775
1
#25
90201-15701-00
WASHER, PLATE (T=1.0)
$7.34¢3 669
1
#26
99009-22500-00
CIRCLIP
$7.35¢3 675
1
#27
1SL-15462-00-00
GASKET, CRANKCASE COVER 3 | INCL. IN BOTTOM END GASKET KIT
$32.63¢16 313
1
#28
99530-12016-00
PIN, DOWEL
$4.91¢2 456
1
#29
95022-06030-00
BOLT, FLANGE
$1.68¢838
1
#30
33D-15415-10-00
COVER, 1
$359.52¢179 763
1
#31
33D-15453-00-00
GASKET | INCL. IN BOTTOM END GASKET KIT
$29.36¢14 681
1
#32
95022-06025-00
BOLT, FLANGE
$1.75¢875
1
#33
95022-06070-00
BOLT, FLANGE
$2.40¢1 200
1
#34
90338-30096-00
PLUG,SPEC'L SHAPE
$13.71¢6 856
1
