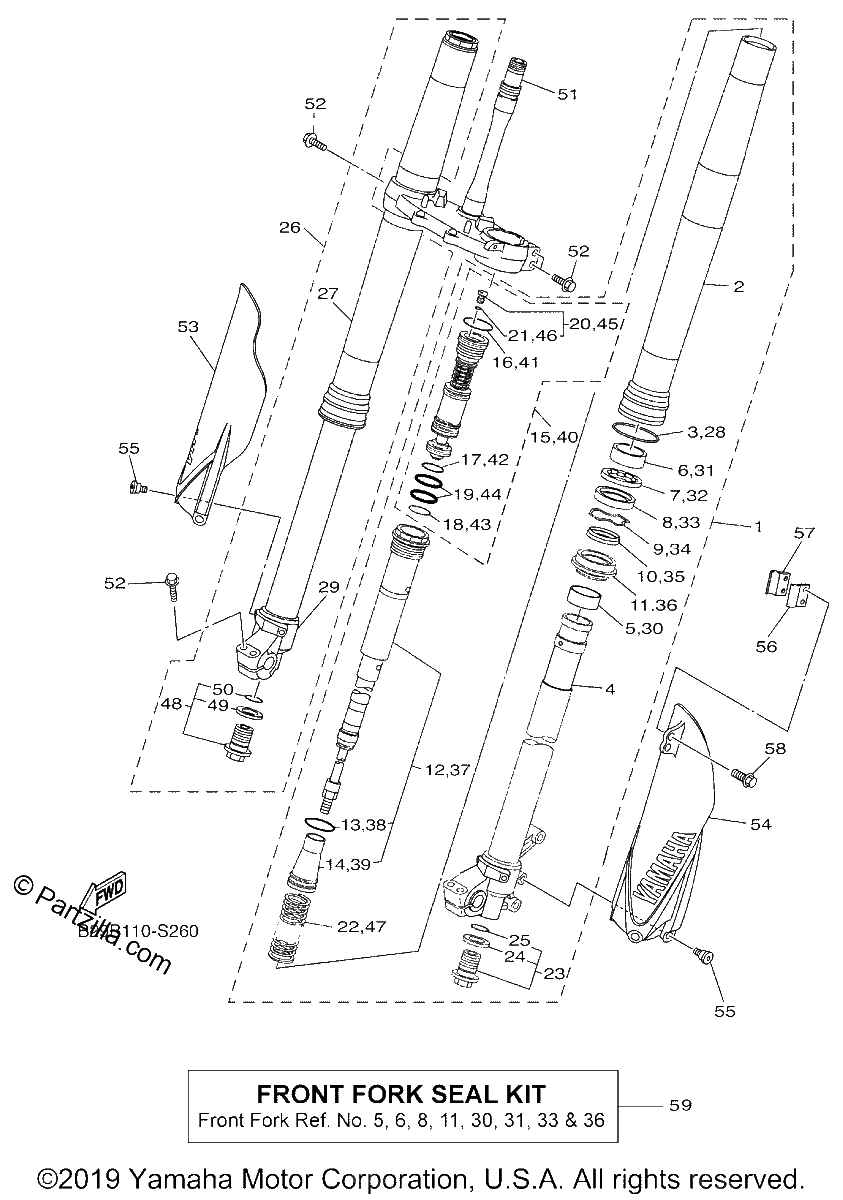

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$1366.19¢683 094
#2
TUBE, OUTER
$822.24¢411 119
#3
RING, SNAP
$4.58¢2 289
#4
INNER TUBE COMP. 2
$448.43¢224 216
#5
PISTON, FRONT FORK
$22.67¢11 333
#6
METAL, SLIDE 1
$23.02¢11 511
#7
WASHER, OIL SEAL
$11.60¢5 802
#8
Oil Seal
$21.75¢10 873
#9
RING, SNAP
$7.04¢3 519
#10
SCRAPER
$18.14¢9 068
#11
SEAL, DUST
$21.11¢10 557
#12
CYLINDER COMP., front fork
$625.59¢312 794
#13
O-RING
$3.51¢1 754
#14
SEAT, SPRING UPPER
$77.73¢38 864
#15
VALVE COMP.
$338.12¢169 061
#16
O-RING
$3.00¢1 501
#17
O-RING
$7.04¢3 519
#18
O-RING
$6.51¢3 254
#19
GASKET
$8.14¢4 071
#20
AIR VALVE COMP.
$21.98¢10 988
#21
O-RING
$3.00¢1 501
#22
SPRING, FRONT FORK
$115.71¢57 857
#23
BOLT, CAP
$75.81¢37 904
#24
GASKET
$10.43¢5 215
#25
GASKET
$4.25¢2 128
#26
FRONT FORK ASSY (R.H)
$1366.19¢683 094
#27
TUBE, OUTER
$822.24¢411 119
#28
RING, SNAP
$4.58¢2 289
#29
INNER TUBE COMP. 1
$503.46¢251 729
#30
PISTON, FRONT FORK
$22.67¢11 333
#31
METAL, SLIDE 1
$23.02¢11 511
#32
WASHER, OIL SEAL
$11.60¢5 802
#33
Oil Seal
$21.75¢10 873
#34
RING, SNAP
$7.04¢3 519
#35
SCRAPER
$18.14¢9 068
#36
SEAL, DUST
$21.11¢10 557
#37
CYLINDER COMP., front fork
$625.59¢312 794
#38
O-RING
$3.51¢1 754
#39
SEAT, SPRING UPPER
$77.73¢38 864
#40
VALVE COMP.
$338.12¢169 061
#41
O-RING
$3.00¢1 501
#42
O-RING
$7.04¢3 519
#43
O-RING
$6.51¢3 254
#44
GASKET
$8.14¢4 071
#45
AIR VALVE COMP.
$21.98¢10 988
#46
O-RING
$3.00¢1 501
#47
SPRING, FRONT FORK
$115.71¢57 857
#48
BOLT, CAP
$75.81¢37 904
#49
GASKET
$10.43¢5 215
#50
GASKET
$4.25¢2 128
#51
UNDER BRACKET COMP.
$557.74¢278 869
#52
BOLT, FLANGE
$6.32¢3 162
#53
PROTECTOR 2
$15.21¢7 607
#54
PROTECTOR 1
$15.21¢7 607
#55
BOLT
$3.61¢1 805
#56
CLAMP
$18.14¢9 068
#57
CLAMP
$24.83¢12 414
#58
BOLT, FLANGE
$4.65¢2 323
#59
FORK SEALS KIT
$63.50¢31 751
