REAR BRAKE CALIPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

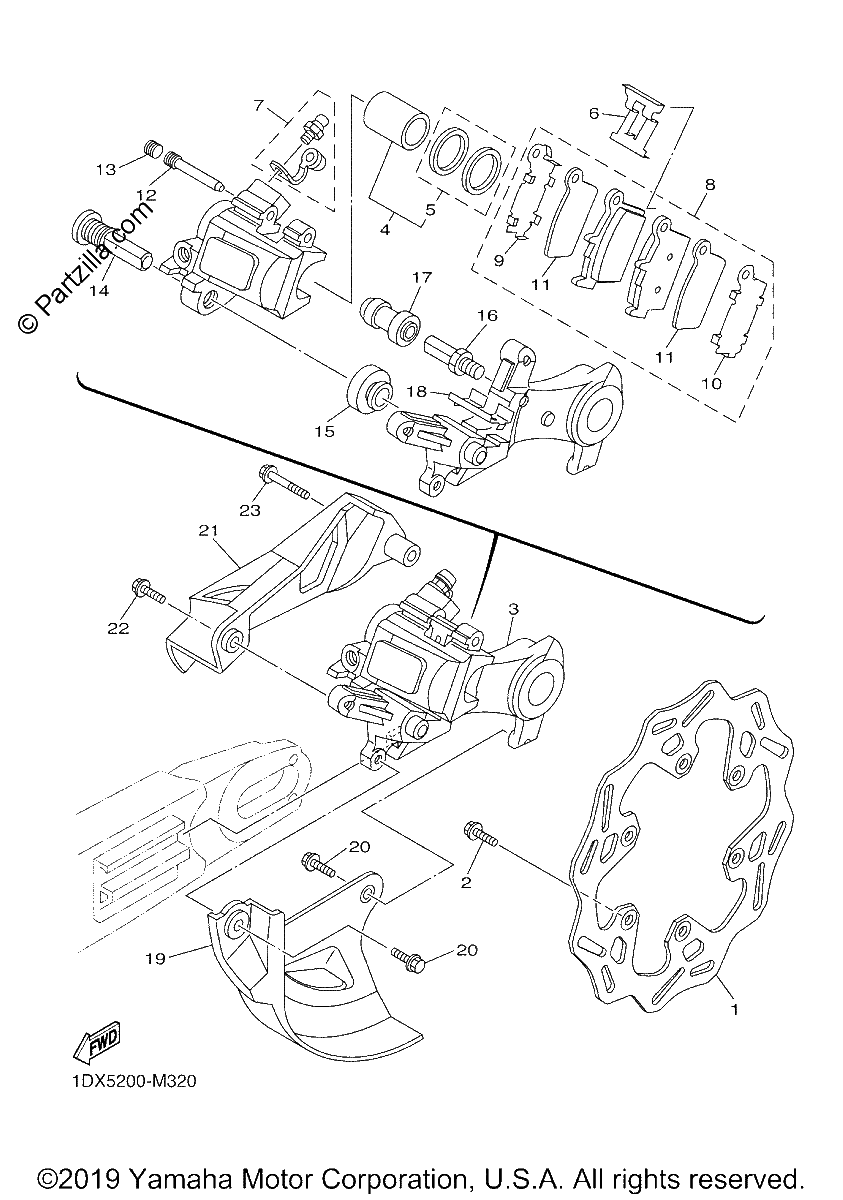

Diagrama de REAR BRAKE CALIPER

Repuestos

#1
B11-2582W-00-00
DISK, REAR BRAKE 2 (replaces 2S2-2582W-70-00)
$189.17¢94 587
1
#2
90105-06109-00
BOLT, FLANGE
$6.89¢3 444
1
#3
1C3-2580W-52-00
CALIPER ASSY, REAR 2
$432.19¢216 097
1
#4
5UN-W0057-50-00
PISTON ASSY, CALIPER
$58.95¢29 474
1
#5
5UN-W0047-50-00
Caliper Seal Kit
$15.65¢7 826
1
#6
5DH-25919-50-00
SUPPORT,PAD
$19.43¢9 717
1
#7
36Y-W0048-00-00
BLEED SCREW KIT
$9.33¢4 663
1
#8
1C3-W0046-50-00
BRAKE PAD KIT 2
$48.71¢24 357
1
#9
5UN-25828-60-00
SHIM, CALIPER
$11.26¢5 629
1
#10
5UN-25827-60-00
SHIM, CALIPER
$14.11¢7 055
1
#11
5UN-22898-60-00
INSULATOR, HEAT
$18.24¢9 119
1
#12
8CR-25924-00-00
PIN, PAD
$12.35¢6 176
1
#13
5DH-25916-00-00
PLUG
$8.14¢4 071
1
#14
5DH-25914-50-00
PIN, SLIDE
$20.64¢10 321
1
#15
3JD-25917-00-00
BOOT, CALIPER
$8.26¢4 129
1
#16
5UN-25914-00-00
PIN, SLIDE
$11.99¢5 997
1
#17
1UY-25937-51-00
BOOT 2
$13.48¢6 739
1
#18
5UN-25913-00-00
Retainer
$12.26¢6 129
1
#19
17D-25718-50-00
PROTECTOR, DISK BRAKE
$26.25¢13 127
1
#20
90105-06110-00
Bolt, Flange
$6.87¢3 433
1
#21
17D-27491-50-00
Protector
$21.25¢10 626
1
#22
90105-06110-00
Bolt, Flange
$6.87¢3 433
1
#23
90105-06111-00
Bolt, Flange
$6.75¢3 375
1
