REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

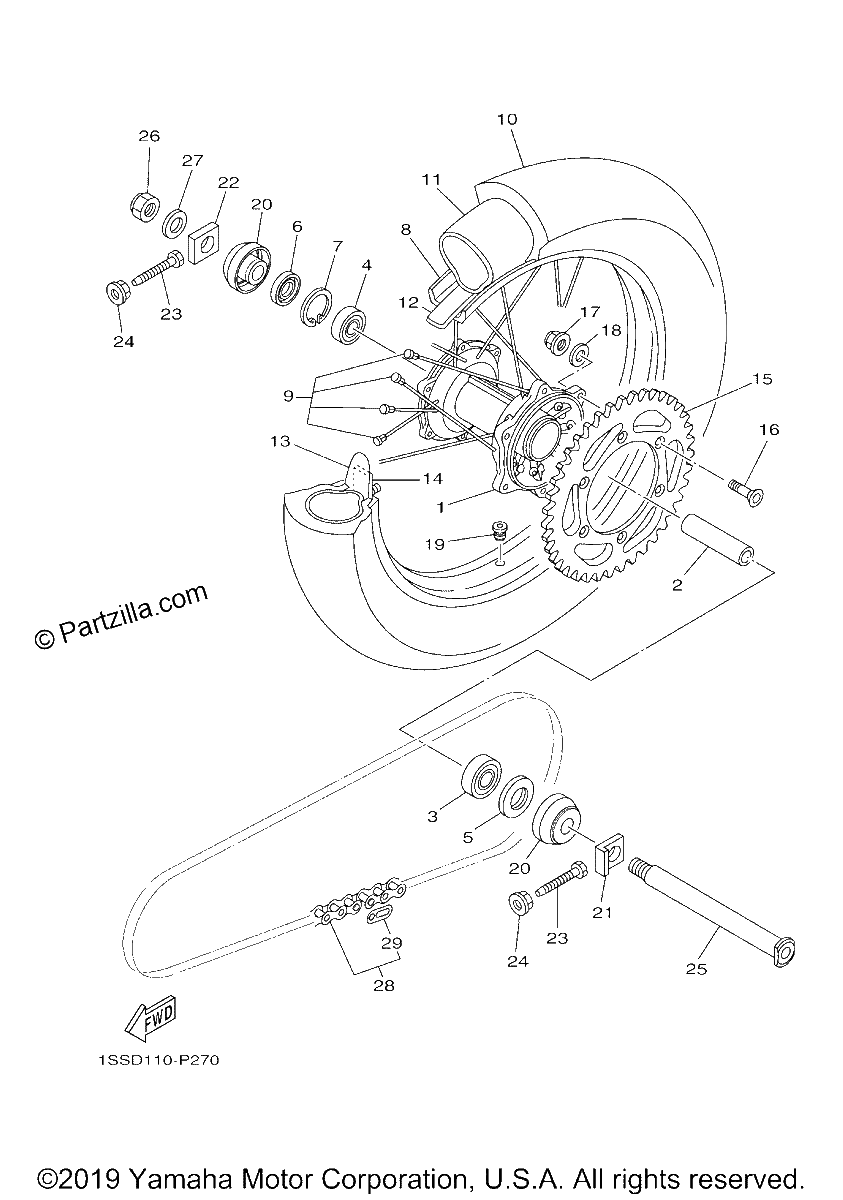

Diagrama de REAR WHEEL

Repuestos

#1
5ET-25311-00-00
HUB, REAR
$318.70¢159 350
1
#2
5ET-25317-00-00
SPACER, BEARING
$51.06¢25 531
1
#3
93306-27212-00
BEARING
$78.49¢39 244
1
#4
93306-07202-00
BEARING
$40.19¢20 094
1
#5
93106-30001-00
OIL SEAL
$11.92¢5 962
1
#6
93106-30045-00
OIL SEAL
$9.45¢4 725
1
#7
99009-45500-00
CIRCLIP
$2.97¢1 487
1
#8
94418-19038-00
RIM (1.85-19)
$327.44¢163 719
1
#9
5HD-25304-00-00
SPOKE SET, REAR
$274.94¢137 469
1
#10
94110-19028-00
TIRE (100/90-19 57
$187.49¢93 744
1
#11
94210-19224-00
TUBE (100/90-19 M/C TR4 BTL) | UR DUNLOP
$35.65¢17 825
1
#12
94327-19111-00
BAND, RIM (2.00-19) | INOUE
$14.90¢7 450
1
#13
4XM-25394-00-00
SPACER,BEAD
$63.74¢31 869
1
#14
4XM-25364-00-00
Damper
$7.91¢3 956
1
#15
17D-25448-50-00
SPROCKET, DRIVEN (48T)
$108.60¢54 300
1
#15
17D-25447-50-00
SPROCKET, DRIVEN (47T)
$85.10¢42 550
1
#15
17D-25451-50-00
SPROCKET, DRIVEN (51T)
$112.49¢56 244
1
#15
17D-25452-50-00
SPROCKET, DRIVEN (52T)
$112.49¢56 244
1
#15
17D-25450-50-00
SPROCKET, DRIVEN (50T)
$95.88¢47 938
1
#15
17D-25449-50-00
SPROCKET, DRIVEN (49T)
$85.10¢42 550
1
#16
90109-08078-00
bolt
$6.14¢3 069
1
#17
90185-08008-00
NUT, SELF-LOCKING
$7.16¢3 581
1
#18
90201-08048-00
WASHER, PLATE
$6.85¢3 425
1
#19
90480-10068-00
GROMMET (replaces 90480-08608-00)
$8.06¢4 031
1
#20
5TJ-2530S-80-00
COLLAR ASSY
$34.76¢17 381
1
#21
1C3-25388-H0-00
PULLER, CHAIN 1
$24.16¢12 081
1
#22
1C3-25389-H0-00
PULLER, CHAIN 2
$29.69¢14 844
1
#23
90101-08006-00
bolt
$8.01¢4 006
1
#24
90179-08019-00
Nut
$6.23¢3 113
1
#25
1C3-25381-90-00
AXLE, WHEEL
$97.96¢48 981
1
#26
90185-20002-00
NUT, SELF-LOCKING
$27.00¢13 500
1
#27
90201-20020-00
WASHER, PLATE
$9.14¢4 569
1
#28
9Y582-36111-00
CHAIN (replaces 9Y582-28111-00)
$177.56¢88 781
1
#29
94682-28001-00
JOINT, CHAIN
$7.65¢3 825
1
