CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

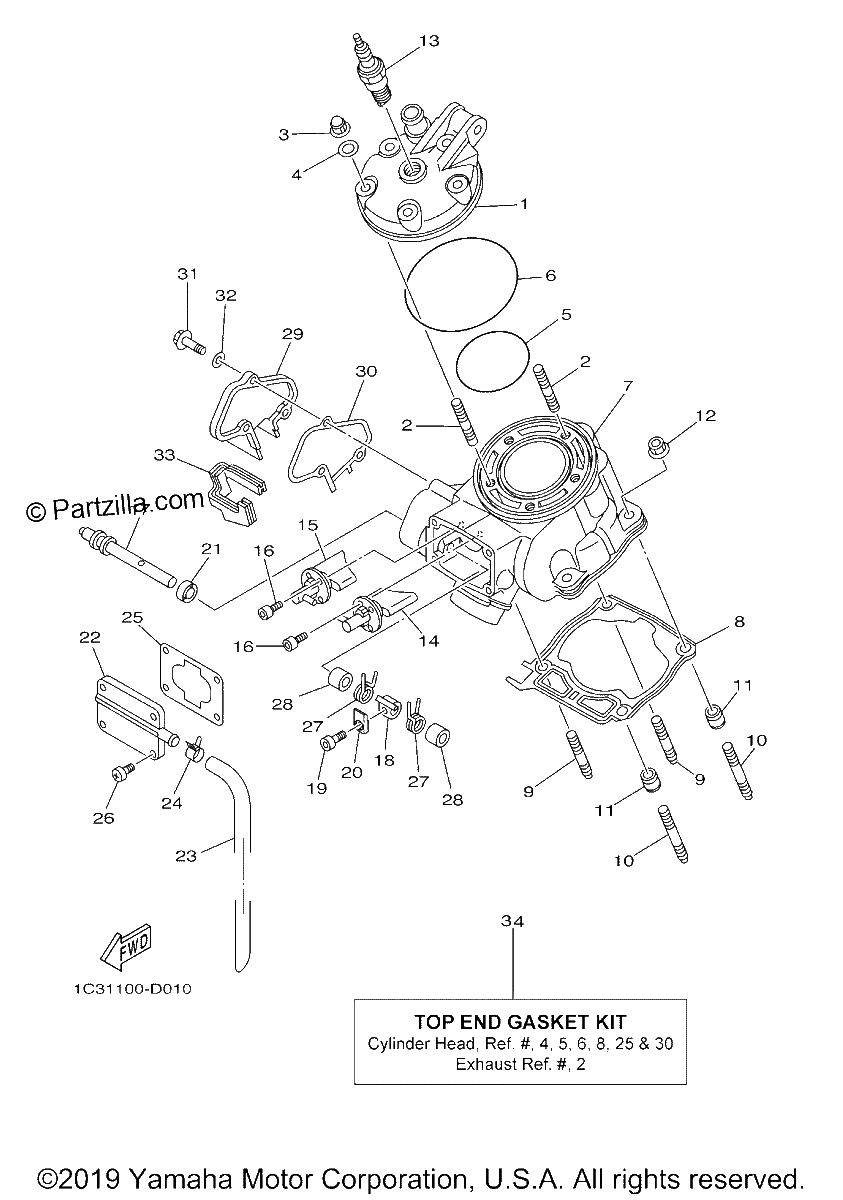

Diagrama de CYLINDER HEAD

Repuestos

#1
1C3-11111-11-00
HEAD, CYLINDER 1
$246.19¢123 094
1
#2
90116-08027-00
BOLT, STUD
$4.28¢2 138
1
#3
90176-08005-00
NUT, CROWN
$2.44¢1 219
1
#4
90201-080L8-00
WASHER, PLATE
$3.34¢1 669
1
#5
93210-63442-00
O-Ring
$6.88¢3 438
1
#6
93210-90785-00
O-Ring
$10.93¢5 463
1
#7
1C3-11311-21-00
CYLINDER 1 (replaces 1C3-11311-20-00)
$791.95¢395 975
1
#8
1C3-11351-00-00
Gasket, Cylinder
$20.78¢10 388
1
#9
90116-08031-00
BOLT, stud
$9.91¢4 956
1
#10
90116-08028-00
BOLT, stud
$8.09¢4 044
1
#11
99590-10114-00
PIN, DOWEL
$5.25¢2 625
1
#12
90179-08019-00
Nut
$6.23¢3 113
1
#13
BR9-EIX00-00-00
BR9EIX NGK 4PK (replaces 94702-00193-00)
$17.99¢8 994
1
#14
1C3-1131D-01-00
VALVE ASSY (replaces 1C3-1131D-00-00)
$397.76¢198 881
1
#15
1C3-1132D-01-00
VALVE ASSY 2 (replaces 1C3-1132D-00-00)
$330.45¢165 225
1
#16
91312-05012-00
BOLT (replaces 90110-05032-00)
$3.02¢1 513
1
#17
5HD-1131V-00-00
SHAFT 1
$87.00¢43 500
1
#18
4SS-11832-00-00
LEVER, LINK
$80.38¢40 188
1
#19
91317-04010-00
BOLT (replaces 91312-04010-00)
$8.22¢4 113
1
#20
5UN-11395-00-00
HOLDER
$53.90¢26 950
1
#21
93104-08040-00
OIL SEAL
$14.56¢7 281
1
#22
4SS-1131M-01-00
Cover
$91.25¢45 625
1
#23
4JY-11166-00-00
PIPE,BREATHER 1
$21.26¢10 631
1
#24
90467-14117-00
CLIP(MG5) (replaces 90467-13062-00)
$8.22¢4 113
1
#25
1C3-11354-00-00
Gasket
$5.22¢2 613
1
#26
98902-05016-00
SCREW, BIND
$1.46¢731
1
#27
90508-16134-00
Spring, Torsion
$5.90¢2 950
1
#28
90387-08785-00
Collar
$7.35¢3 675
1
#29
1C3-11992-00-00
HOUSING 2
$69.11¢34 556
1
#30
1C3-11993-00-00
Gasket
$8.49¢4 244
1
#31
97095-05016-00
BOLT
$1.80¢900
1
#32
92990-05600-00
WASHER, PLATE
$0.66¢331
1
#33
1C3-11995-00-00
SEAL, HOUSING
$15.13¢7 563
1
#34
1C3-W0001-00-00
Top End Gasket Kit
$55.79¢27 894
1
