FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

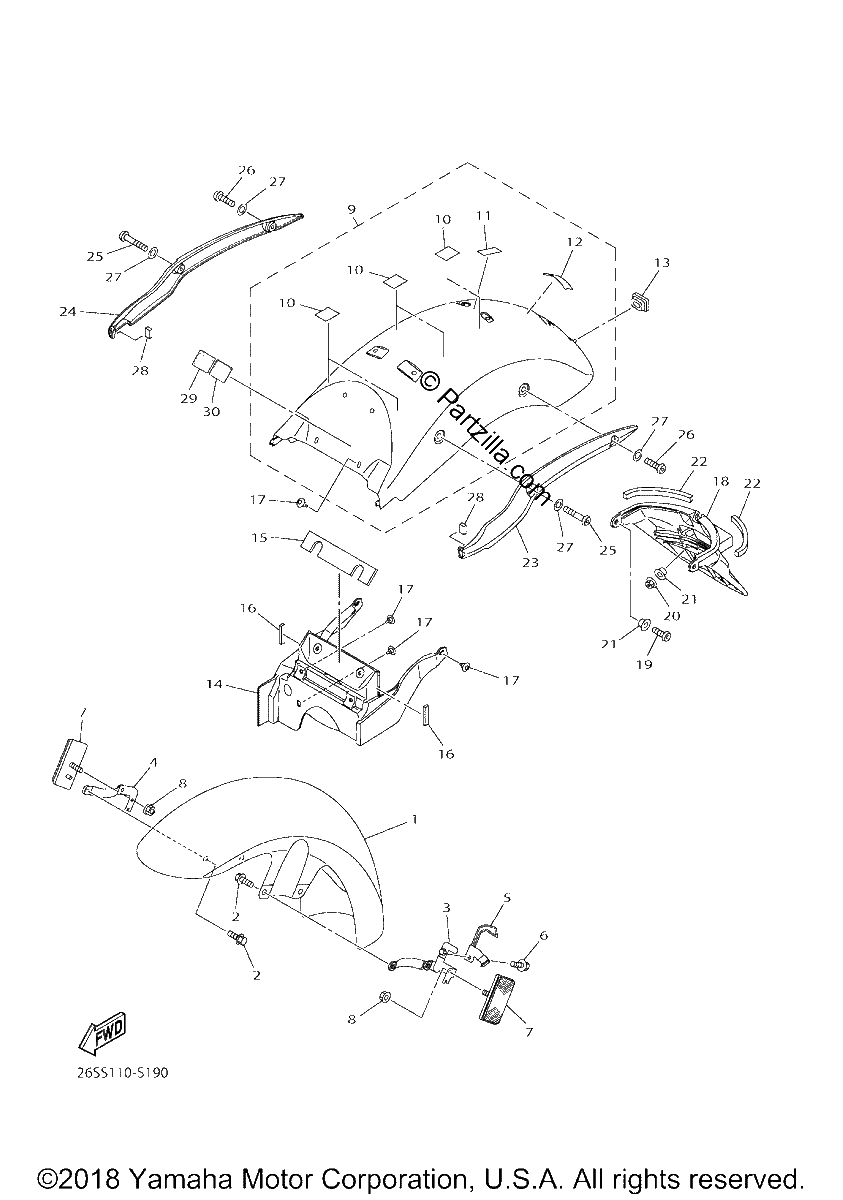

Diagrama de FENDER

Repuestos

#1
5S7-21510-01-P4
FRONT FENDER COMP.
$550.08¢275 038
1
#2
95812-08020-00
Bolt, Flange
$2.01¢1 006
1
#3
5S7-21587-00-00
STAY 1
$30.15¢15 075
1
#4
5S7-21588-00-00
STAY 2
$22.68¢11 338
1
#5
3D8-21597-00-00
HOLDER, WIRE 1
$28.39¢14 194
1
#6
95027-06010-00
BOLT,FLANGE(4MY)
$2.95¢1 475
1
#7
11H-85110-01-00
REFLECTOR ASSY
$24.93¢12 463
1
#8
95707-05500-00
NUT, FLANGE
$7.35¢3 675
1
#9
5S7-W2161-01-P4
REAR FENDER COMP.
$907.49¢453 744
1
#10
5PX-21669-01-00
SEAL
$11.81¢5 906
1
#11
5S7-21669-00-00
SEAL
$9.53¢4 763
1
#12
3WF-2153E-70-00
EMBLEM, YAMAHA
$5.34¢2 669
1
#13
90480-13027-00
GROMMET
$3.83¢1 913
1
#14
5S7-21629-00-P4
GUARD, MUD
$115.34¢57 669
1
#15
5S7-21638-00-00
DAMPER 1
$2.05¢1 025
1
#16
5S7-21639-00-00
DAMPER 2
$0.96¢481
1
#17
90269-07077-00
RIVET
$8.25¢4 125
1
#18
5S7-2162R-00-00
FENDER 2
$39.44¢19 719
1
#19
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
#20
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#21
90387-07717-00
COLLAR
$7.34¢3 669
1
#22
4DN-21669-00-00
SEAL
$8.03¢4 013
1
#23
5S7-2164F-01-00
STAY 1
$116.15¢58 075
1
#24
5S7-2164G-01-00
STAY 2
$116.15¢58 075
1
#25
92014-08045-00
BOLT, BUTTON HEAD
$7.60¢3 800
1
#26
92014-08030-00
BOLT, BUTTON HEAD
$7.48¢3 738
1
#27
92990-08200-00
WASHER, PLAIN
$2.84¢1 419
1
#28
3MA-24181-00-00
DAMPER, LOCATING 1
$7.77¢3 887
1
#29
5RU-21686-00-00
PLATE, ROUTING 2
$6.10¢3 050
1
#30
34B-21684-00-00
PLATE, ROUTING | FOR CALIFORNIA
$7.95¢3 975
1
