SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

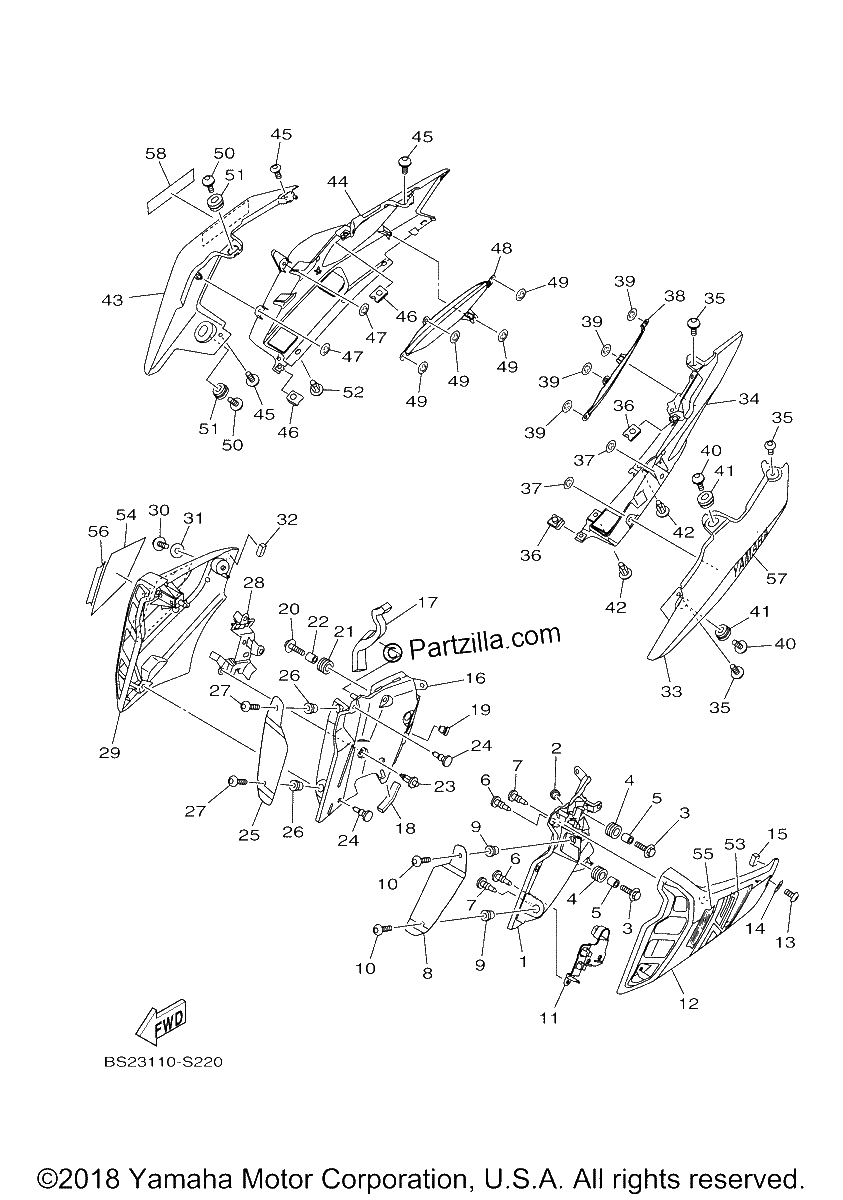

Diagrama de SIDE COVER

Repuestos

#1
BS2-2172E-00-00
STAY, SIDE COVER 1
$74.59¢37 295
1
#2
90338-07180-00
PLUG
$6.22¢3 111
1
#3
90119-06267-00
BOLT, WITH WASHER
$6.75¢3 375
1
#4
90480-14003-00
GROMMET
$6.83¢3 415
1
#5
90387-06057-00
COLLAR
$6.75¢3 375
1
#6
90269-06008-00
RIVET
$8.10¢4 048
1
#7
90269-06001-00
RIVET
$5.93¢2 967
1
#8
BS2-2837N-00-00
GRILL, AIR INTAKE 1
$18.78¢9 390
1
#9
90179-06520-00
NUT
$6.89¢3 444
1
#10
90111-06146-00
BOLT,HEX. SOCKET BUT
$1.08¢541
1
#11
BS2-8336T-00-00
HOLDER 1
$6.92¢3 461
1
#12
BS2-2137W-00-P1
SCOOP, AIR 1
$104.98¢52 492
1
#12
BS2-2137W-00-P0
SCOOP, AIR 1 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$132.24¢66 119
1
#13
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$5.69¢2 846
1
#14
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#15
1RC-21747-00-00
DAMPER
$2.05¢1 023
1
#16
BS2-2174E-00-00
STAY, SIDE COVER 2
$74.59¢37 295
1
#17
90520-10022-00
DAMPER, PLATE
$1.13¢564
1
#18
90520-10003-00
DAMPER, PLATE
$1.02¢512
1
#19
90338-07180-00
PLUG
$6.22¢3 111
1
#20
90119-06267-00
BOLT, WITH WASHER
$6.75¢3 375
1
#21
90480-14003-00
GROMMET
$6.83¢3 415
1
#22
90387-06057-00
COLLAR
$6.75¢3 375
1
#23
90269-06008-00
RIVET
$8.10¢4 048
1
#24
90269-06001-00
RIVET
$5.93¢2 967
1
#25
BS2-2837R-00-00
GRILL, AIR INTAKE 2
$16.08¢8 038
1
#26
90179-06520-00
NUT
$6.89¢3 444
1
#27
90111-06146-00
BOLT,HEX. SOCKET BUT
$1.08¢541
1
#28
BS2-8336U-00-00
HOLDER
$9.27¢4 635
1
#29
BS2-2137X-00-P1
SCOOP, AIR 2
$104.98¢52 492
1
#29
BS2-2137X-00-P0
SCOOP, AIR 2 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$93.09¢46 546
1
#30
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$5.69¢2 846
1
#31
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#32
1RC-21747-00-00
DAMPER
$2.05¢1 023
1
#33
BS2-21711-00-P3
COVER, SIDE 1
$87.43¢43 717
1
#33
BS2-21711-00-P4
COVER, SIDE 1
$88.27¢44 137
1
#33
BS2-21711-00-P1
COVER, SIDE 1
$68.74¢34 368
1
#34
BS2-21731-00-00
COVER, SIDE 3
$66.11¢33 057
1
#35
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$5.69¢2 846
1
#36
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#37
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#38
BS2-2171Y-00-00
GRILLE, SIDE COVER 1
$28.52¢14 260
1
#39
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#40
90109-06037-00
BOLT
$6.46¢3 231
1
#41
90480-01559-00
Grommet
$5.27¢2 633
1
#42
90269-07007-00
RIVET
$3.68¢1 840
1
#43
BS2-21721-00-P1
COVER, SIDE 2
$88.27¢44 137
1
#43
BS2-21721-00-P4
COVER, SIDE 2
$88.27¢44 137
1
#43
BS2-21721-00-P3
COVER, SIDE 2
$88.27¢44 137
1
#44
BS2-21741-00-00
COVER, SIDE 4
$66.11¢33 057
1
#45
90111-05002-00
BOLT, HEX. SOCKET BUTTON
$5.69¢2 846
1
#46
90183-050A6-00
NUT, SPRING
$2.60¢1 299
1
#47
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#48
BS2-2172Y-00-00
GRILLE, SIDE COVER 2
$28.54¢14 272
1
#49
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#50
90109-06037-00
BOLT
$6.46¢3 231
1
#51
90480-01559-00
Grommet
$5.27¢2 633
1
#52
90269-07007-00
RIVET
$3.68¢1 840
1
#53
BS2-2173E-10-00
GRAPHIC 1
$20.02¢10 011
1
#53
BS2-2173E-20-00
GRAPHIC 1
$20.02¢10 011
1
#53
BS2-2173E-30-00
GRAPHIC 1
$20.02¢10 011
1
#54
BS2-2173F-20-00
GRAPHIC 2
$20.02¢10 011
1
#54
BS2-2173F-30-00
GRAPHIC 2
$25.30¢12 650
1
#54
BS2-2173F-10-00
GRAPHIC 2
$25.30¢12 650
1
#55
1RC-21737-60-00
EMBLEM
$9.95¢4 974
1
#55
1RC-21737-50-00
EMBLEM
$9.95¢4 974
1
#55
1RC-21737-40-00
EMBLEM
$11.27¢5 635
1
#56
1RC-21737-40-00
EMBLEM
$11.27¢5 635
1
#56
1RC-21737-60-00
EMBLEM
$9.95¢4 974
1
#56
1RC-21737-50-00
EMBLEM
$9.95¢4 974
1
#57
99244-00080-00
EMBLEM, YAMAHA
$14.98¢7 492
1
#57
99247-00080-00
EMBLEM, YAMAHA
$13.01¢6 503
1
#58
99247-00080-00
EMBLEM, YAMAHA
$13.01¢6 503
1
#58
99244-00080-00
EMBLEM, YAMAHA
$14.98¢7 492
1
