ENGINE COVER S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

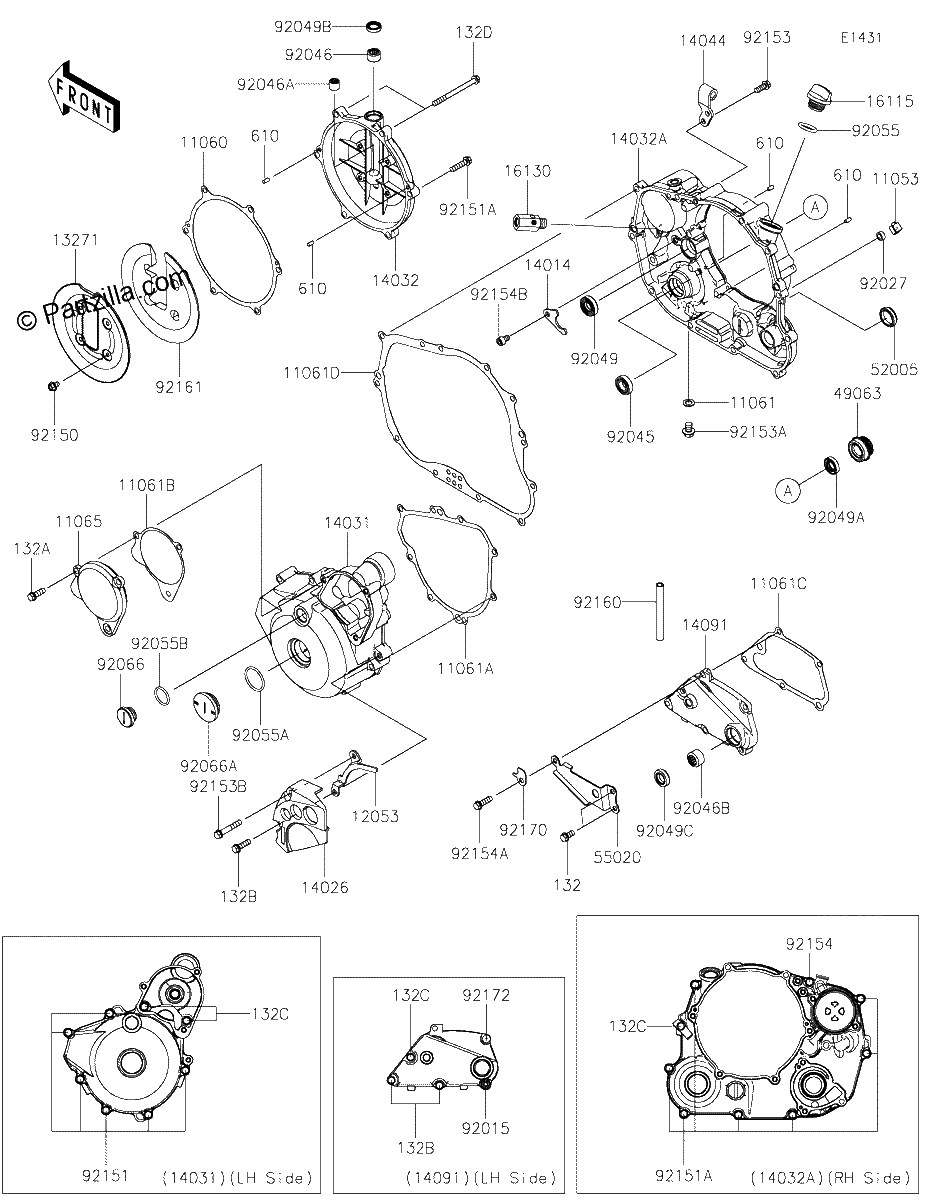

Diagrama de ENGINE COVER S

Repuestos

#132
132BC0612
BOLT-FLANGED-SMALL,6X12
$2.13¢1 063
1
#132A
132BC0618
BOLT-FLANGED-SMALL,6X18
$2.04¢1 019
1
#132B
132BC0620
BOLT-FLANGED-SMALL,6X20
$1.17¢587
1
#132C
132BC0630
BOLT-FLANGED-SMALL,6X30
$2.04¢1 019
1
#132D
132BC0670
BOLT-FLANGED-SMALL,6X70
$4.11¢2 056
1
#610
610A0408
ROLLER,4X8
$4.29¢2 144
1
#11053
11053-1656
BRACKET
$9.59¢4 794
1
#11060
11060-1325
GASKET,CLUTCH COVER OUTER
$15.69¢7 844
1
#11061
11061-0418
GASKET,8.2X14X1.0
$5.79¢2 894
1
#11061A
11061-0891
GASKET,GENERATOR COVER
$21.90¢10 950
1
#11061B
11061-0892
GASKET,CAP
$11.41¢5 706
1
#11061C
11061-0897
GASKET,TRANSMISSION COVER
$13.95¢6 975
1
#11061D
11061-0923
GASKET,CLUTCH COVER INNER
$46.83¢23 413
1
#11065
11065-0274
CAP,GENERATOR COVER
$34.21¢17 106
1
#12053
12053-1337
GUIDE-CHAIN
$14.46¢7 231
1
#13271
13271-1567
PLATE
$55.71¢27 856
1
#14014
14014-0567
PLATE-POSITION
$9.50¢4 750
1
#14026
14026-0027
COVER-CHAIN
$36.52¢18 263
1
#14031
14031-0110
COVER GENERATOR
$213.72¢106 863
1
#14032
14032-0004
COVER CLUTCH
$65.81¢32 906
1
#14032A
14032-0684
COVER-CLUTCH
$205.94¢102 969
1
#14044
14044-1078
HOLDER CABLE
$8.61¢4 306
1
#14091
14091-0019
COVER
$62.33¢31 163
1
#16115
16115-1053
CAP OIL FILLER
$12.09¢6 044
1
#16130
16130-0002
VALVE-ASSY-RELIEF
$28.04¢14 019
1
#49063
49063-1055
SEAL MECHANICAL,WATER
$21.27¢10 638
1
#52005
52005-1009
GAUGE,OIL LEVEL
$18.06¢9 031
1
#55020
55020-1460
GUARD,TRANSMISSION COVER
$16.59¢8 294
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.29¢1 644
1
#92027
92027-1885
COLLAR,6.5X10.5X4.5
$6.35¢3 175
1
#92045
92045-1246
BEARING-BALL,6901
$34.30¢17 150
1
#92046B
92046-1148
BEARING-NEEDLE,HK1312
$18.40¢9 200
1
#92046A
92046-0042
BEARING-NEEDLE
$16.92¢8 462
1
#92046
92046-0034
BEARING-NEEDLE,HK1210FM
$15.46¢7 731
1
#92049B
92049-1262
SEAL-OIL,AG0353-F0
$6.42¢3 213
1
#92049C
92049-1559
SEAL-OIL
$3.52¢1 763
1
#92049A
92049-1228
SEAL OIL,SC 12X22X5
$9.22¢4 613
1
#92049
92049-1191
SEAL-OIL
$26.89¢13 444
1
#92055A
92055-091
RING O,27.7X2.4
$6.09¢3 044
1
#92055B
92055-1146
RING-O,20X2
$8.53¢4 263
1
#92055
92055-012
RING-O
$1.06¢531
1
#92066A
92066-0968
PLUG
$21.49¢10 744
1
#92066
92066-0967
PLUG
$19.01¢9 506
1
#92150
92150-1406
BOLT,5X8
$4.16¢2 081
1
#92151A
92151-1930
BOLT,FLANGED-SMALL,6X25
$2.58¢1 288
1
#92151
92151-1131
BOLT,6X40
$4.84¢2 419
1
#92153B
92153-1351
BOLT,FLANGED,6X35
$6.59¢3 294
1
#92153A
92153-1342
BOLT,FLANGED,8X10
$3.05¢1 525
1
#92153
92153-0695
BOLT,6X16
$2.79¢1 394
1
#92154B
92154-4072
BOLT,SOCKET,6X10
$2.26¢1 131
1
#92154A
92154-3945
BOLT,FLANGED,6X20
$0.99¢494
1
#92154
92154-0490
BOLT,FLANGED,6X25
$1.95¢975
1
#92160
92160-1866
DAMPER
$3.14¢1 569
1
#92161
92161-1182
DAMPER
$55.71¢27 856
1
#92170
92170-1785
CLAMP
$2.91¢1 456
1
#92172
92172-0223
SCREW,6X16
$2.13¢1 063
1
