CAMSHAFT CHAIN

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

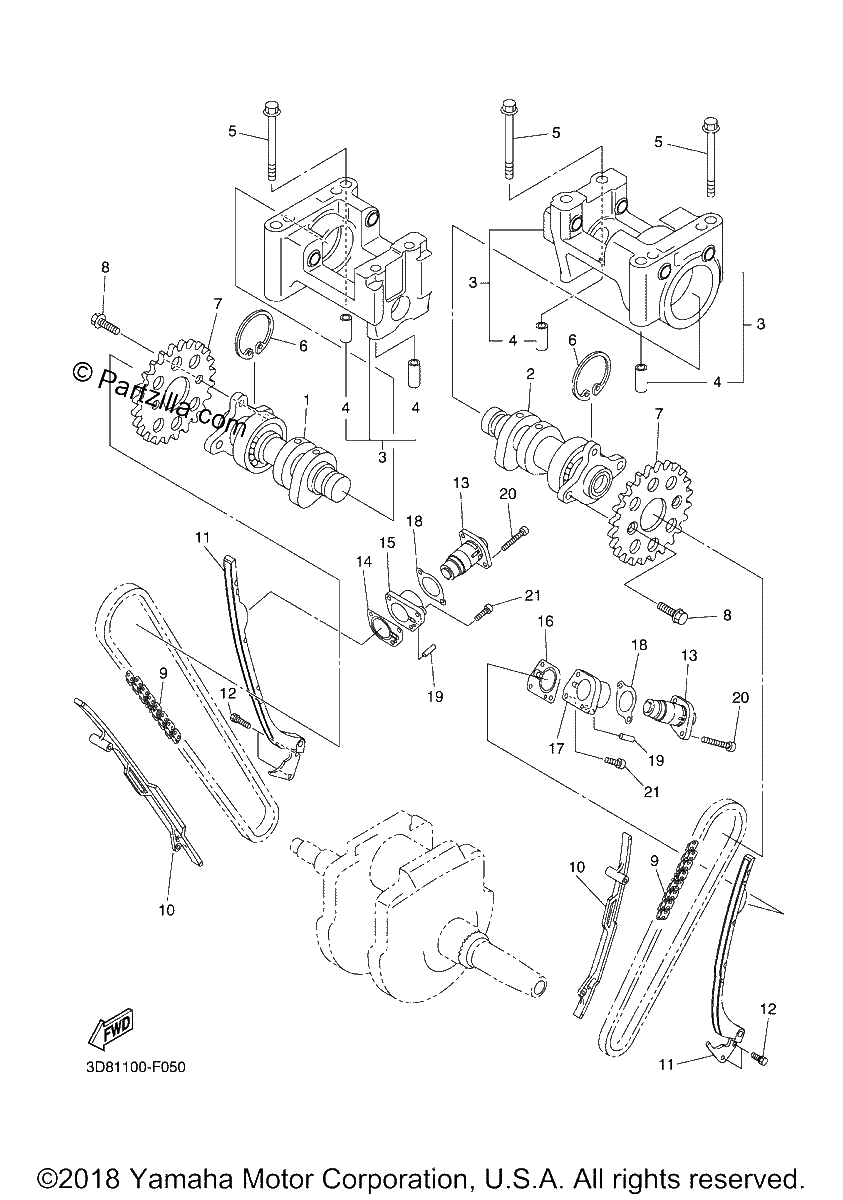

Diagrama de CAMSHAFT CHAIN

Repuestos

#1
3D8-12170-10-00
CAMSHAFT ASSY 1
$266.63¢133 313
1
#2
3D8-12180-10-00
CAMSHAFT ASSY 2
$266.63¢133 313
1
#3
3D8-12194-00-00
CARRIER, CAMSHAFT 1
$223.39¢111 694
1
#4
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#5
90105-06362-00
BOLT, FLANGE
$3.16¢1 581
1
#6
99009-52500-00
CIRCLIP
$12.79¢6 394
1
#7
3D8-12176-00-00
SPROCKET, CAM CHAIN
$45.99¢22 994
1
#8
90105-07004-00
BOLT, FLANGE
$5.95¢2 975
1
#9
94591-57132-00
CHAIN
$44.04¢22 019
1
#10
3D8-12231-00-00
GUIDE, STOPPER 1
$22.71¢11 356
1
#11
3D8-12241-00-00
GUIDE, STOPPER 2
$92.17¢46 088
1
#12
90119-06173-00
BOLT, WITH WASHER
$1.90¢950
1
#13
3D8-12210-10-00
TENSIONER ASSY, CAM CHAIN
$178.39¢89 194
1
#14
3D8-12213-00-00
GASKET, TENSIONER CASE
$8.49¢4 244
1
#15
27D-11445-00-00
SPACER
$26.27¢13 138
1
#16
3D8-12214-00-00
GASKET
$8.58¢4 288
1
#17
27D-11485-00-00
SPACER
$26.27¢13 138
1
#18
3D8-11195-00-00
GASKET
$8.03¢4 013
1
#19
93603-09106-00
PIN, DOWEL
$1.72¢862
1
#20
91312-06045-00
BOLT
$4.00¢2 000
1
#21
91312-06035-00
BOLT, HEXAGON SOCKET (replaces 90110-06208-00)
$2.82¢1 412
1
